swaploader SL-520X - Page 81

VI:Options

6.0.OPT.SL-520X



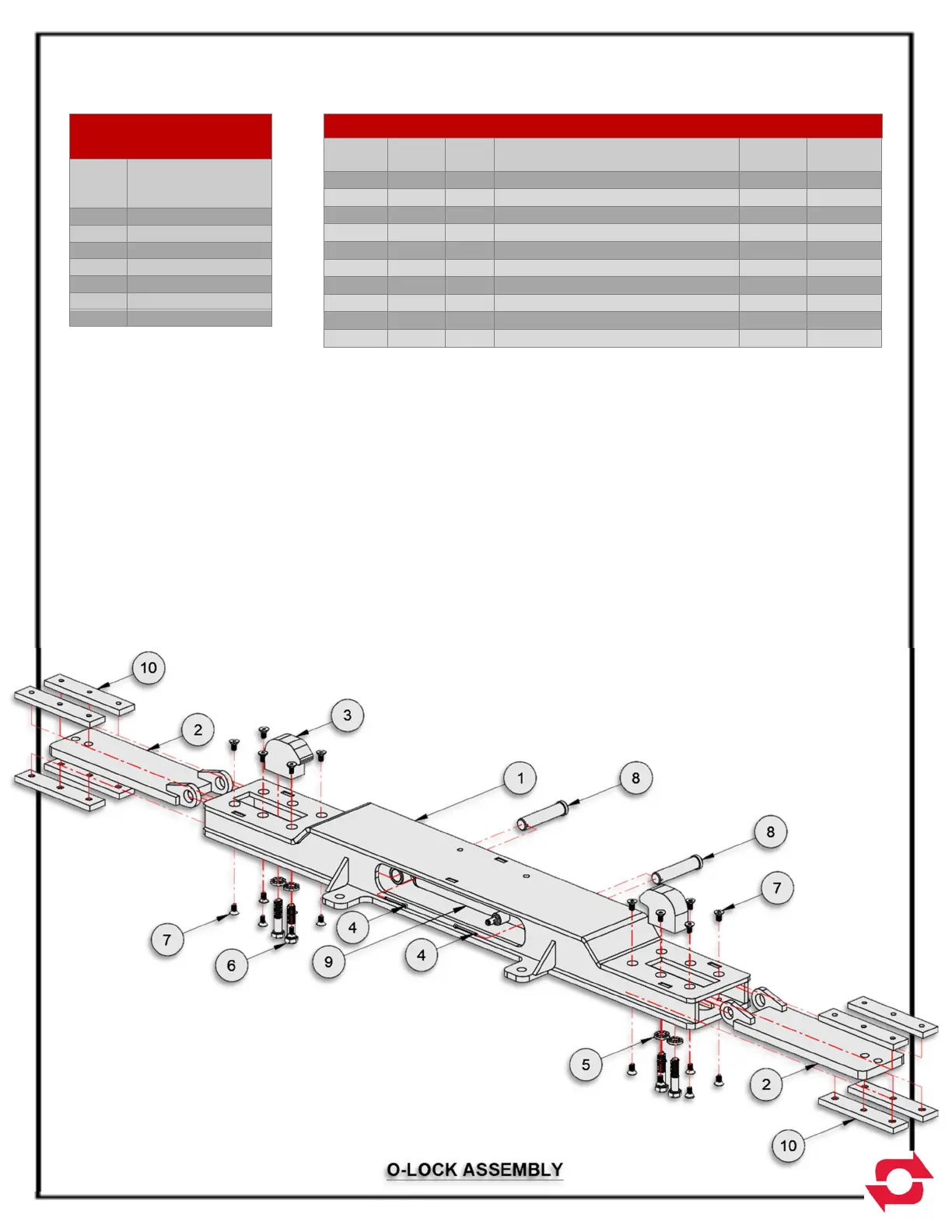

45H39 – O-LOCK ASSEMBLY SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1
45H40 1 Outside Lock Wdmt, X-HD 115.84 115.84
2
45H41 2 Slide Wdmt, Outside Lock 16.32 32.64
3
77H18 2 Prong STD, Outside Lock 3.8 7.6
4
00837 2 Pin, Cotter 3/16 Dia x 2 0.02 0.04
5
01P31 4 Washer, Disc Lock 5/8 Pr 0.03 0.12
6
01P49 4 HHCS 5/8-11 UNC x 2-3/4 Gr8 0.3 1.2
7
02P08 24 FHCS 3/8-16 UNC x 3/4 ZP 0.03 0.72
8
02P10 2 Pin, Clevis 1 x 4-1/2 1.1 2.2
9
23P37 1 Hyd Cyl 1.5x1x6.5, 4750 PSI 14.71 14.71
10
91P53 8 Wear Pad, 1-3/4x1/2x18-1/2 0.3 2.4
HEX HEAD CAP SCREW
TORQUE SPECS
BOLT
SIZE
SAE GR 8
W/ LOCK WASHER
(FT-LBS)
3/8 53
7/16 85
1/2 130
5/8 258
3/4 459
7/8 739
1 1108
Note: Apply Loctite 243 (Blue) to
all bolts.
6-3
