Installation
Step 1, To mount the controller.
Mounting on a DIN rail
If a DIN rail is mounted on the comfort module or at another suitable
location, the controller should be fastened to this rail.
3
2
1
4

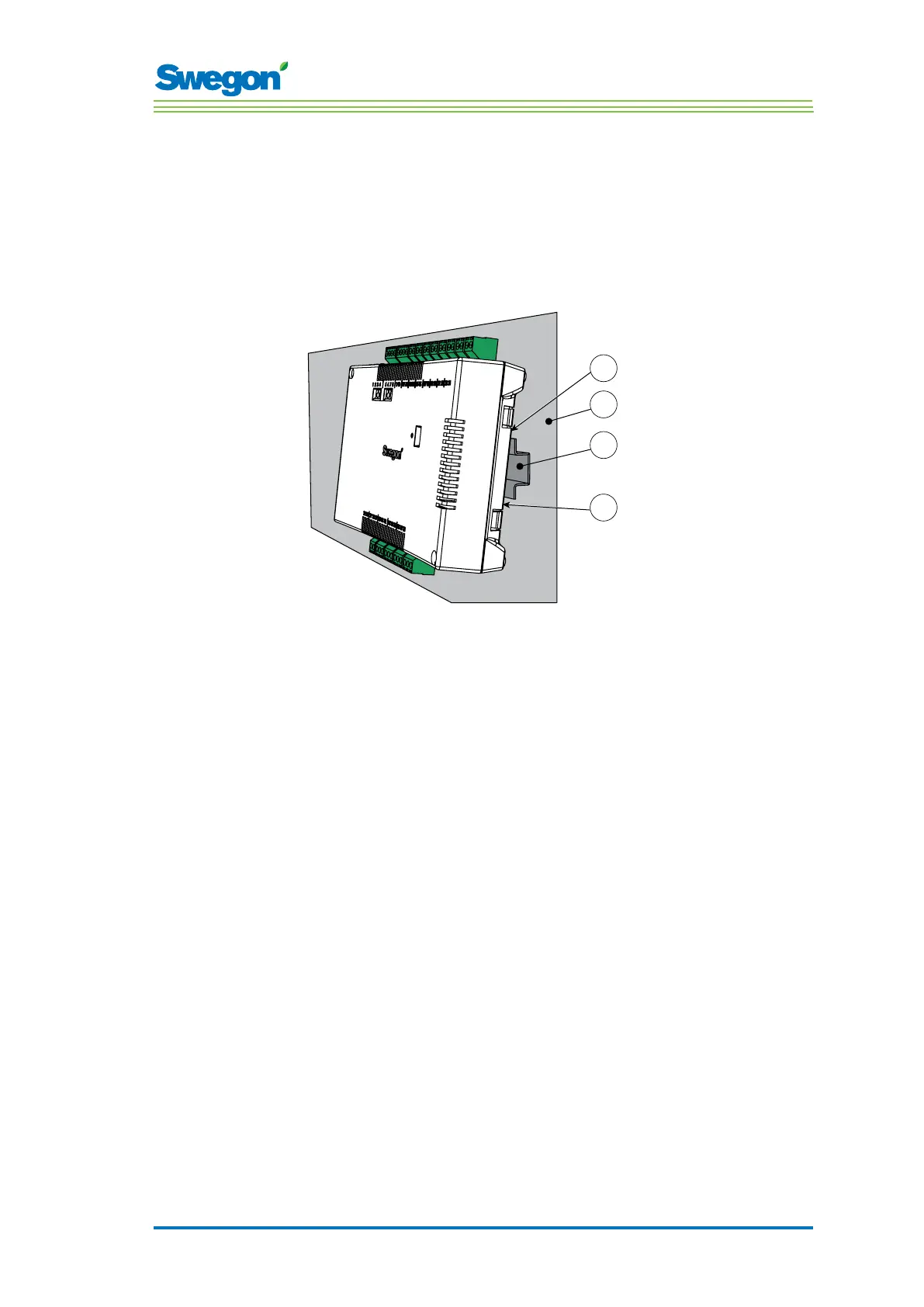

Figur 1. To mount the controller.
Pos 1. Plastic hooks
Pos 2. Supporting surface, for example a comfort module or climate beam.
Pos 3. DIN rail
Pos 4. Snap-on fastener.
1. Fasten the two plastic hooks on the backside of the controller on the
upper control edge on the DIN rail.
2. Press to fasten the snap-on fasteners on the backside of the controller
against the lower control edge on the DIN rail.
