Select “3. Y Scale”and enter 150.
(For “4. Angle”, “5. Mirror”, their settings shall be left as default.)
For “6. X Space”, set the value at 0.
For “7. Y Space”, set the value at 10.
[ Note ]
For the first design to be synthesized, do not make settings for “6. X Space”and “7. Y Space”. Based on the
first design, the positions of the second design’s X Space and Y Space will be changed. It is difficult to set X
Space and Y Space of the second design at the same time. To find appropriate positions, the position setting
shall be conducted several times.

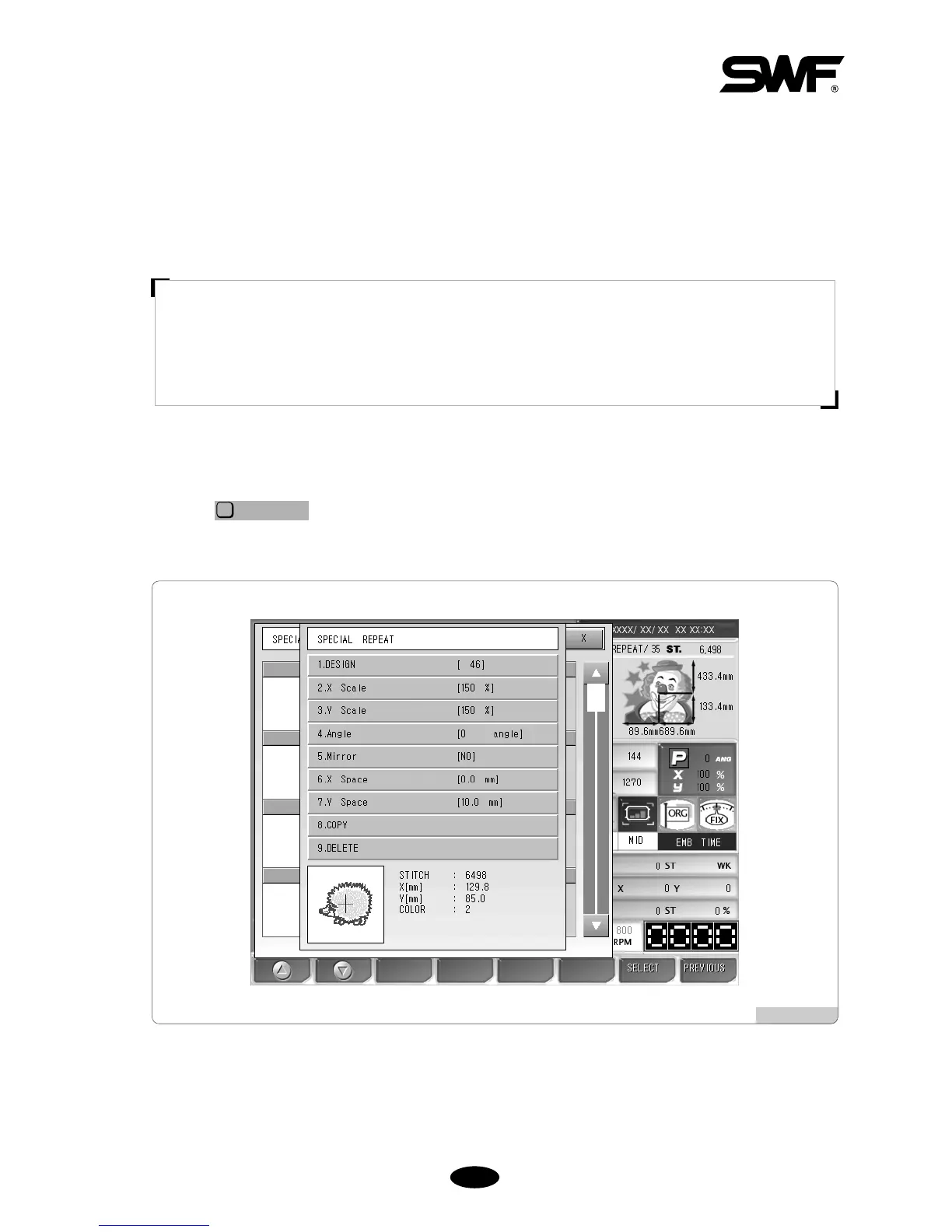

The first design was set as in <Fig. 5.6.2-6>.
Press after making setting in <Fig. 5.6.2-6>.
