5.0 Assembly and Installation
Before the installation and commissioning of this device, please read the safety and warning
information in chapter 1.0 carefully.
5.1 Assembly
The frequency inverter e@syDrive 4425, 4426 is designed for mounting in a cabinet:
use 2 screws (5mm) for mounting on switch board.
Ensure proper electrical connection to protective conductor.
Information for cooling
The frequency inverter is cooled by an integral fan. To ensure effective cooling, at least the following
clearances must be maintained around the frequency inverter:
End surfaces: 50 mm / Longitudinal: 10 mm

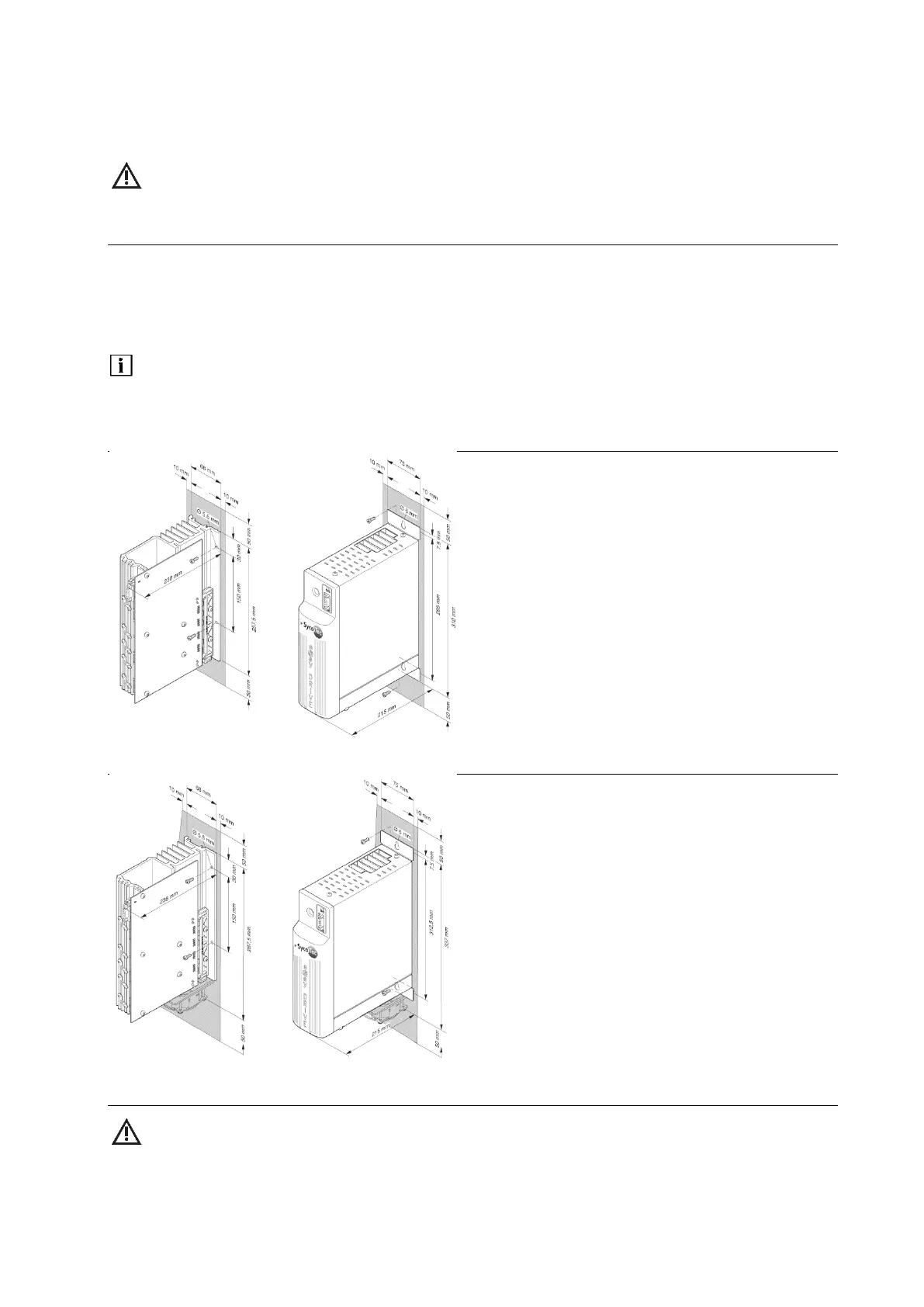

Installation of Frequency Inverter e@syDrive 4425
Installation of Frequency Inverter e@syDrive 4426
5.2 Electrical Installation
When installing the frequency inverter, the applicable safety regulations must be observed. Cut-out
devices for preventing unexpected start-up must be provided. A device for the electrical isolation of the
frequency inverter must be provided unless a mains cable with a plug is used. The power supply must
be provided with 16A power cut-outs with tripping characteristic B.
