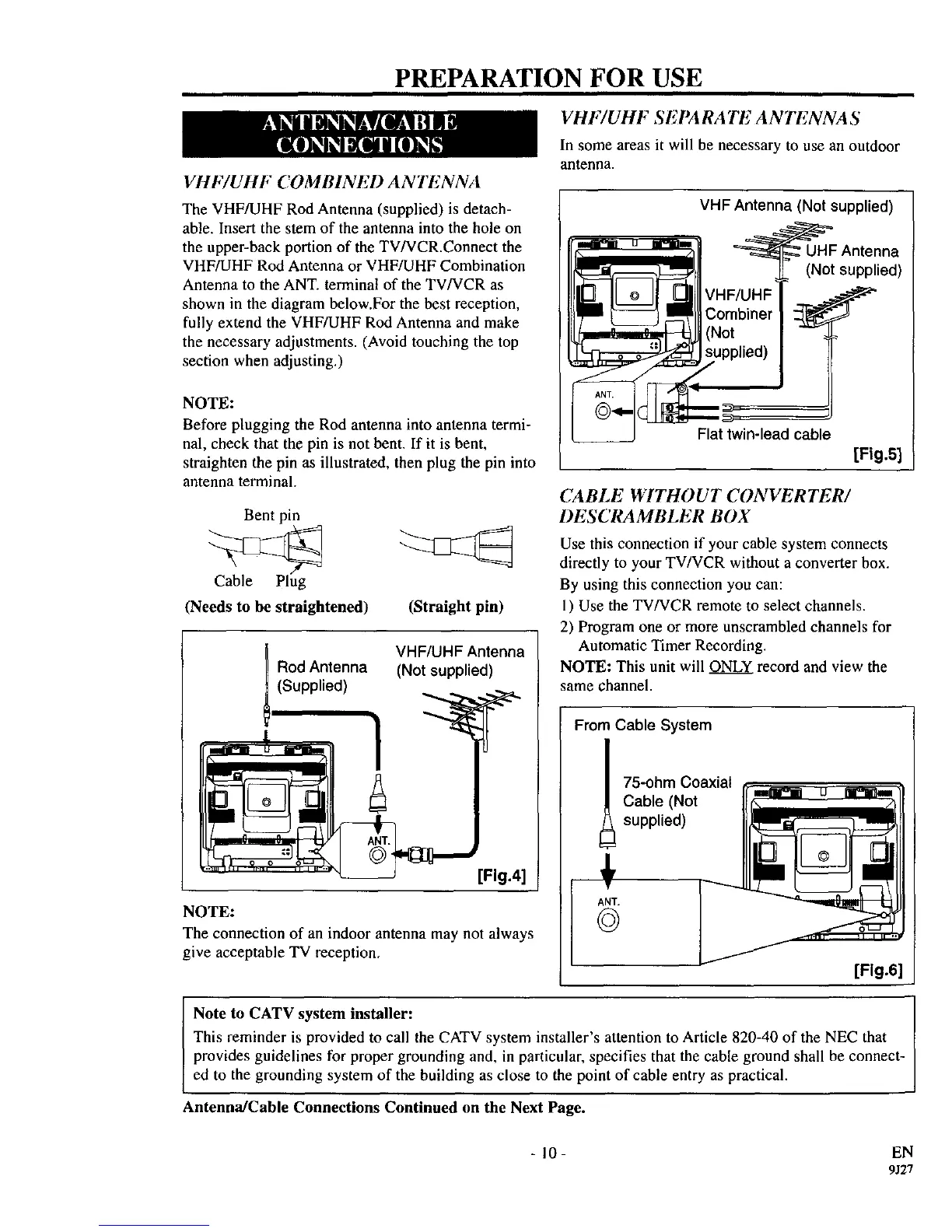

PREPARATION FOR USE
VHF/UHF SEPARATE ANTENNAS
VltbTUH! COMBINLD ANIENNA
The VHF/UHF Rod Antenna (supplied) is detach-
able. Insert the stem of the antenna into the hole on
the upper-back portion of the TV/VCR.Connect the
VHF/UHF Rod Antenna or VHF/UHF Combination
Antenna to the ANT. terminal of the TV/VCR as
shown in the diagram below.For the best reception,
fully extend the VHF/UHF Rod Antenna and make
the necessary adjustments. (Avoid touching the top
section when adjusting.)
NOTE:
Before plugging the Rod antenna into antenna termi-
nal, check that the pin is not bent. If it is bent,
straighten the pin as illustrated, then plug the pin into
antenna terminal.
Bent pin
Cable Plug
(Needs to be straightened) (Straight pin)
Rod Antenna
(Supplied)
1
VHF/UHF Antenna
(Not supplied)
[Fig.4]
NOTE:
The connection of an indoor antenna may not always
give acceptable TV reception,
In some areas it will be necessary to use an outdoor
antenna.
VHF Antenna (Not supplied)
UHF Antenna
(Not supplied)
Flat twin-lead cable
[Fig.5]
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects
directly to your TV/VCR without a converter box.
By using this connection you can:
1) Use the TVNCR remote to select channels.
2) Program one or more unscrambled channels for
Automatic Timer Recording.
NOTE: This unit will ONLY record and view the
same channel.
From Cable System
75-ohm Coaxial
Cable (Not
supplied)
d,
T
ANT.
©
[Fig.6]
Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connect-
ed to the grounding system of the building as close to the point of cable entry as practical.
Antenna/Cable Connections Continued on the Next Page.
- 10- EN
9J27
To Next Page
