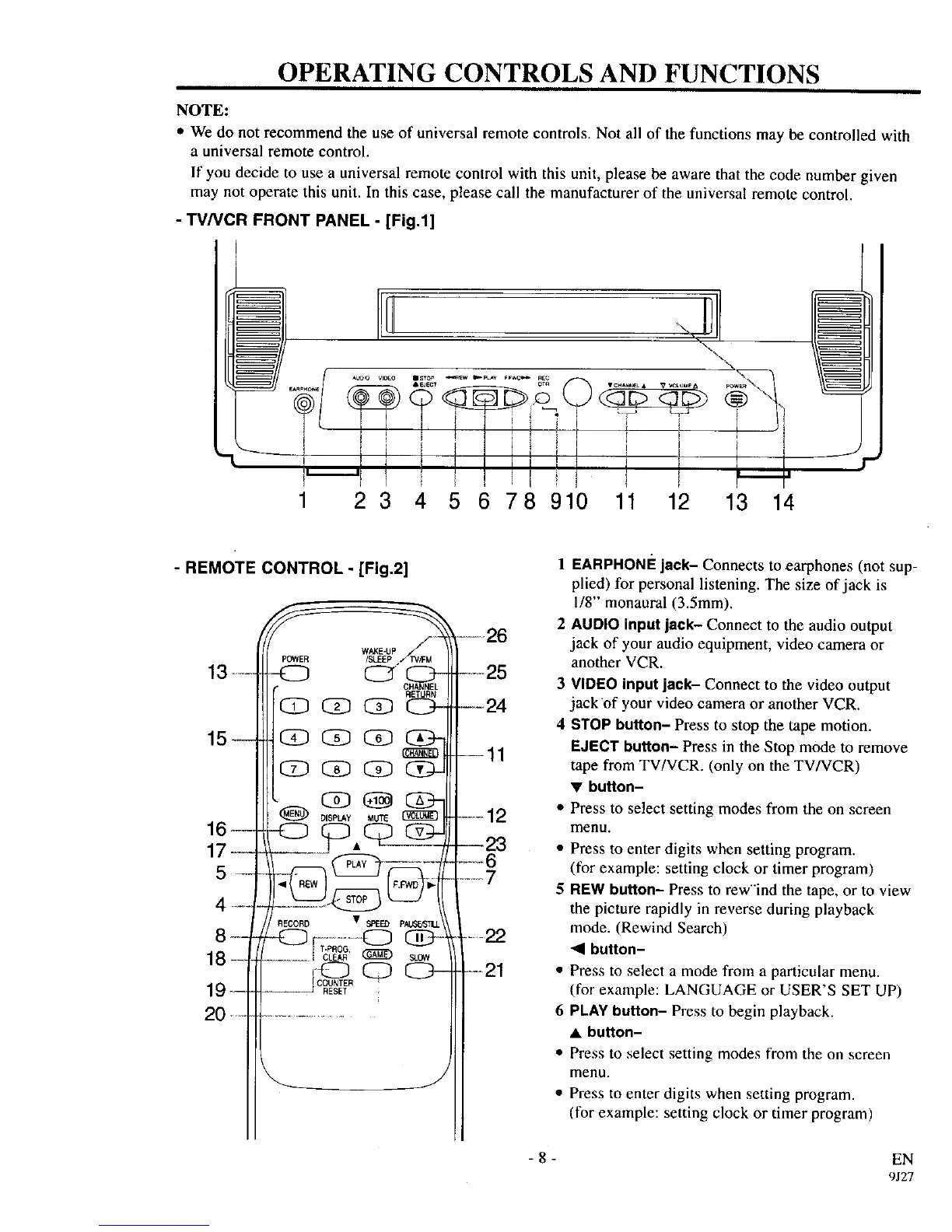

OPERATING CONTROLS AND FUNCTIONS
NOTE:
• We do not recommend the use of universal remote controls. Not all of the functions may be controlled with
a universal remote control.
If you decide to use a universal remote control with this unit, please be aware that the code number given
may not operate this unit. In this case, please call the manufacturer of the universal remote control.
- TV/VCR FRONT PANEL - [Fig.l]
1 2 3 4 5 6 78 910 11 12 13 14
- REMOTE CONTROL - [Fig.2]
--26
---25
---24
--11
---12
--23
----6
___7
_- 22
-21
1 EARPHONE jack- Connects to earphones (not sup-
plied) for personal listening. The size of jack is
1/8" monaural (3.5mm).
2 AUDIO input jack- Connect to the audio output
jack of your audio equipment, video camera or
another VCR.
3 VIDEO input jack- Connect to the video output
jack of your video camera or another VCR.
4 STOP button- Press to stop the tape motion.
EJECT button- Press in the Stop mode to remove
tape from TV/VCR. (only on the TV/VCR)
• button-
• Press to select setting modes from the on screen
menu.
• Press to enter digits when setting program.
(for example: setting clock or timer program)
5 REW button- Press to rew"ind the tape, or to view
the picture rapidly in reverse during playback
mode. (Rewind Search)
• button-
• Press to select a mode from a particular menu.
(for example: LANGUAGE or USER'S SET UP)
6 PLAY button- Press to begin playback.
• button-
• Press to select setting modes from the on screen
menu.
• Press to enter digits when setting program.
(for example: setting clock or timer program)
- 8 - EN
