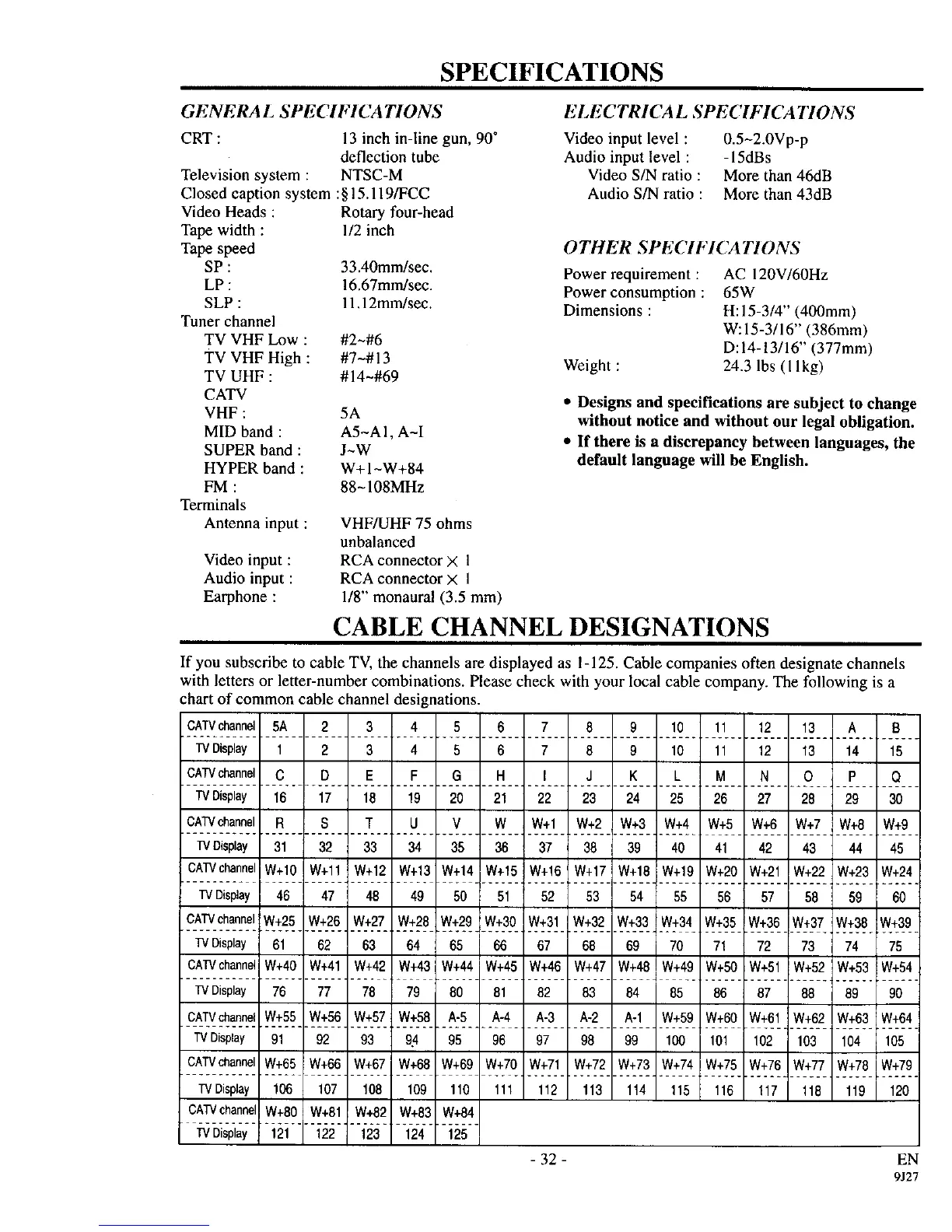

SPECIFICATIONS
GENERA L SPECIFICATIONS' ELt, CTRICAL SPE( IF I(A lIONS
CRT :
Television system :
Closed caption system
Video Heads :
Tape width :
Tape speed
SP:
LP :
SLP :
Tuner channel
TV VHF Low :
TV VHF High :
TV UHF :
CATV
VHF :
MID band :
SUPER band :
HYPER band :
FM :
Terminals
Antenna input :
Video input :
Audio input :
Earphone :
13 inch in-line gun, 90°
deflection tube
NTSC-M
:§I5.I19/FCC
Rotary four-head
1/2 inch
33.40mm/sec.
16.67mm/sec.
11.12mm/sec.
#2-#6
#7-#13
# 14~#69
5A
A5-A 1, A-I
J~W
W+ 1-W+84
88~108MHz
VHF/UHF 75 ohms
unbalanced
RCA connector × 1
RCA connector × 1
1/8" monaural (3.5 mm)
Video input level :
Audio input level :
Video S/N ratio :
Audio S/N ratio :
0.5-2.0Vp-p
-15dBs
More than 46dB
More than 43dB
OTHER SPE(It ICATIONS
Power requirement :
Power consumption :
Dimensions :
Weight :
AC 120V/60Hz
65W
H: 15-3/4" (400mm)
W: 15-3/16" (386mm)
D:14-13/16" (377mm)
24.3 lbs (I lkg)
• Designs and specifications are subject to change
without notice and without our legal obligation.
• If there is a discrepancy between languages, the
default language will be English.
CABLE CHANNEL DESIGNATIONS
If you subscribe to cable TV, the channels are displayed as I-125. Cable companies often designate channels
with letters or letter-number combinations. Please check with your local cable company. The following is a
chart of common cable channel designations.
CAD/channel 5A 2 3 4 5 6 7 8 9 10 11 12 13 A B
.............................................................................
TMDisplay 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
CATVchannel C D E F G H I J K L M N 0 P Q
"IVDisplay 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
CATVchannel R S T U V W W+I W+2 W+3 W+4 W+5 W+6 W+7 W+8 W+9
TVDisplay 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
CAD/channel W+10 W+11 W+12 W+13 W+14 W+15 W+16' W+17 W+18 W+19 W+20 W+21 W+22 W+23 W+24
TVDisplay 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
CA'rVchannel!W+25 W+26 W+27 W+28 W+29 W+30 W+31 W+32 W+33 W+34 W+35 !W+36 W+37 W+38 W+39
.......................................................................
D/Display 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75
CAD/channel W+40 W+41 W+42 W+43 W+44 W+45 W+46 W+47 W+48 W+49 W+50 _W+51 W+52 W+53 W+54
D/Display 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90
CAD/channel W+55 W+56 W+57 W+58 A-5 A-4 A-3 A-2 A-1 W+59 W+60 W+61 W+62 W+63 W+64
D/Display 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105
CAD/channel W+65 W+66 W+671W+68 W+69 W+70 W+71 W+72 W+73 W+74 W+75 W+76 W+77 W+78 W+79
D/Display 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120
CAD/channelW+80 W+81 W+82 W+83 W+84
