11. AC. GENERATOR / START CLUTCH
11-7

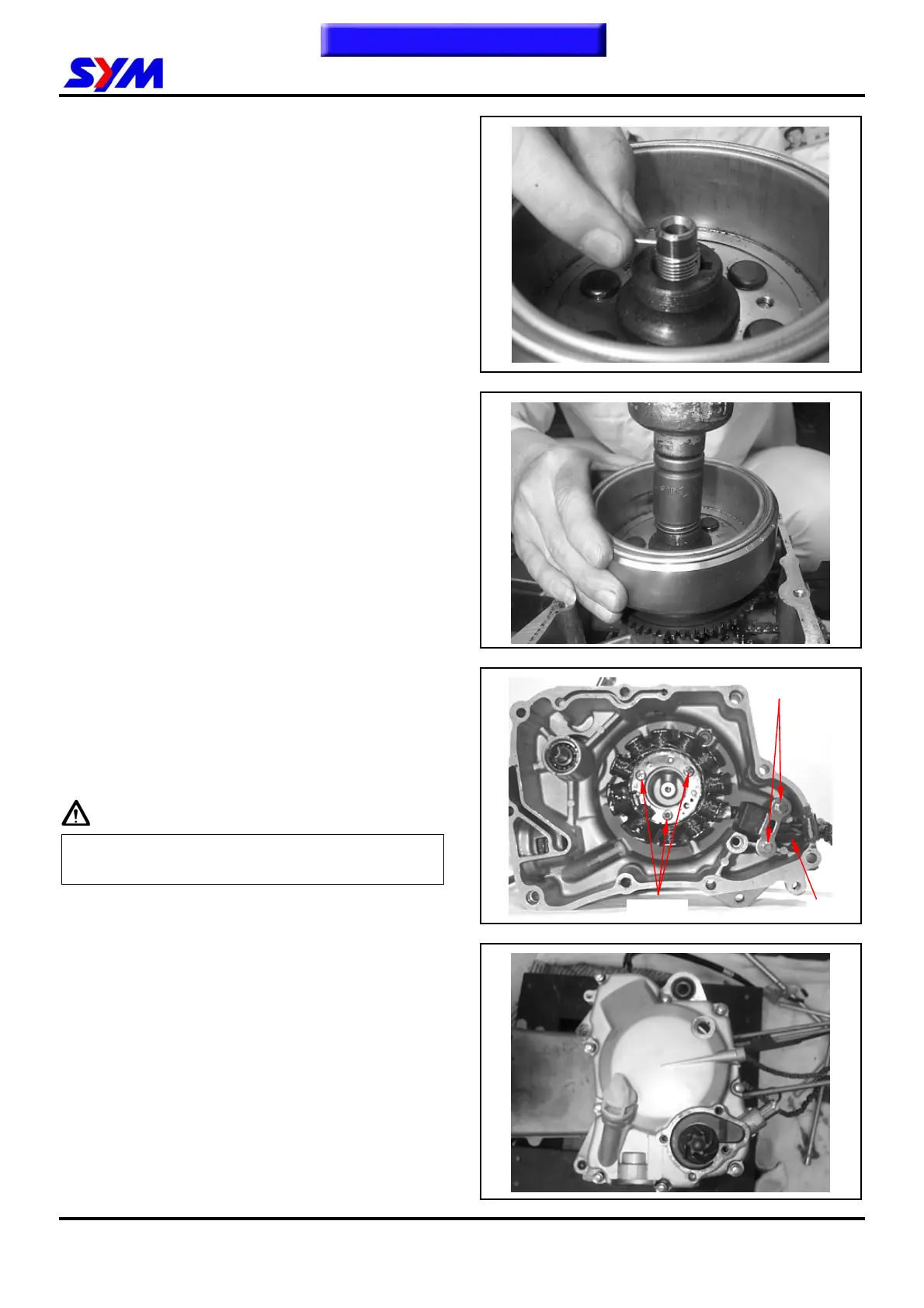

Flywheel Installation
Align the key on crankshaft with the flywheel
groove, and then install the flywheel.
Insert the oil through guide pin onto crankshaft.
Make sure that there is no other material stock on
it. If so, clean it up.
Hold the flywheel with flywheel holder, and tighten
its nut.
Torque value: 5.0~6.0kgf-m
Tool:
Flywheel holder
Install spring and oil through.
ACG. Set Installation
Install the A.C.G. set onto right crankcase cover (3
screws).
Install pulse generator (2 screws).
Tie the wire harness securely onto the indent of
crankcase.
Caution
Make sure that the wire harness is placed under
pulse generator.
Right Crankcase Cover Installation
Install dowel pin and new gasket.
Install right crankcase cover onto the crankcase.
Note: Align the water pump shaft indent with the oil
pump shaft.
Install right crankcase cover (9 screws).
2 bolts
3 screws
Wire
