18. ELECTRICAL SYSTEM
18-9
Starting System

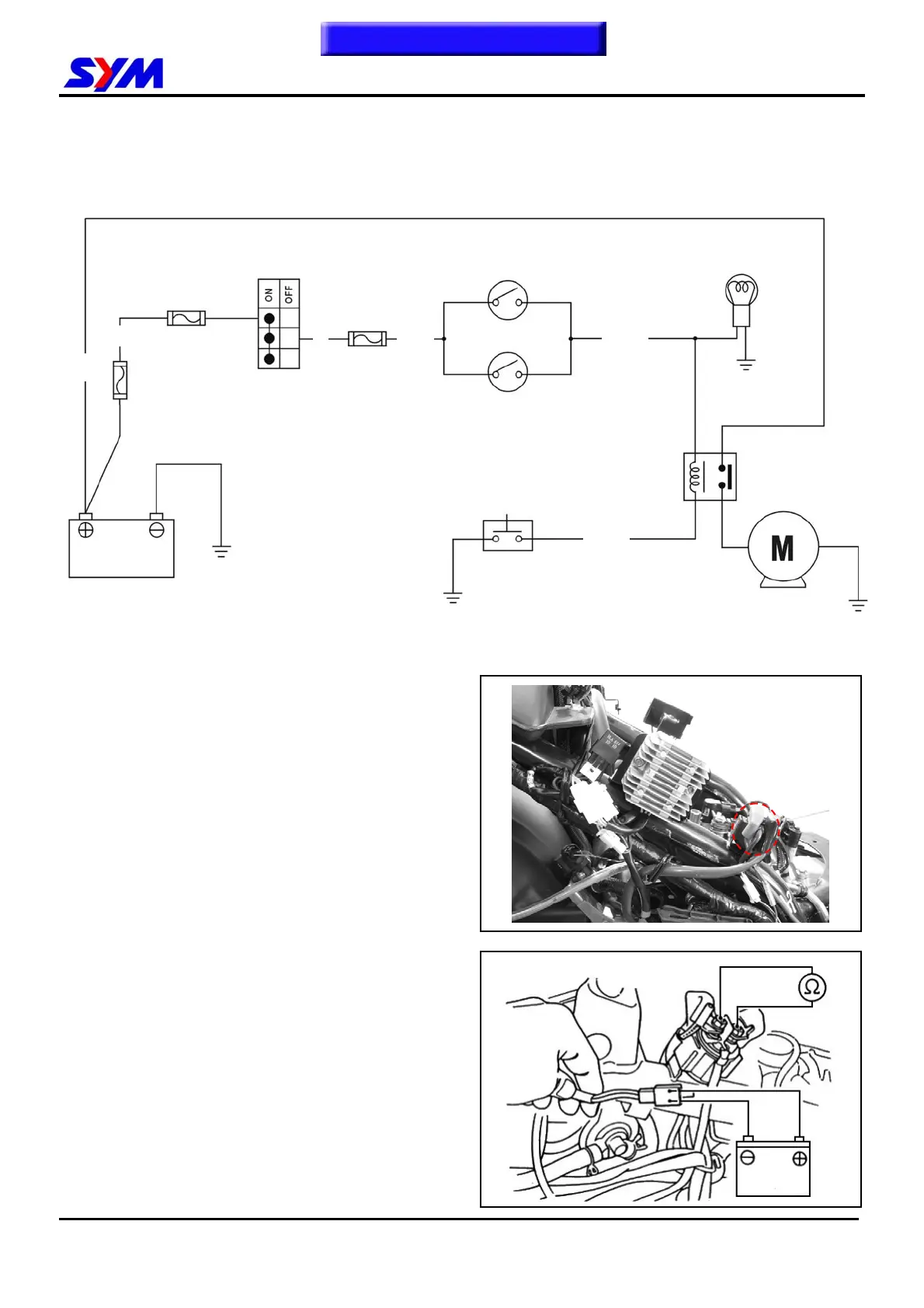

Starting circuit diagram
Inspection on starter relay
Open the main switch.
Press the brake.
Push down the starter switch.
If a sound of “Looh Looh” is heard, it indicates the
relay function normally.
Remove the luggage box.
Disconnect the negative cable terminal of the
battery.
Disconnect the cable positive terminal from the
relay.
Disconnect the positive cable of the starter motor.
Disconnect the coupler of the relay.
Connect an ohmmeter to the large terminal end.
Connect the yellow/red cable to the battery
positive terminal and the green/yellow cable to the
battery negative terminal.
Check the continuity of the large terminal end.
If there is no continuity, replace the relay.
To this chapter contents
Starter motor
Starter relay
Y/R
Starter switch
Front brake switch
Rear brake switch
Brake light
G/Y
Fuse 15A
W/GB
Fuse 20A
R
R
Battery
Fuse 20A
