16. STEERING / FRONT WHEEL / FRONT CUSHION
16-4

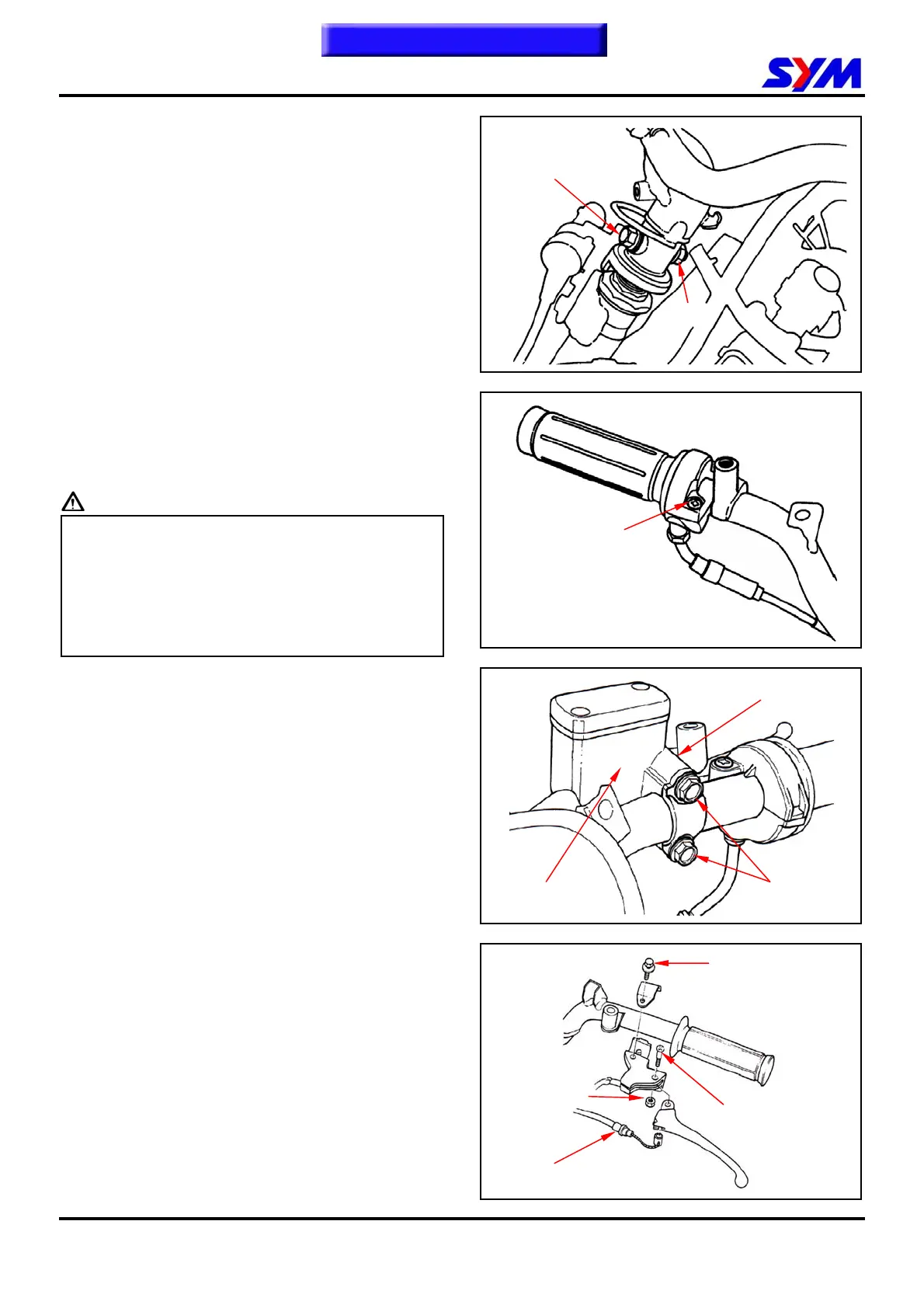

Installation
Install handle and align with bolt hole.
Install bolt and nut and then tighten it.
Torque value: 4.5kgf-m
Apply with grease onto throttle cable and the
sliding surface of handle.
Align the lock pin of the throttle bracket with the
hole on the handle, and then install the throttle
bracket.
Caution
When installs the throttle cable, first spreads the
grease in the terminal to receive the throttle grip
again.
y After installs the handle, inspects the throttle
grip, whether may change to in the direction the
handle time the free position, the freedom does
moves.
Install the lock bolts for the master cylinder of the
front brake.
Align the lock pin with the hole on the handle and
also install brake lever bracket. Then, tighten the
brake lever bracket bolt.
Install brake cable, lever on to bracket, and then
tighten lever screw and nut.
After the installment completes, carries on the
following inspection and the adjustment:
y Throttle grip operation.
y All electric appliances, the meter function.
Holder
Brake cable
Brake holder bolt
Brake lever nut
2 bolts
Brake lever screw
Master cylinder
Bolt
Nut
Screw
