ABS description

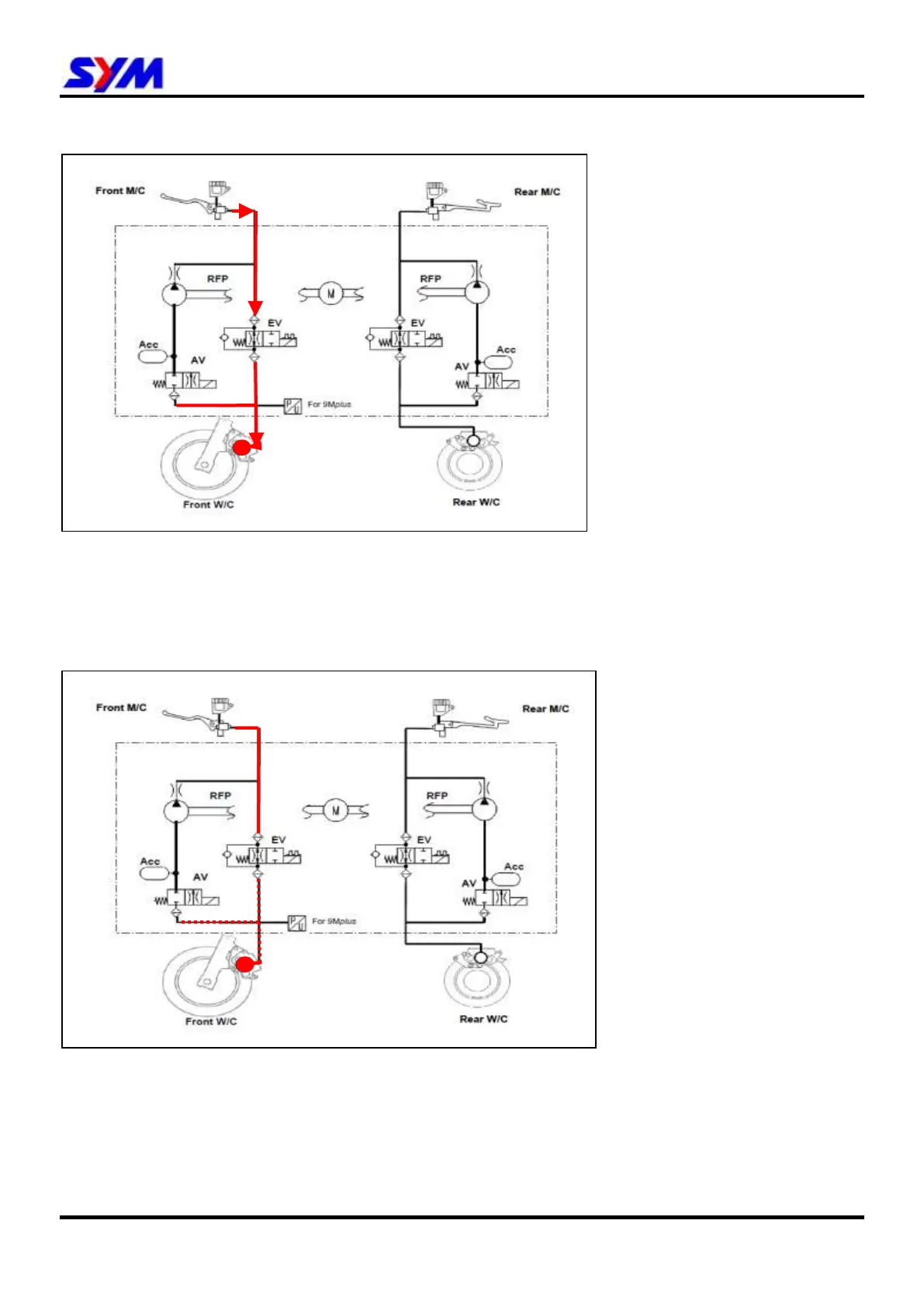

Normal brake
When the brake is applied, speed sensors detect the front and rear wheel speed. When there is no wheel
slip, EV (inlet valve for maintaining pressure) keeps open and AV (outlet valve for pressure reduction) is
closed. Brake calipers receive pressure for master cylinders and brake normally.
Initial wheel slip
When the initial wheel slip is detected by the wheel speed sensors, EV and AV are both closed. Brake
caliper keeps the pressure and brake continues.
