4. Fuel Injection System
4-44
EFi System Diagnostic Tool - V70
Note:
When problems occurred, can be used for diagnosis tool of the fault is detected, and exclusion.
In addition to testing, troubleshooting, another of the operation can be carried out data analysis-type
monitor.
Method of Use:
1. Maintain engine flameout state, do not open main switch.
2. Opened the luggage box lighting light cover (screw x2), connected to the diagnostic connector for
diagnosis tool.
3. Then open the main switch and the diagnosis tool power switch after diagnosis display screen
appeared the words connection.
4. Press the "ENTER" button into the main screen (there are 6 major functions: ECU ID, DATA STREAM,
FREEZED DATA, TROUBLE CODE, ERASE TB CODE and CO ADAPTION)
5. Use ▲, ▼ select button under the function, press the "ENTER" button access into various functions.
Example: select "DATA STREAM," by the "ENTER" button, the screen showed that the existing fault
codes; indicates no fault "system is OK."
6. Press "EXIT" button to leave of the various functions.
7. Must to close the main switch or power switch of the diagnosis tool after, and then can removal of
diagnosis tool coupler.

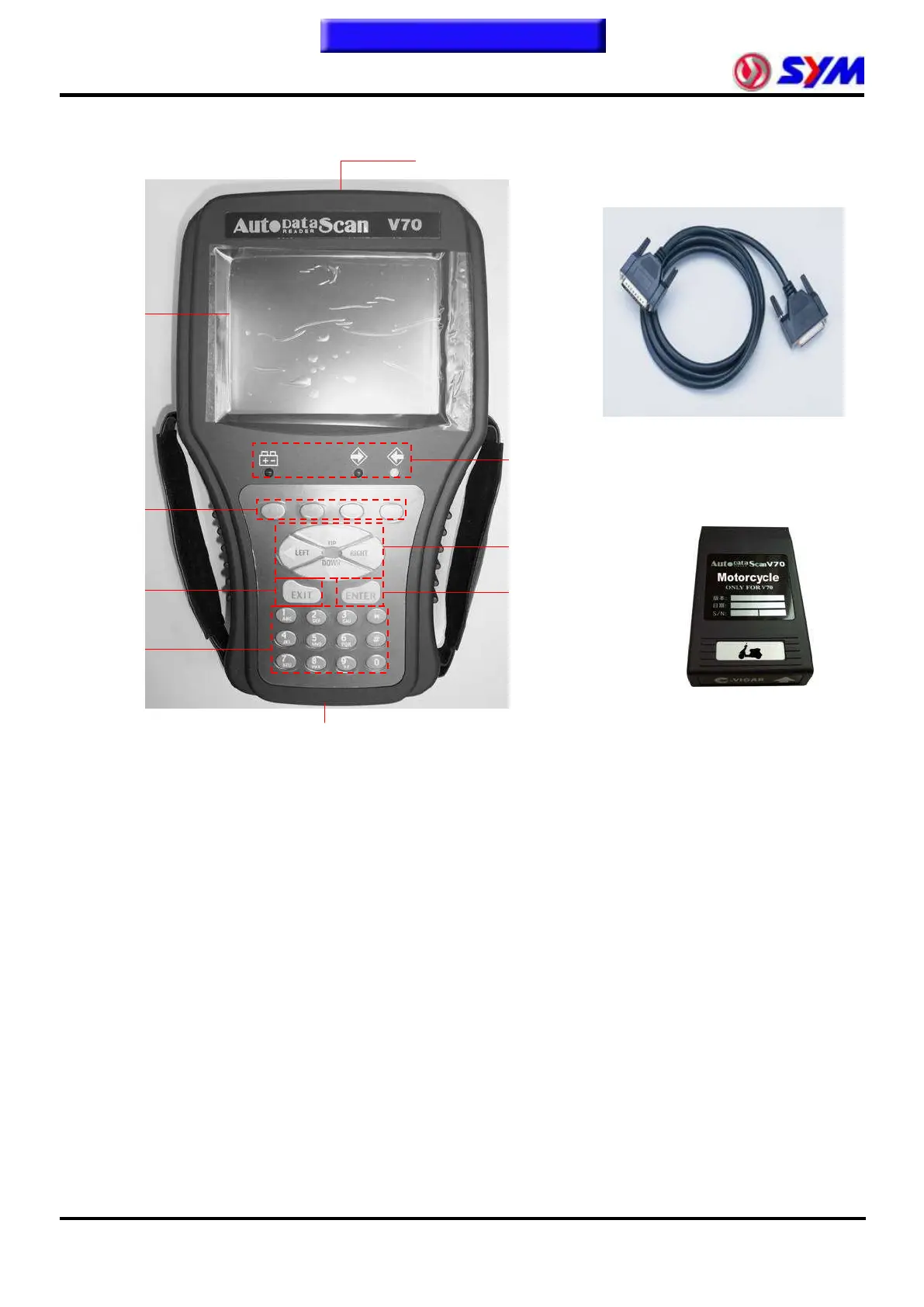

Cable connector
Information
transmission indicator
Software cartridge slots
Executive
Function button
Leave
button
Button to turn the
pages, and numerical
adjustment
Digital
button
LCD
monitor
Link cable
