8. V-BELT DRIVING SYSTEM/KICK STARTER ARM SYM
8-6
SLIDING PULLEY
REMOVAL

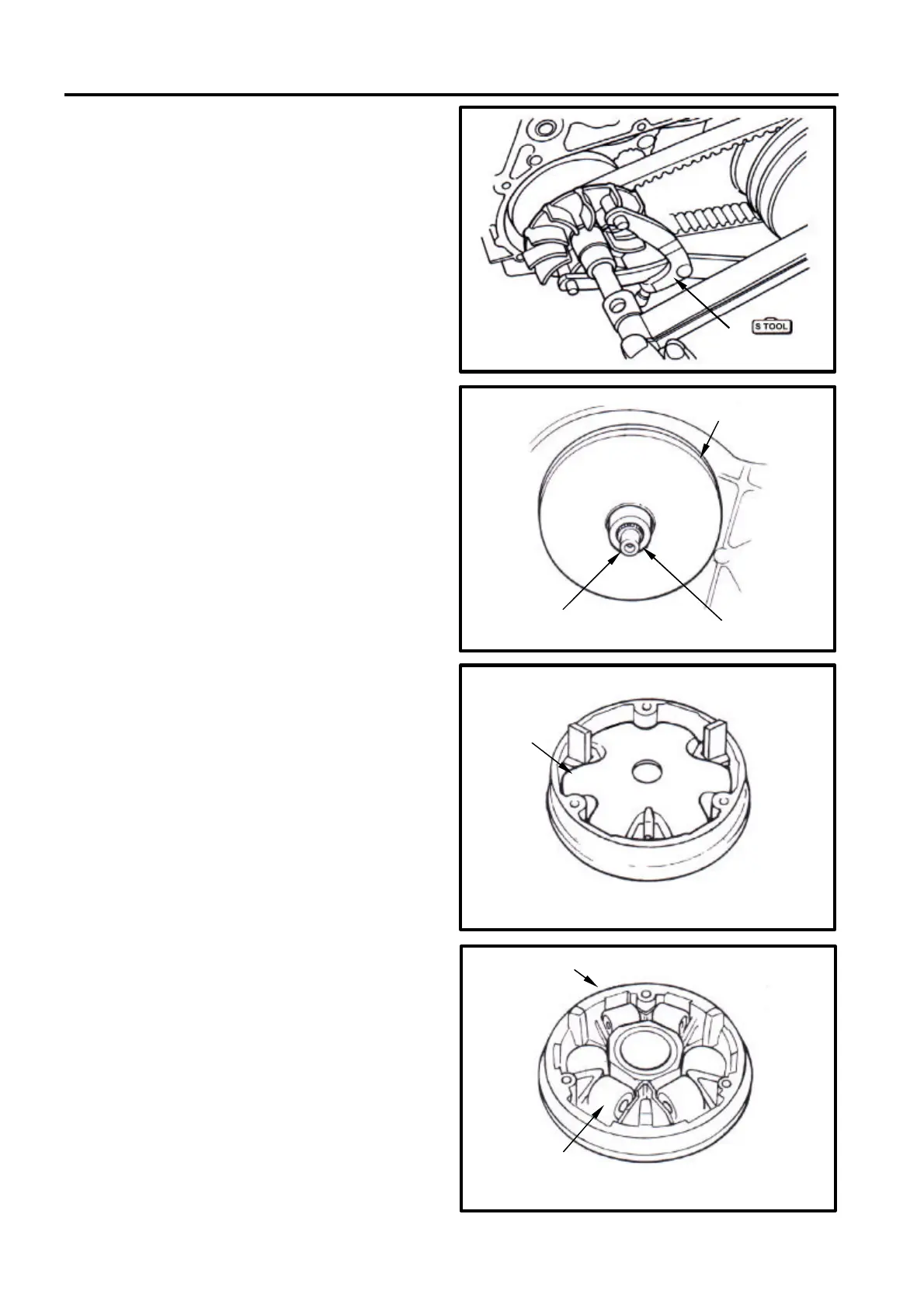

Remove left crankcase cover.
Hold driving pulley with universal fixture, and
then remove driving pulley nut.
Remove driving pulley.
Remove the driving belt from the pulley.
Remove sliding pulley set and driving pulley
hub from crankshaft.
Remove tilt plate.
Remove weight rollers from sliding pulley.
Crankshaft
Driving pulley hub
Sliding pulley
Tilt plate
Sliding pulley
Roller
Universal fixture
