LS 5700/LS 5800 Product Reference Guide
Mounting instructions for other LS 5800 models begin
below.
Stainless Steel Top
•
The LS-5800-I210DN has a Stainless Steel Top with a
Diamondex-Coated glass.
• The LS-5800-I210SN has a Stainless Steel Top with a
Sapphire glass.
• The LS-5800-I210SC has a Stainless Steel Top with a
Sapphire glass and is EAS ready.
There are two options for mounting the LS 5800 with a
Stainless Steel Top.
Option A - Resting on the counter top
Note: Not applicable to the LS-5800-
I210SC configuration.
1. Cut a hole in the counter 6.81 in. (173 mm) square.

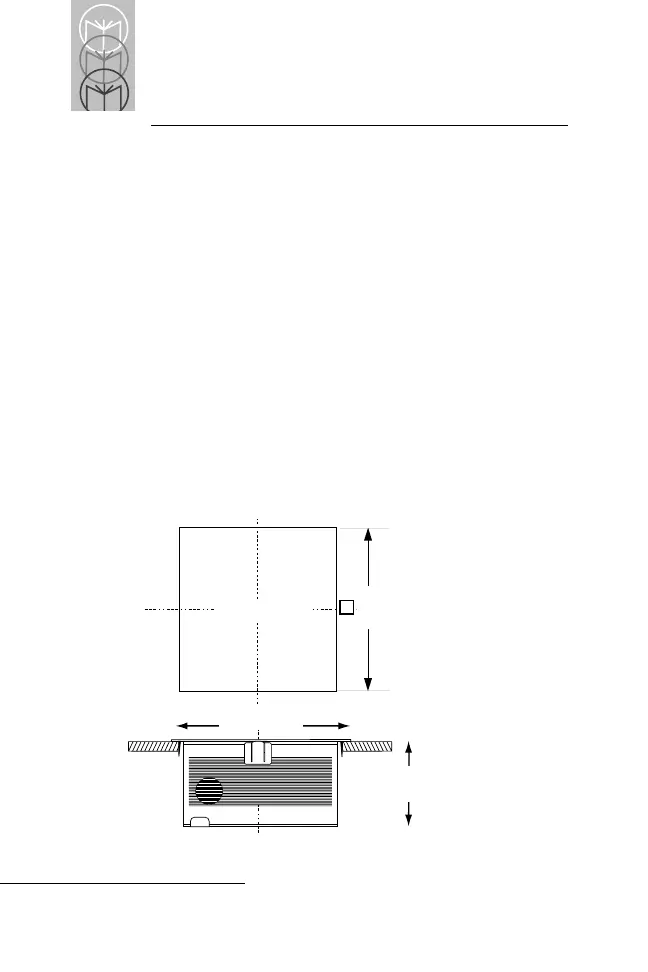

Figure 2-13. Stainless Steel Top Option A
Counter Hole
6.81 in. ±0.06
173 mm ±1.5
~3.5 in.
89 mm
7.91 in.
201 mm
To Next Page
