3 4
Note 1: All wiring should comply with local
requirements and regulations.
Note 2: Panel wiring must observe the
recommendations of the panel manufacturer
PLACE
WIRING
LABEL
HERE

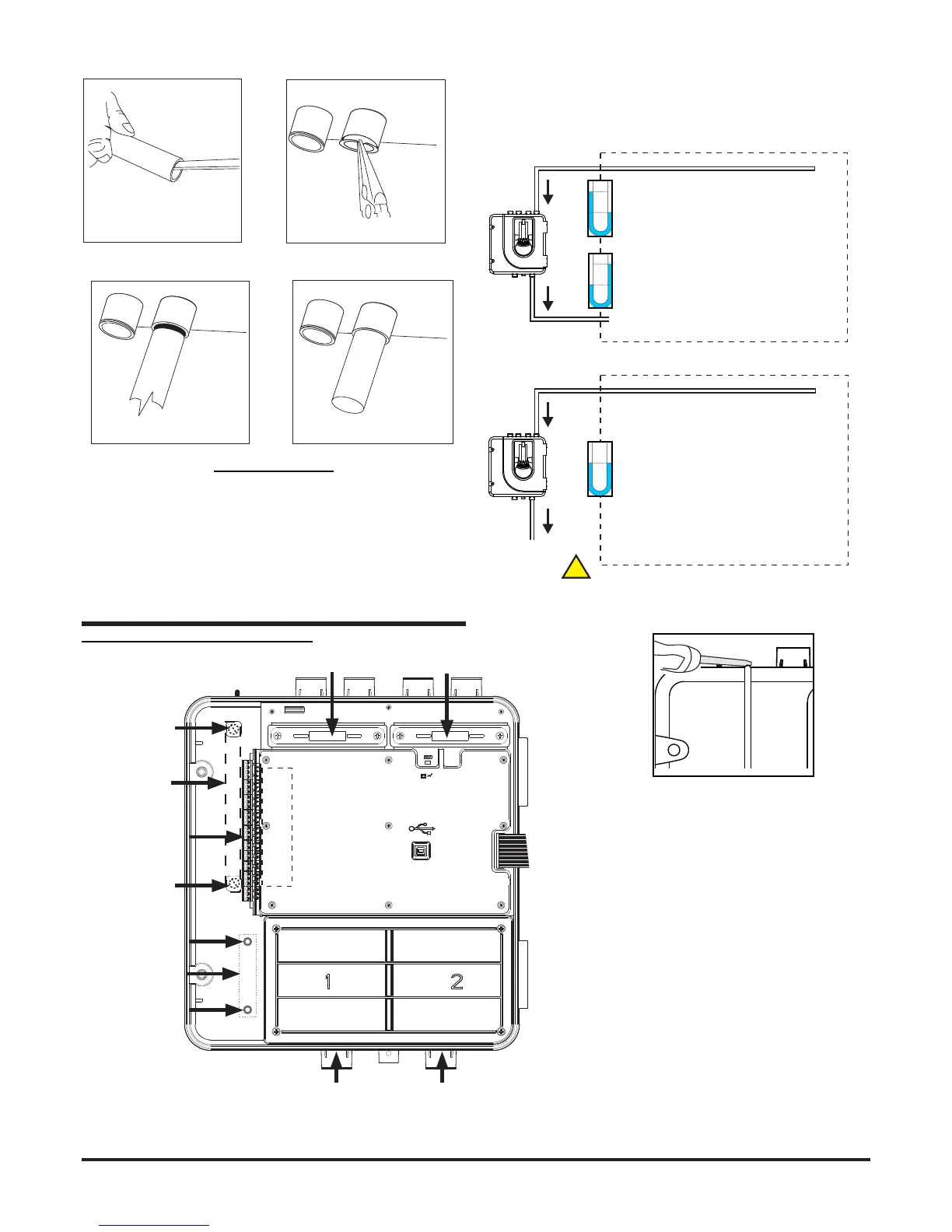

If the FAAST LT-200 door is closed for a long
time (especially at high temperatures) it may
be necessary to use a at-bladed screwdriver
between the two tabs at the top of the unit to
lever open the door (as shown above).
SAMPLING AREA
SAMPLING AREA
Whenever the FAAST LT-200 is installed outside the risk area, return
of the exhaust air back into the protected area can reduce ow faults
due to pressure dierence.
!
MODULE MOUNT
MODULE MOUNT
F-LT-PMB
MODULE
MOUNT KIT
(OPTIONAL)*
*If required, an input/output module
can be installed into the FAAST LT-
200 unit. The optional module mount
kit (F-LT-PMB) will be needed for this.
IMPORTANT NOTES
1) Do not glue the pipes into the inlets or outlets of the FAAST LT-
200 unit. Devices with glued pipes will be deemed as out of
warranty because they cannot be tested.
2) It is recommended that the inlet and outlet connections remain
plugged prior to use, and the outlet is temporarily sealed if the
device is turned o during maintenance periods to prevent ingress
of insects and spiders.
