d.2Dataabouttheunitaccordingtocardsandlabelsinandontheunit



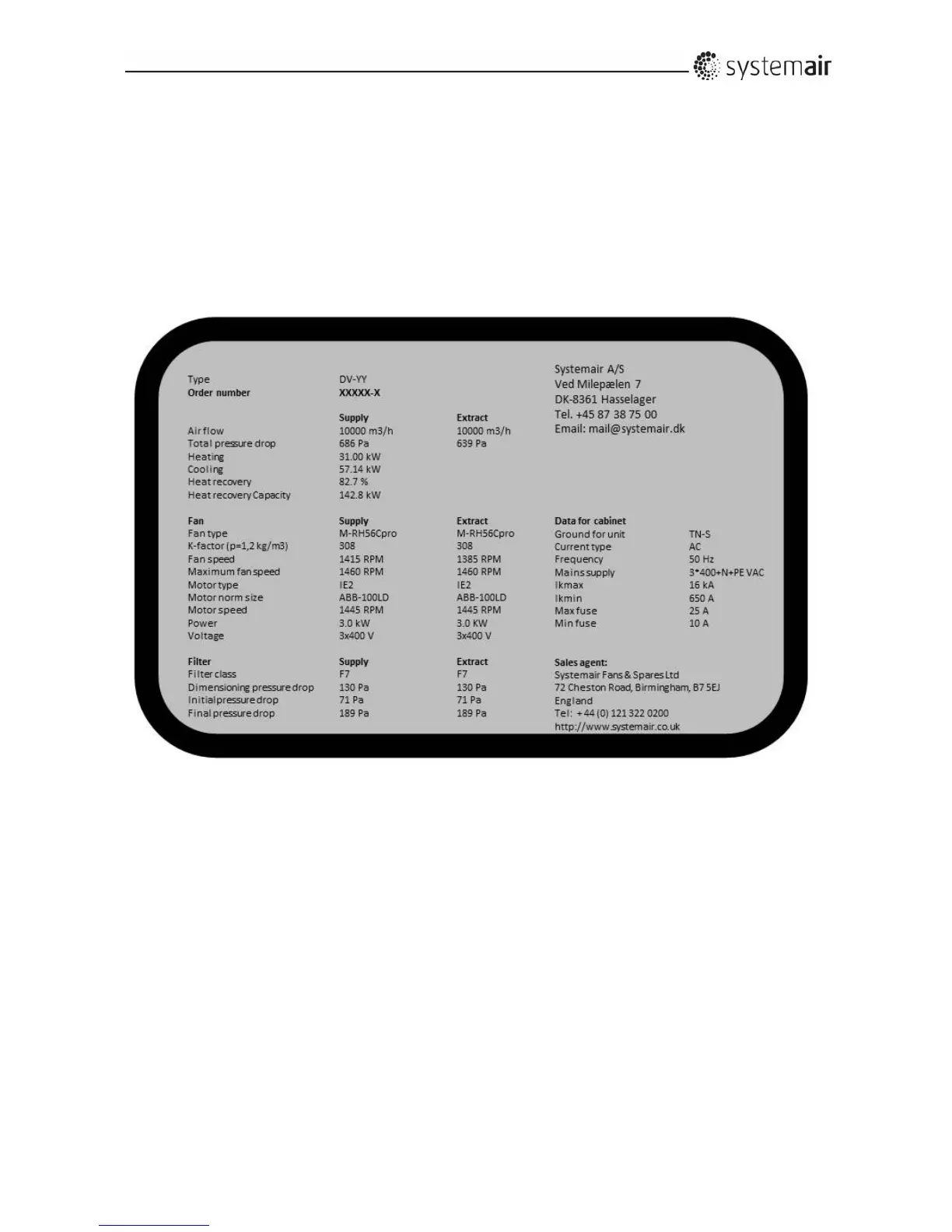

d.2.1Machinecardwithuniquedataoneveryunit

Anexampleofamachinecardisshownbelow.


