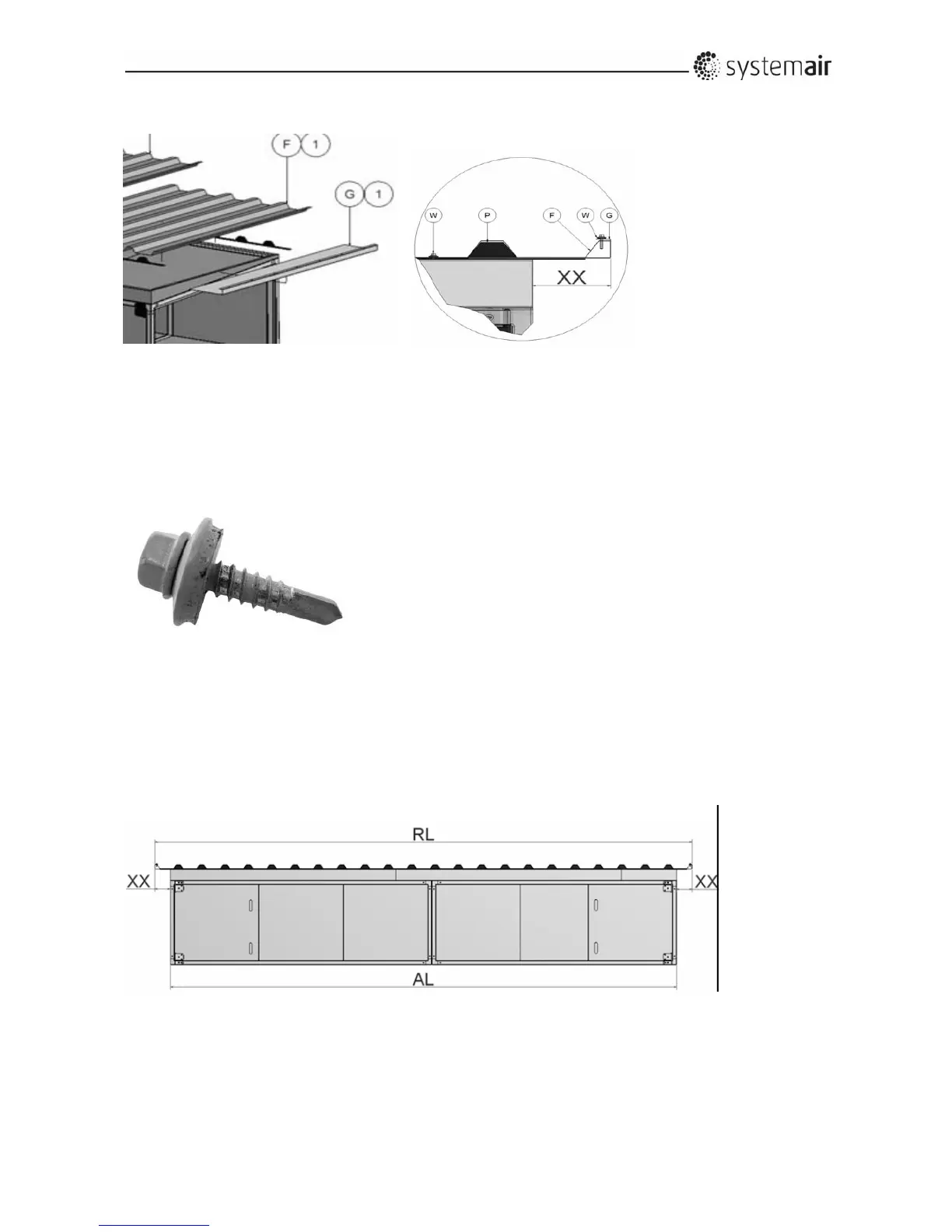

Theunitisdeliveredwith2similaroverhangprofiles‐G1andG5‐oneforeachendoftheroof.Mountone

ofthe2roofoverhangprofiles–Gonatrapezoidalroofplate.Usetheselfdrilling,paintedscrewswith

sealingwashers‐W‐seetheillustration.

Note:Foambands

‐P–arenecessarybetweentheoverhangprofileG1andtheroofplateF1.Seethe

illustration.



Self‐drilling,paintedscrewssuppliedwithsealingwasherforthemountingofthetrapezoidalplatetothe

roofoverhangprofile.

Thetotalcoverwidthofthetrapezoidalroofplatesalwayschangeswiththe

pitchof207mmbetweenthe

trapezoidalribs,makingupatotallengthofthecompleteroofof‐forexample2070mm,2277mm,2484

mmandsoon.WecallthislengthofthetotalroofforRLandwecallthetotallengthofthecompleteunit

for

AL. Thetrapezoidalroofmustalwaysbelongerthantheunit,toobtainareasonableoverhangcalled–

XX‐oftheroofatbothends.



Inthetablebelowyouwillfind40differentlengthsofroofs(alwayschangingwiththe207mm)andthe

lengthsofunitsthatareideal

foreachofthe40alternativerooflengths.
