T-solution SV-iG5 User Manual

Chapter 1 - Installation
7

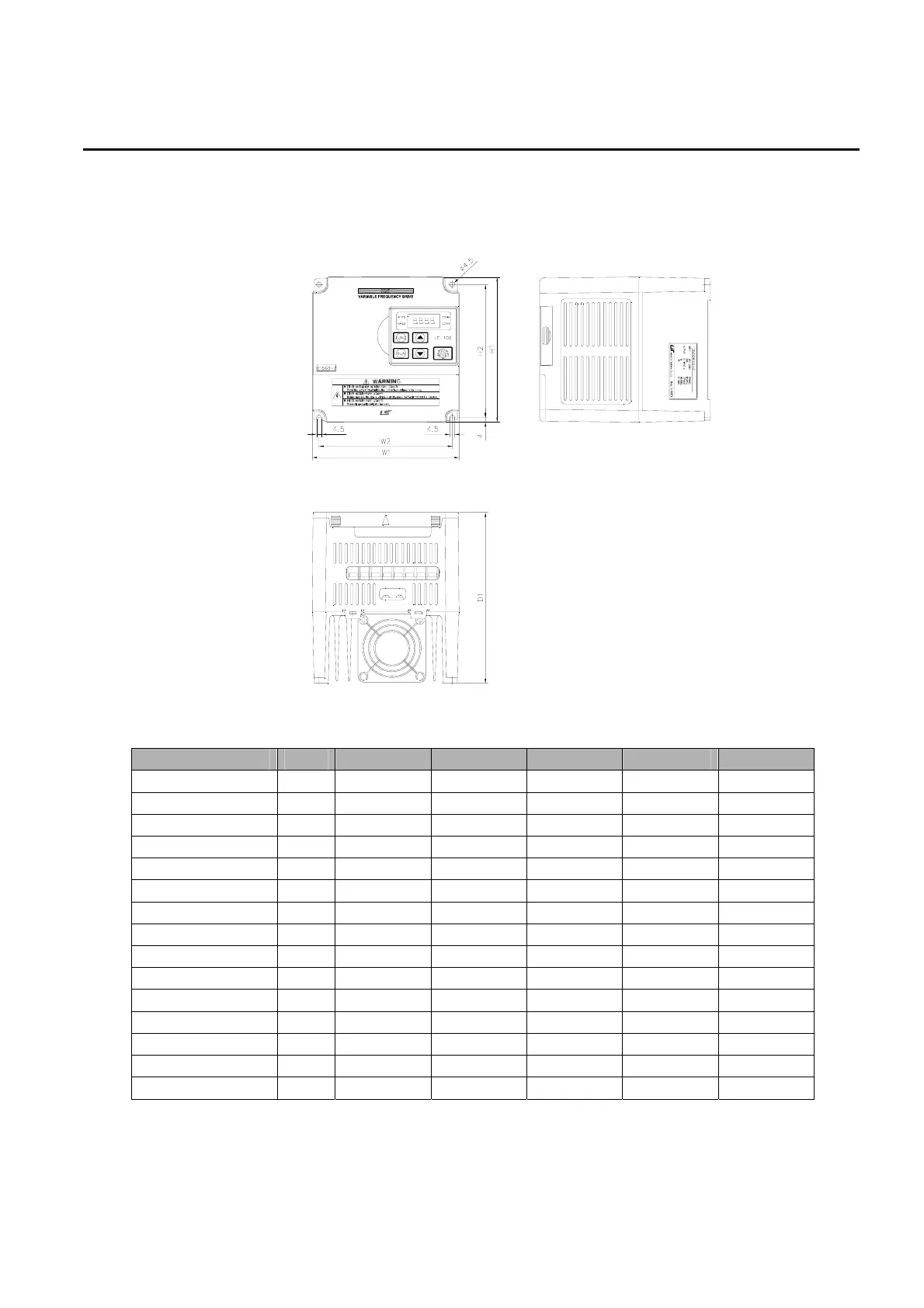

1.5 Dimensions
Unit: mm (inch)
Inverter HP W1 W2 H1 H2 D1
SV004iG5-1 0.5 100 (3.94) 88 (3.46) 128 (5.04) 117.5 (4.63) 130.9 (5.15)
SV008iG5-1 1 130 (5.12) 118 (4.65) 128 (5.04) 117.5 (4.63) 152.9 (6.02)
SV015iG5-1 2 150 (5.90) 138 (5.43) 128 (5.04) 117.5 (4.63) 155.0 (6.10)
SV004iG5-2 0.5 100 (3.94) 88 (3.46) 128 (5.04) 117.5 (4.63) 130.9 (5.15)
SV008iG5-2 1 100 (3.94) 88 (3.46) 128 (5.04) 117.5 (4.63) 130.9 (5.15)
SV015iG5-2 2 130 (5.12) 118 (4.65) 128 (5.04) 117.5 (4.63) 152.9 (6.02)
SV022iG5-2 3 150 (5.90) 138 (5.43) 128 (5.04) 117.5 (4.63) 155.0 (6.10)
SV037iG5-2 5.0 150 (5.90) 138 (5.43) 128 (5.04) 117.5 (4.63) 155.0 (6.10)
SV040iG5-2 5.4 150 (5.90) 138 (5.43) 128 (5.04) 117.5 (4.63) 155.0 (6.10)
SV004iG5-4 0.5 130 (5.12) 118 (4.65) 128 (5.04) 117.5 (4.63) 152.9 (6.02)
SV008iG5-4 1 130 (5.12) 118 (4.65) 128 (5.04) 117.5 (4.63) 152.9 (6.02)
SV015iG5-4 2 130 (5.12) 118 (4.65) 128 (5.04) 117.5 (4.63) 152.9 (6.02)
SV022iG5-4 3 150 (5.90) 138 (5.43) 128 (5.04) 117.5 (4.63) 155.0 (6.10)
SV037iG5-4 5.0 150 (5.90) 138 (5.43) 128 (5.04) 117.5 (4.63) 155.0 (6.10)
SV040iG5-4 5.4 150 (5.90) 138 (5.43) 128 (5.04) 117.5 (4.63) 155.0 (6.10)
