Chapter 4 - Parameter Description [FU2]
49

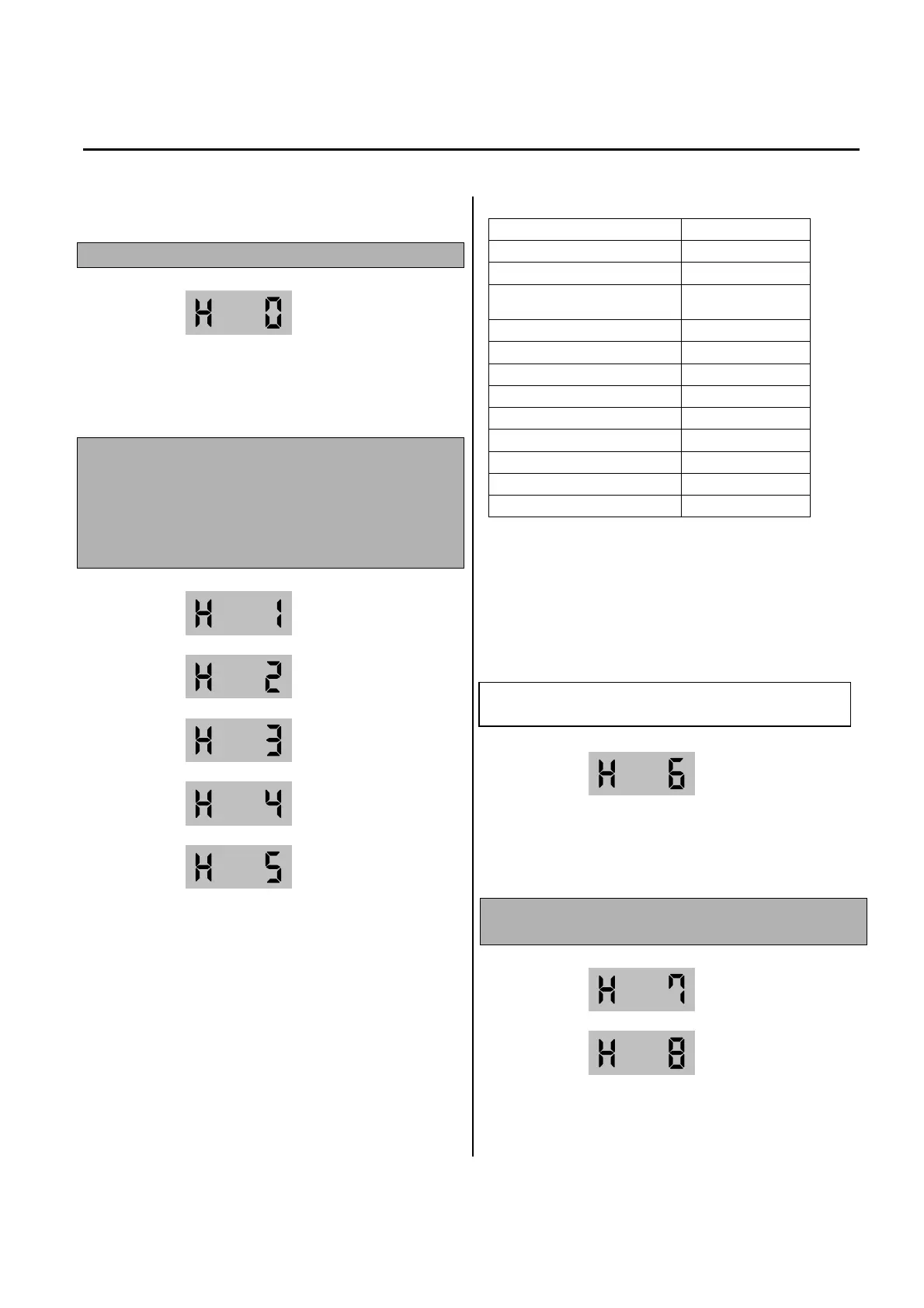

4.3 Function 2 Group [FU2]
FU2-00: Jump to Desired Code #
Jumping directly to any parameter code can be
accomplished by entering the desired code
number.
FU2-01: Previous Fault History 1
FU2-02: Previous Fault History 2
FU2-03: Previous Fault History 3
FU2-04: Previous Fault History 4
FU2-05: Previous Fault History 5
FU2-06: Erase Fault History
This code displays up to five previous fault (trip)
status of the inverter. Use the [FUNC], [
▲] and [▼]
key before pressing the [RESET] key to check the
fault content(s), output frequency, output current,
and whether the inverter was accelerating,
decelerating, or in constant speed at the time of
the fault occurred. Press the [FUNC] key to exit.
The fault content will be stored in FU2-01 through
FU2-05 when the [RESET] key is pressed. For
more detail, please refer to Chapter 7.
[Fault Contents]
Fault (Trip) Keypad Display
Over-Current 1
OC
Over-Voltage
OV
Emergency Stop
(Not Latched)
BX
Low-Voltage
LV
Ground Fault
GF
Over-Heat on Heat sink
OH
Electronic Thermal Trip
ETH
Over-Load Trip
OLT
Inverter H/W Fault
HW
Output Phase Loss
OPO
Input Phase Loss
COL
Inverter Over-Load
IOLT
☞
Note: There is Fan error, EEP error, CPU2 error, Ground fault
and NTC error for the inverter Hardware Fault. The inverter
will not reset when H/W fault occurs. Repair the fault before
turning on the power.
☞ Note: When multiple faults occur, only the highest-level fault
will be displayed.
This function erases all fault histories of FU2-01 to
FU-05 from the memory.
FU2-07: Dwell Frequency
FU2-08: Dwell Time
This function is used to output torque in an
intended direction. It is useful in hoisting
applications to get enough torque before a
Related Functions: DRV-12 [Fault Display] displays current
fault status.
