Chapter 4 - Parameter Description [FU1]
39

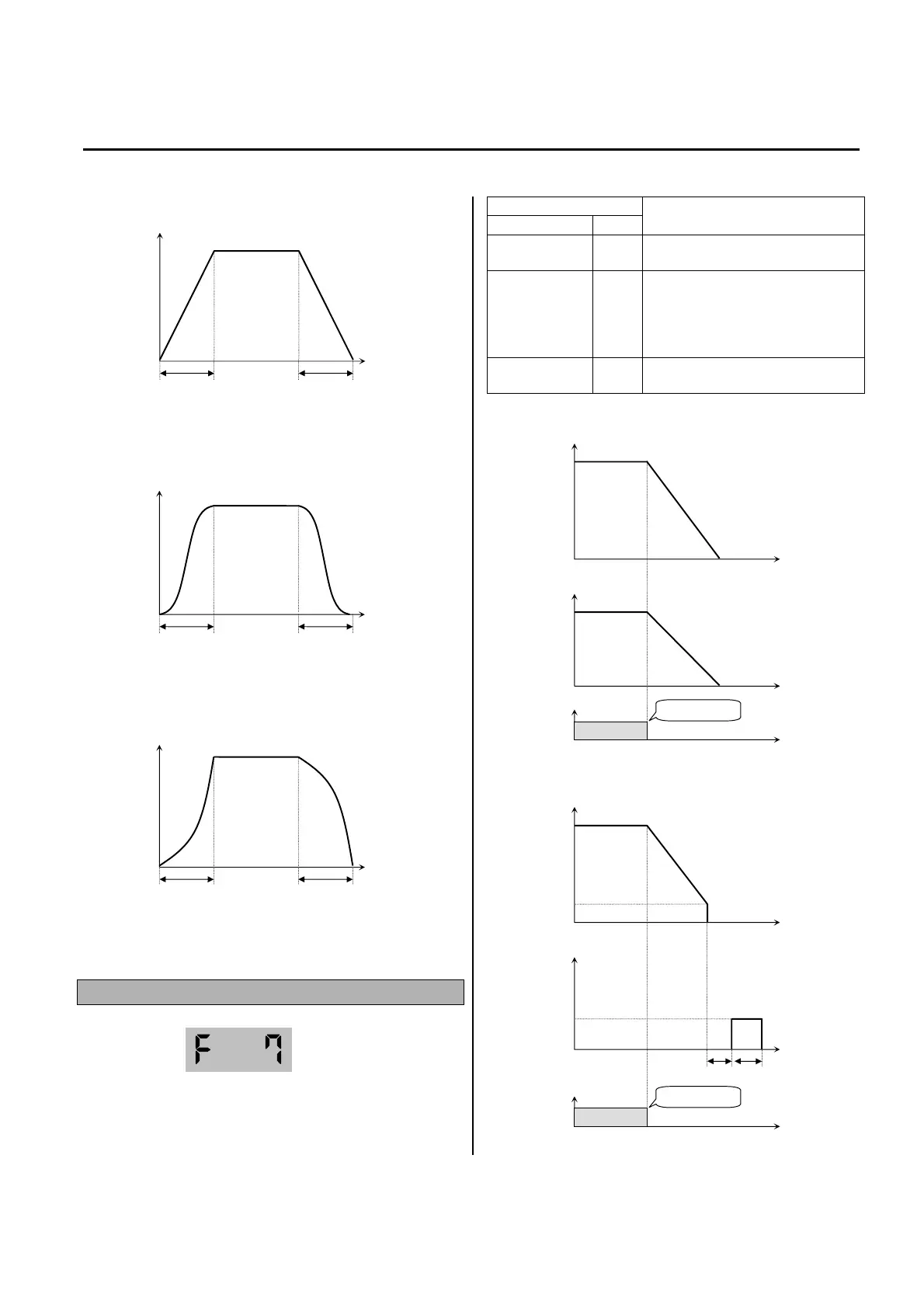

[Accel/Decel Pattern: ‘Linear’]
[Accel/Decel Pattern: ‘S-Curve’]
[Accel/Decel Pattern: ‘U-Curve’]
FU1-07: Stop Mode
Selects the stopping method for the inverter.
Setting Range
Select Display
Description
Decel 0
Inverter stops by the deceleration
pattern.
DC-Brake
1
Inverter stops with DC injection
braking. Inverter outputs DC voltage
when the frequency reached the DC
injection braking frequency set in FU1-
08 during decelerating.
Free-Run
(Coast to stop)
2
Inverter cuts off its output immediately
when the stop signal is entered.
[Stop Mode: ‘Decel’]
[Stop Mode: ‘DC-Brake’]
Output Frequency
Time
Acc. Pattern Dec. Pattern
Output Frequency
Time
Acc. Pattern Dec. Pattern
Output Frequency
Time
FX-CM
ON
Output Voltage
Time
Time
Stop Command
Output Frequency
Time
FX-CM
ON
Output Voltage
Time
Time
Stop Command
FU1-08
FU1-10
[DCBr Value]
t1 t2
t1: FU1-09
t2: FU1
-
11
Output Frequency
Time
Acc. Pattern Dec. Pattern
