Taie FY series - External Dimension and Panel Cutout

11

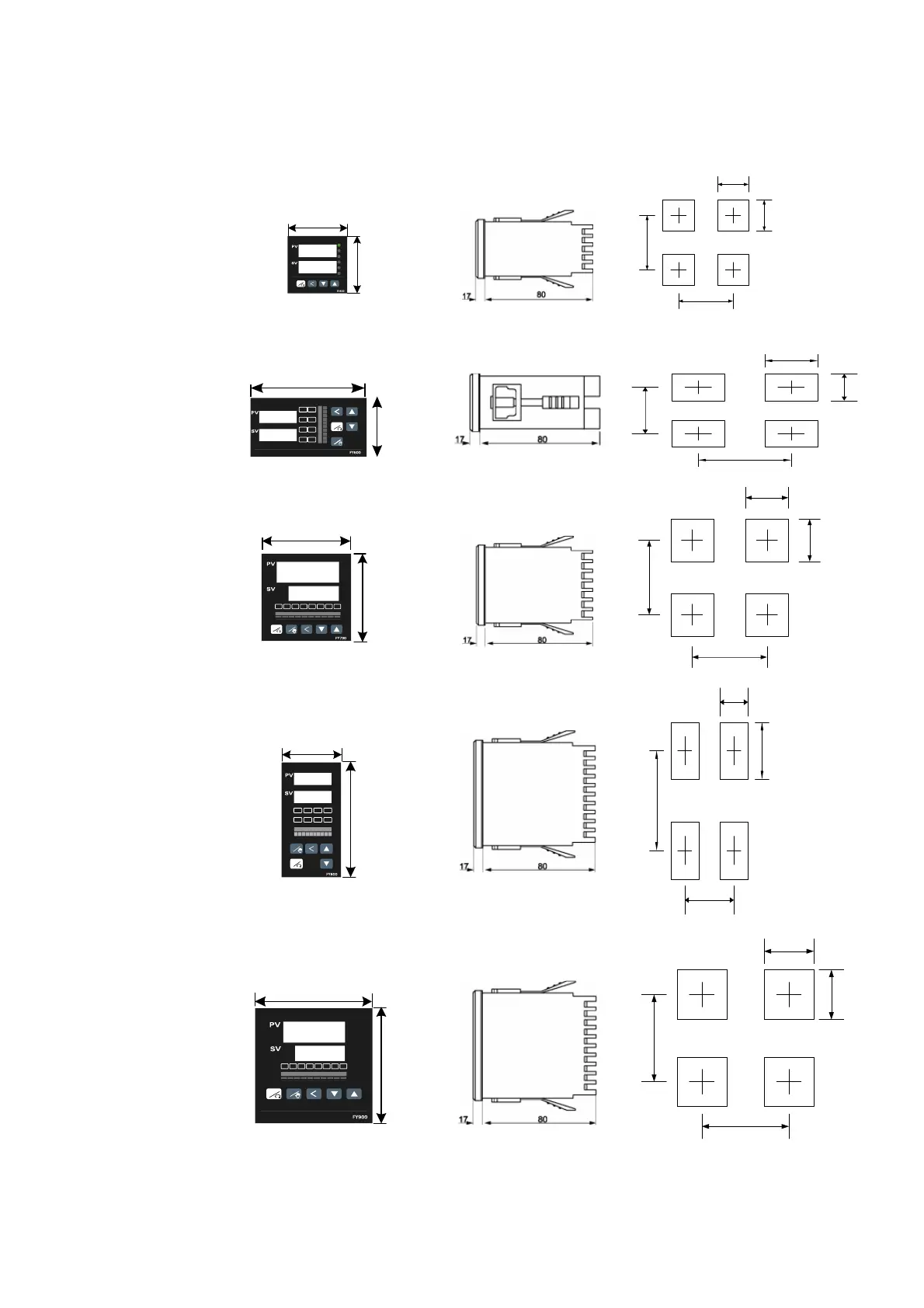

4. External dimension and panel cutout〈〈Unit：：mm〉〉
FY400
50
50
44.5+0.5
44.5+0.5
65
70
FY600
96
50
90.5+0.5
44.5+0.5
11
1
70
FY700
74
74
68.5+0.5
68.5+0.5
89
94
FY800
96
50
44.5+0.5
90.5+0.5
65
116
FY900
96
96
90.5+0.5
90.5+0.5
111
116
GOLINK
OT1
OT2
AT
AL1
AL2
PRO
RESET
