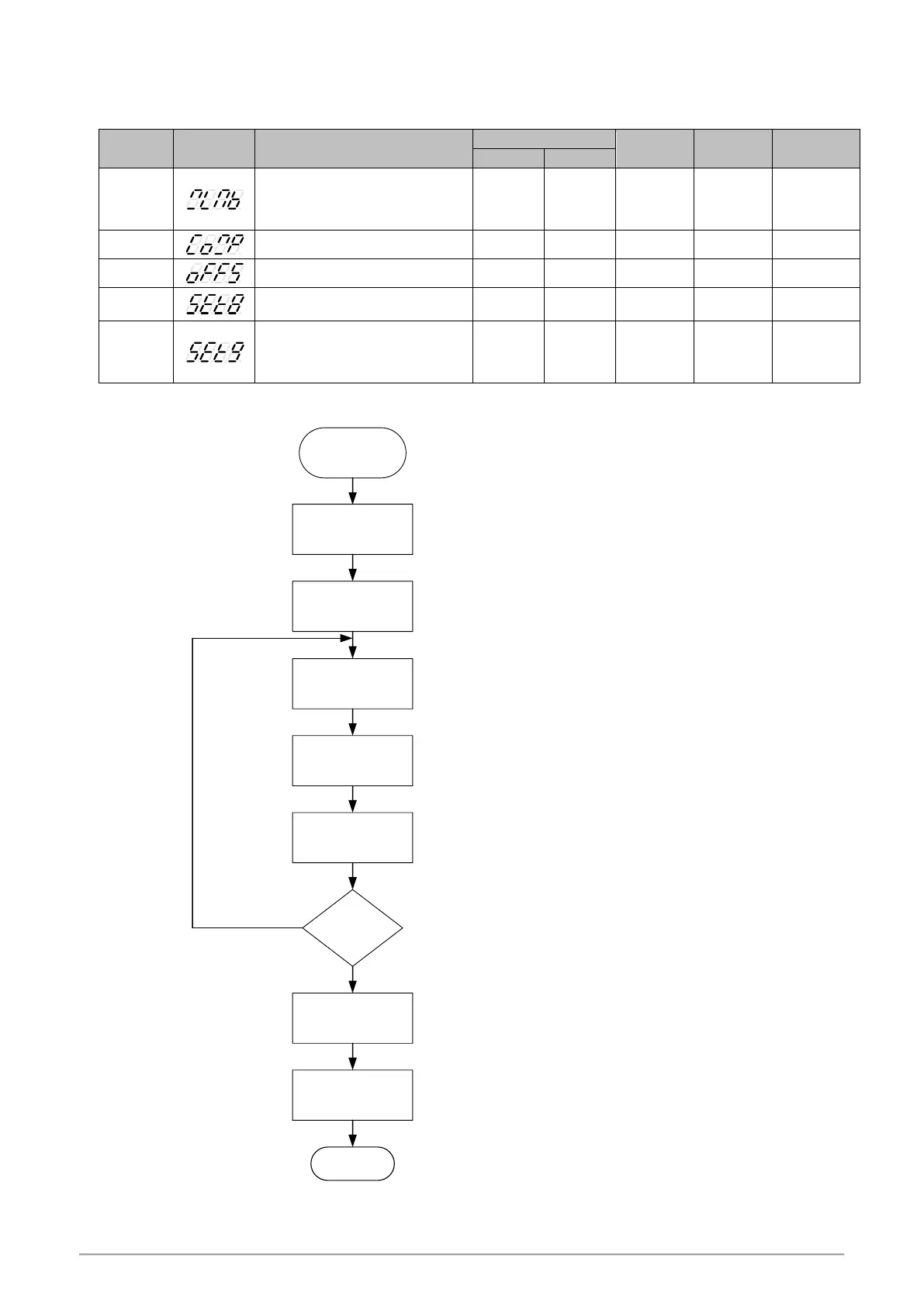

11.10 Piece Linear Compensation
Description
When the analog input signal source is nonlinear, using piece linear compensation method to compensate this signal, make it linearity
Parameter
Parameter
Symbol
Content
Range
Default
Level
Hide/Display
MAX
MIN
MLNB
Piece linear compensation segment
select
TRIP : leave setting loop
1~10 : segment select
10
TRIP
TRIP
Fast
SET8.4
COMP
Piece linear compare value
USPL
LSPL
LSPL
Fast
SET8.4
OFFS
Piece linear offset value
150.0
-150.0
0.0
Fast
SET8.4
SET8.4
0 : MLNB, COMP, OFFS hide
1 : MLNB, COMP, OFFS display
1
0
0
Level 4
---
SET9.1
0 : Disable piece linear
compensation
1 : Enable piece linear
compensation
1
0
0
Level 4
---
Edit flow-chat
START
Set MLNB
Set COMP
Set OFFS
Finish
?
MLNB = TRIP
Set SET9.1=1
YES
NO
SET8.4=1
END
Set SET9.1=0
