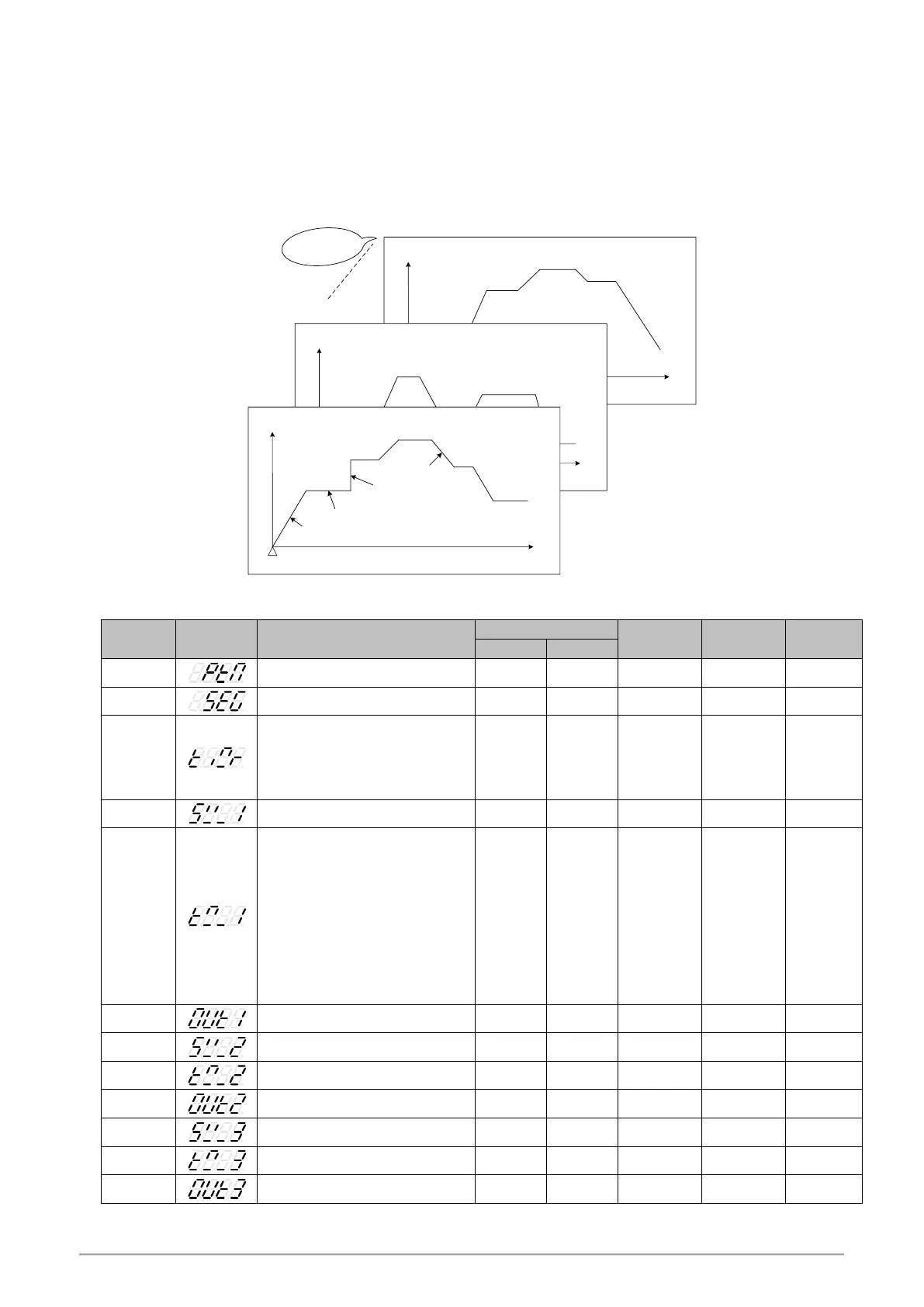

13. Programmable
Description
Programmable function is SV function that is variable to time, as user can set SV value to their needs according to time-based
variation curve, which is called program setting
1. There are at most 18 sets of pattern setting
2. Every set of pattern can at most have 8 segments
3. Every segment include 4 settings such as ramp, soak, step and continue
4. Pattern can be randomly linked up, as each pattern of program contains 144 segment, at most.
SV
time
第一段0(起
點)
SV
time
第一段0(起
點)
SV
time
Segment 1 (starting point)
Operation started in Program SV mode
Ramp(up)
Soak
Ramp(down)
Every set of pattern can at
most have 8 segments set
Program No.1
Program No.2
Program No.18
Step
Up to 18 programs
13.1 Parameter
Parameter
Symbol
Content
Range
Default
Level
Hide/
Display
MAX
MIN
PTN
Program pattern selection 1~18
18
1
1
Level 1
PROG=ON
SEG
Current program segment display
8
1
1
Level 1
PROG=ON
TIMR
Current segment remain time display
Upper area
：
display current
segment remain time
Down area
：
display current
segment executed time
99.59
0.00
0.00
Level 1
PROG=ON
SV_1
Segment 1 SV
USPL
LSPL
0.0
Level 1
PROG=ON
TM_1
Segment 1 execute time setting,
this parameter determines the link
between segment and segment or
pattern and pattern
END(-1) : program end in this
segment
0.00 : program step change in this
segment
0.01~99.58 : program in this
segment execute time
99.59 : program continue execute
this segment, no end
99.59
-1
0.00
Level 1
PROG=ON
OUT1
Segment 1 output limit
100.0
0.0
100.0
Level 1
PROG=ON
SV_2
Segment 2 SV
USPL
LSPL
0.0
Level 1
PROG=ON
TM_2
Segment 2 execute time setting
99.59
-1
0.00
Level 1
PROG=ON
OUT2
Segment 2 output limit
100.0
0.0
100.0
Level 1
PROG=ON
SV_3
Segment 3 SV
USPL
LSPL
0.0
Level 1
PROG=ON
TM_3
Segment 3 execute time setting
99.59
-1
0.00
Level 1
PROG=ON
OUT3
Segment 3 output limit
100.0
0.0
100.0
Level 1
PROG=ON
