Multitone Paging Interface Fitting Instruction 11
© Tait Electronics Limited July 2008
1.5.6 Fitting the Bracket
1. Locate these items:
b 302-00026-00 Multitone paging interface bracket.
c 3 x 349-02061-00 M3x6 panhead T10 screws.
2. Fit the bracket
b as shown below. One corner clips under a hook in
the chassis. The three screws
c are fitted and torqued to 50cm.N
(4.5in-lbs).

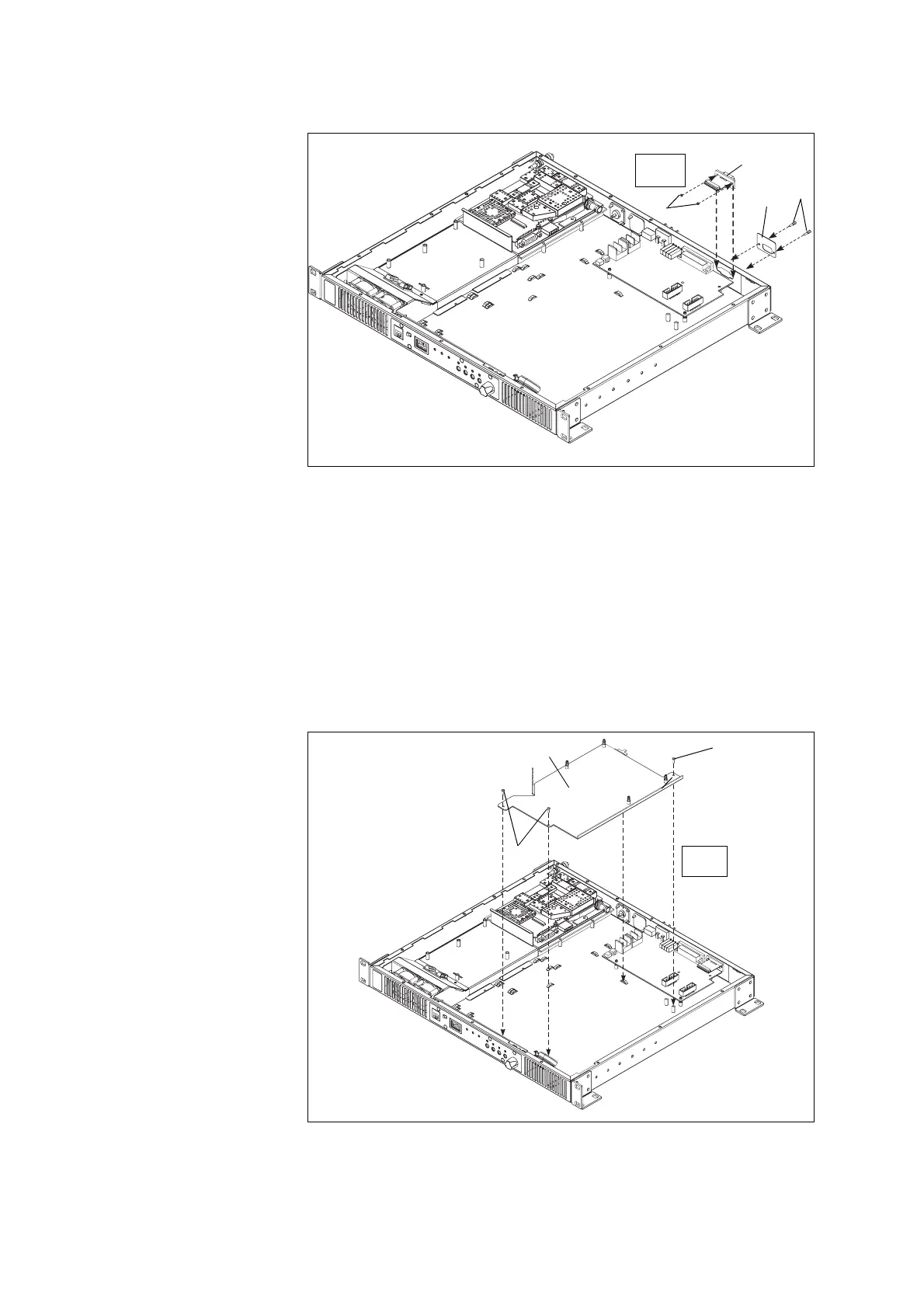

Figure 1.7 Fitting the EMC board
b
c
Hex
4.5lb·in
d
Cables not shown.
e
Figure 1.8 Fitting the bracket
b
c
Torx T10
4.5lb·in
Cables not shown.
c
