Multitone Paging Interface Fitting Instruction 13
© Tait Electronics Limited July 2008
1.5.8 Connecting the Cables
1. Locate the following items:
e 219-03186-00 Cable 16Way IDC to 15Way D-Range 240mm.
f 219-03187-00 Cable IDC 16Way to 16Way 190mm.
b 219-03188-00 Cable 18Way Ribbon IDC skt to m/m.
h 219-03189-00 Cable 12Way m/m to m/m 130mm.
2. Ensure the cable
g from the transmitter to the user interface is still
fitted.
3. Ensure the power cable
i from the transmitter to the SI board is still
fitted.
4. Ensure the RF cable
c from the transmitter to the rear panel is still
fitted.
5. Ensure the fan power cable
d from the SI board to the fan module is
still fitted.
6. Fit the cable
b to the user interface Micro-MaTch connector where
the user interface to SI board cable was removed from. Fit the other
end to the Multitone paging interface board PL2 as shown below.
7. Fit the cable
h from the EMC board to the paging interface board
SK101 as shown below.
8. Fit the cable
f from the SI board J101 to the paging interface board
PL101A as shown below.
9. Fit the cable
e from the paging interface board PL100A to the
transmitter module’s D-range as shown below.

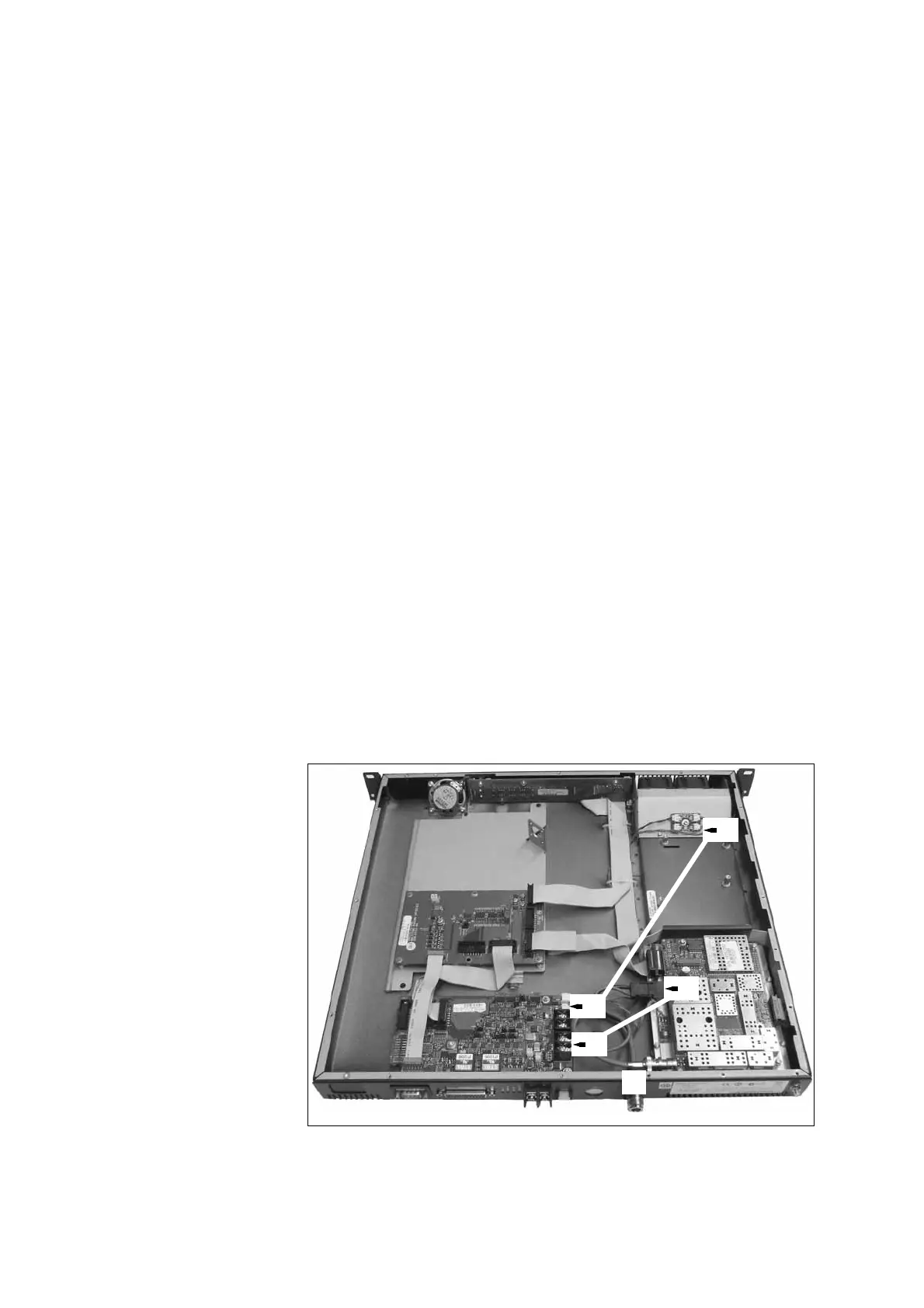

Figure 1.11 Fitting the cables
H
F
E
B
G
C
D
I
I
D
To Next Page
