6 Multitone Paging Interface Fitting Instruction
© Tait Electronics Limited July 2008
Saving the Base
Station
Configuration
Before replacing a module in the base station, you should decide whether
you need to save its configuration data. If you are unsure whether you have
a record of the configuration, use the Programming Application to read the
base station and save the configuration files before removing any modules.
Once you have replaced the module, you will be able to restore the original
configuration by programming the saved configuration back into the base
station.
1.5.1 Removing the Multitone Paging Transmitter
Important The modules in the Multitone paging transmitter are not
hot-pluggable. It is recommended the tray is removed from
the rack before any modules are removed.
1. Remove the fuse
e at the rear of the Multitone paging transmitter to
disconnect the Multitone paging transmitter from DC power.
2. Use a Philips #2 screwdriver to disconnect the cables from the DC
power connector
f.
3. Disconnect the antenna connectors
d.
4. Disconnect any other connectors.
5. Disconnect the ground cable from the ground point
c.
6. Use a PZ2 Pozidriv screwdriver to remove the four M6 screws, and
remove the Multitone paging transmitter from the rack.
7. Use a Torx T10 screwdriver to remove from the cover the 15
countersunk screws. Remove the tray cover
b.

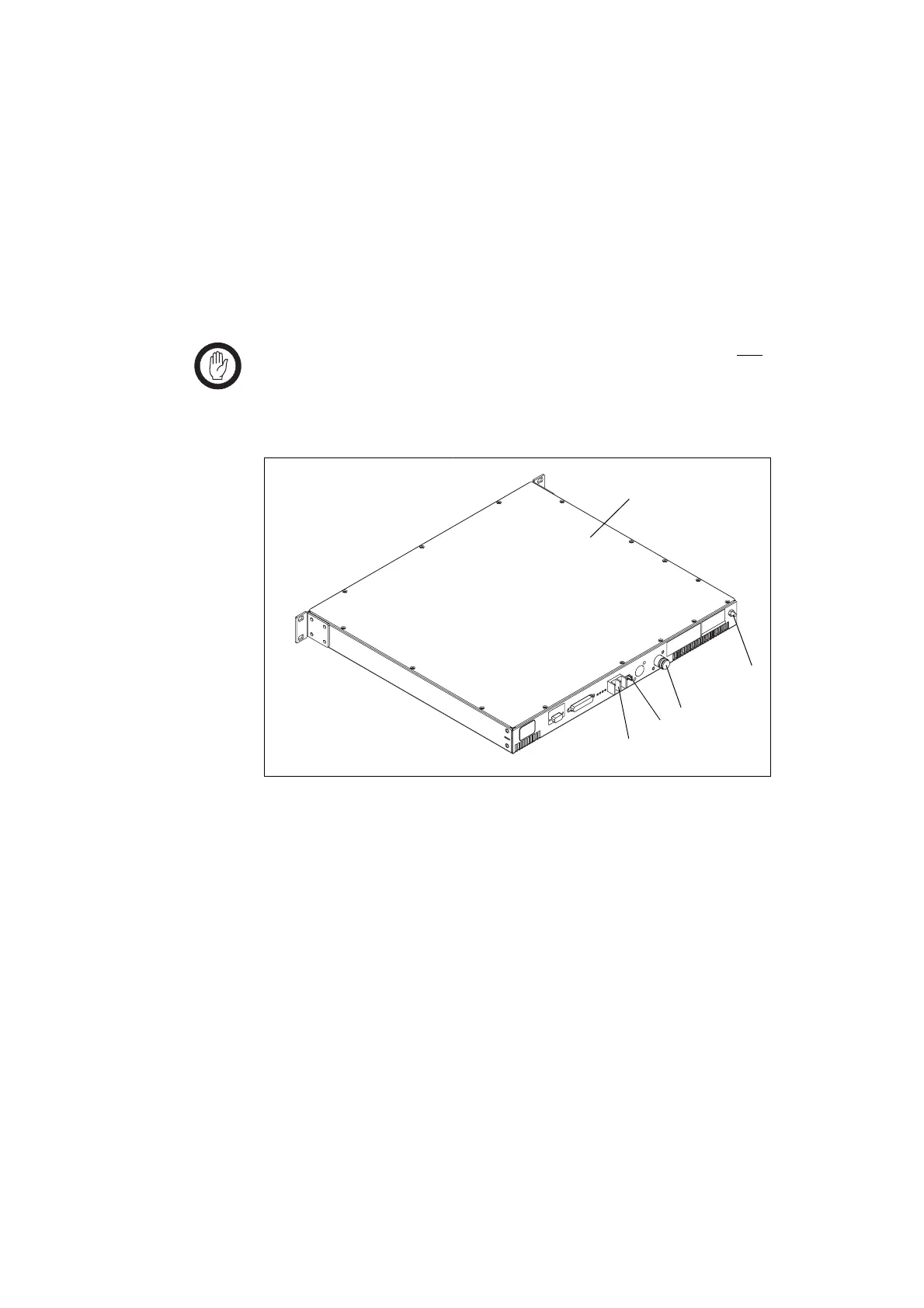

Figure 1.2 Opening the tray
b
e
f
d
c
