TB9100 Calibration Software User’s Manual Basic Tasks 7

Connecting the Calibration Software

Before you can begin calibrating, you must establish a connection between the

calibration software and the reciter.

To connect to the reciter

1. Make sure that the equipment is set up but that the reciter is not powered

up.

2. Start the Calibration Software program, and check that the correct COM

port is selected.

3. Click Connect to start the connection process.

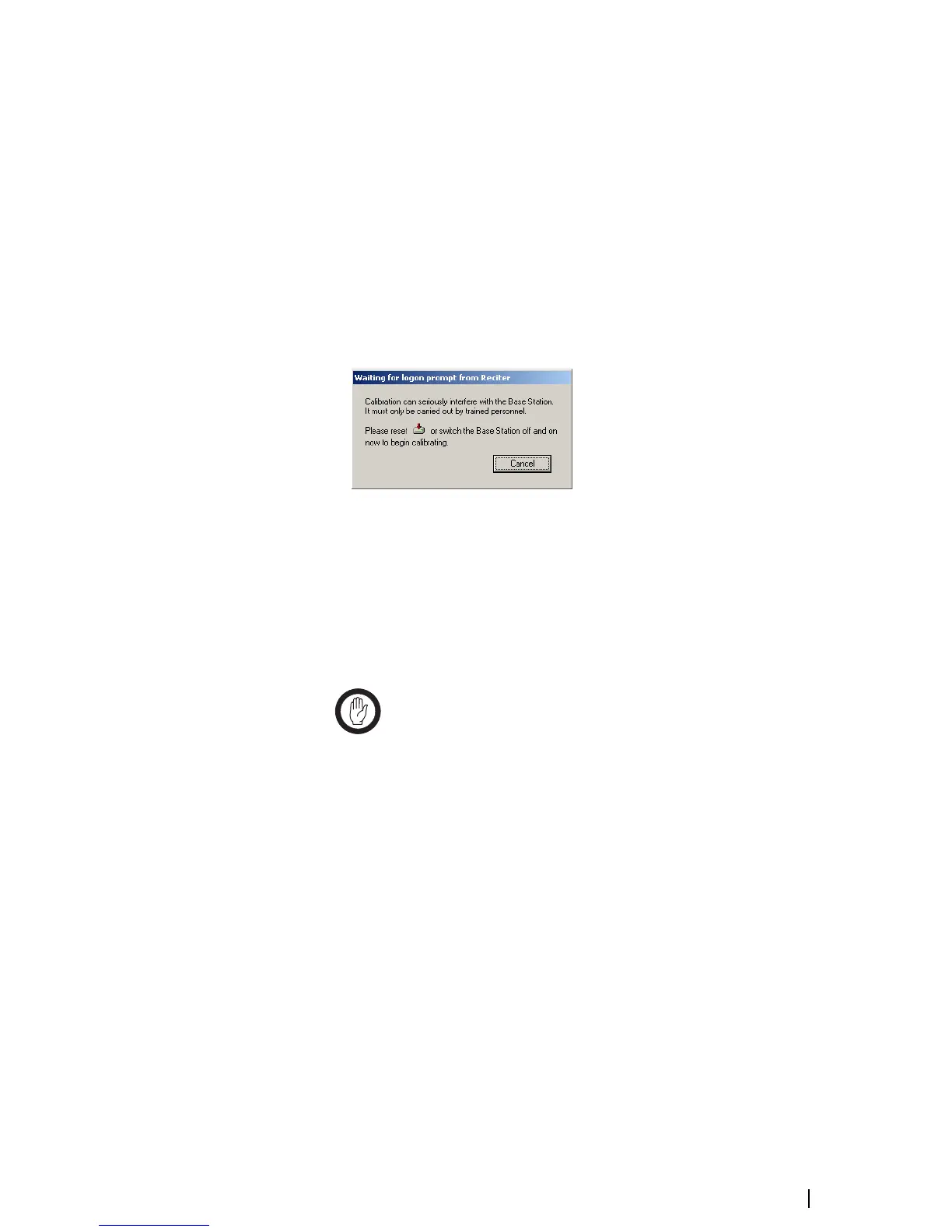

4. When you see the “Waiting for logon prompt from Reciter” screen, power

up the reciter. If it is already on, turn it off, and then on.

5. When the Calibration Software program has successfully connected to the

reciter (this can take up to 30 seconds), the Calibration Wizards are

displayed in the main window.

You are now ready to tune and calibrate the reciter.

Disconnecting from the Base Station/Reciter

Once calibration is completed, end the process as follows.

1. Click Disconnect.

Important: Disconnecting when a calibration process is not

completed may leave the base station in an uncalibrated state.

2. Exit the Calibration Software.

3. Turn the base station off and then on again to take it out of calibration

mode. The base station is now in Standby mode, ready for configuration.

Troubleshooting

Application Errors All application errors are recorded in a log file called

“CCTMCOMMSLog.log”. The data, time, location, and any other useful

information is stored in this file, which may be helpful when troubleshooting.

The file is saved in the Calibration Software’s application folder.

Verifying the

Software Version

If you need to verify the version of the Calibration Software, select

Help > About.

Commands

Record

All the commands sent and received by Calibration Software are saved in a file

called “CCTM.log”. The date, time, command number, and parameters are all

stored in this file, which may be helpful when troubleshooting.

The file is also saved in the Logfiles subfolder and stores up to 1000 of the most

recent logged items.
