47
CONTROLS

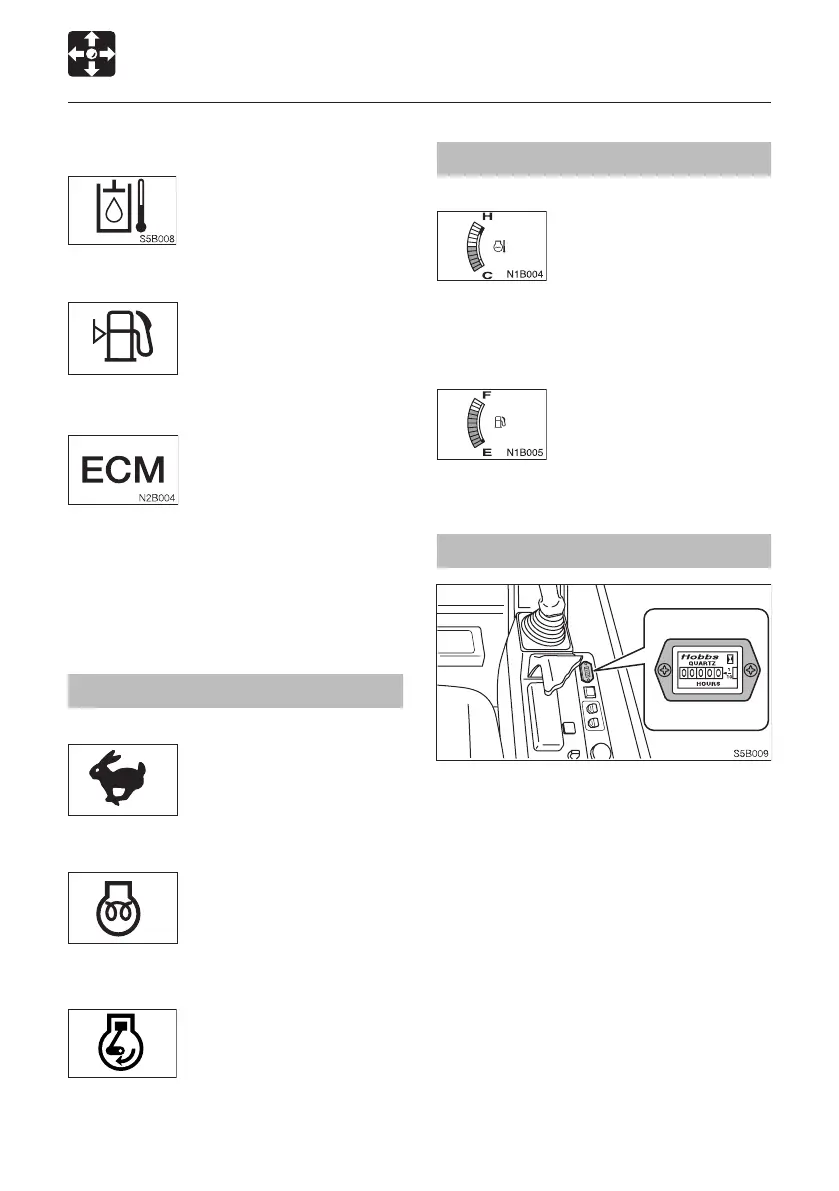

Indicators
11. Travel Speed Lamp
This lamp lights when the
travel speed switch is set to
2nd (high speed).
12. Glow Lamp
This lamp turns off when
engine preheating is
completed.
13. Deceleration Lamp
When the deceleration
button is pressed or the
engine speed is set to low
idle, this lamp lights up to
indicate.
8. —
9. Fuel Level Warning Lamp
This lamp flashes when the
fuel level is low while the
starter switch is in the ON
position.
10. ECM Warning Lamp
This lamp flashes and an
alarm sounds if the ECM
(Electronic Control Module)
detects an engine problem
when the starter switch is in the ON position.
The LCD screen is interrupted with an ECM
error code indicating the problem detected.
Meters
14. Water Temperature Gauge
This gauge indicates the
temperature of the engine
coolant water.
The lamps should be within
the green range during machine operation.
The red range indicates overheating.
15. Fuel Gauge
This gauge indicates the
amount of fuel in the tank.
Be sure to top off the tank
before running out of fuel.
Hour Meter
This meter displays the total engine running
time in hours.
The rightmost digit indicates tenths of hours
(6 minutes).
Set the inspection and maintenance intervals
according to the time displayed on the hour
meter.
Instrument Cluster
