49
CONTROLS
Instrument Cluster

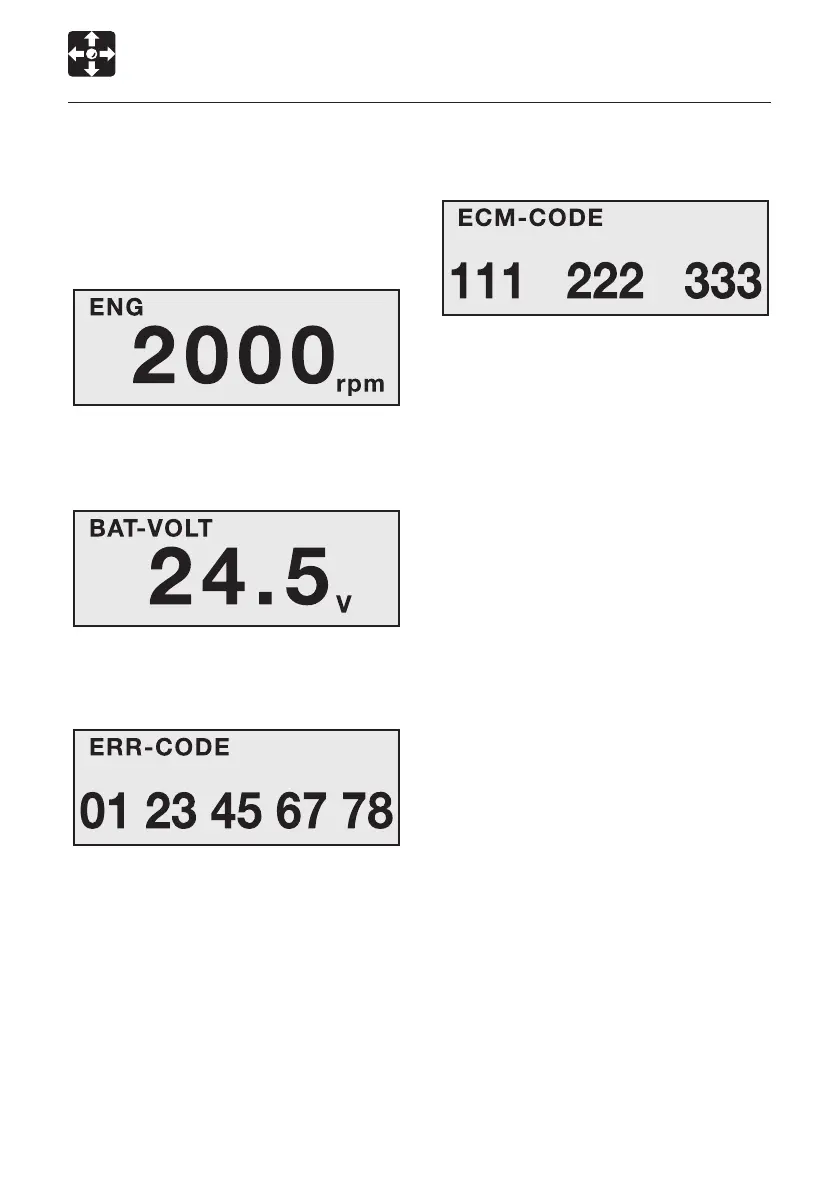

Displaying the data mode
The display changes as the DATA button (2)
is pressed.
1. Engine revolution
2. Battery voltage
3. Error code
Displays five error codes, with the latest
code in the left.
Refer to page 140 “Error Code List”.
4. Engine ECM error code
Displays three error codes, with the latest
code in the left.
IMPORTANT: If an error code appears,
immediately stop the operation and
contact a Takeuchi sales or service outlet
for help.
5. Press the button to return to the top
screen or press and hold the button for
three seconds or more to display the next
data.
6. Engine model
7. Engine serial number
8. Engine controller part number
9. Software version control number
10. Returns to the top screen.
