Rollshutter Installation Instructions, 25
©Copyright TALIUS

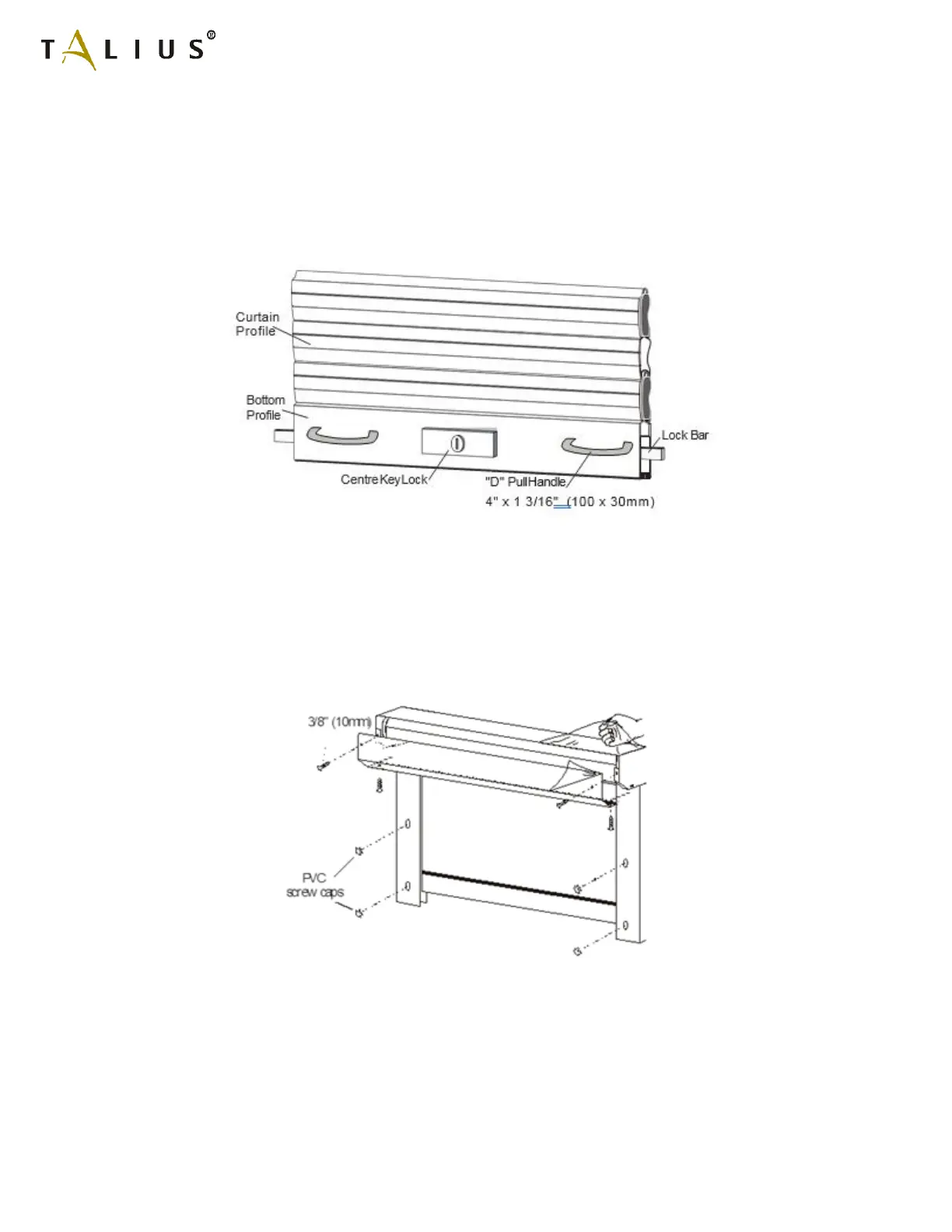

Problem: The centre key locks do not lock the Rollshutter curtain down.
Solution: i) The guide rails may have been installed upside down. Check if there is a slot in the bottom of the guide rail's
channel. If it is on top instead, remove the guide rail and turn it upside down. Note that some guide rails are not
symmetrical and therefore it may be necessary to interchange right with left guide rail.
ii) The bottoms of the guide rails may have been spaced apart too far during installation. Measure the distance between
the guide rails on the bottom and compare it to the measurement on top where they meet the panel box. If the bottom
dimension is larger than the top dimension move the guide rails closer together
Section 15: Finishing
15.1) Pull off the protective cover foils from the panel box top and bottom and other parts that may be covered. Slip
the lip of the panel box lid into the corresponding groove of the panel box top and attach it with four 3/8" (10mm) long
screws. If space requirements do not permit the use of all four screws, choose either only the two lower ones or the
two upper ones.
15.2) PVC Screw Caps: Insert the PVC screw caps over the mounting holes in the one piece guide rails (Pro or SV Series)
15.3) Caulking: Caulking around the top of the panel box and guild rails will help to prevent water from penetrating
behind the Rollshutter and to ensure a clean finished appearance.
15.4) Wipe clean as necessary.
The installation is now complete. Every installation is different and there may be some questions. Do not hesitate to
call us from site for support, 1-800-665-5550. A properly installed Rollshutter will operate trouble-free for many years
to come.
