Rollshutter Installation Instructions, 27
©Copyright TALIUS
Appendix A: Safe Rail Servicing
Follow these instructions if the two-part safe rail needs to be disassembled for servicing.
Order a Talius safe rail tool or use a similar existing tool. Ensure that any tool surface contacting an out- side surface of
the guide rail is adequately covered with a non-marring material.

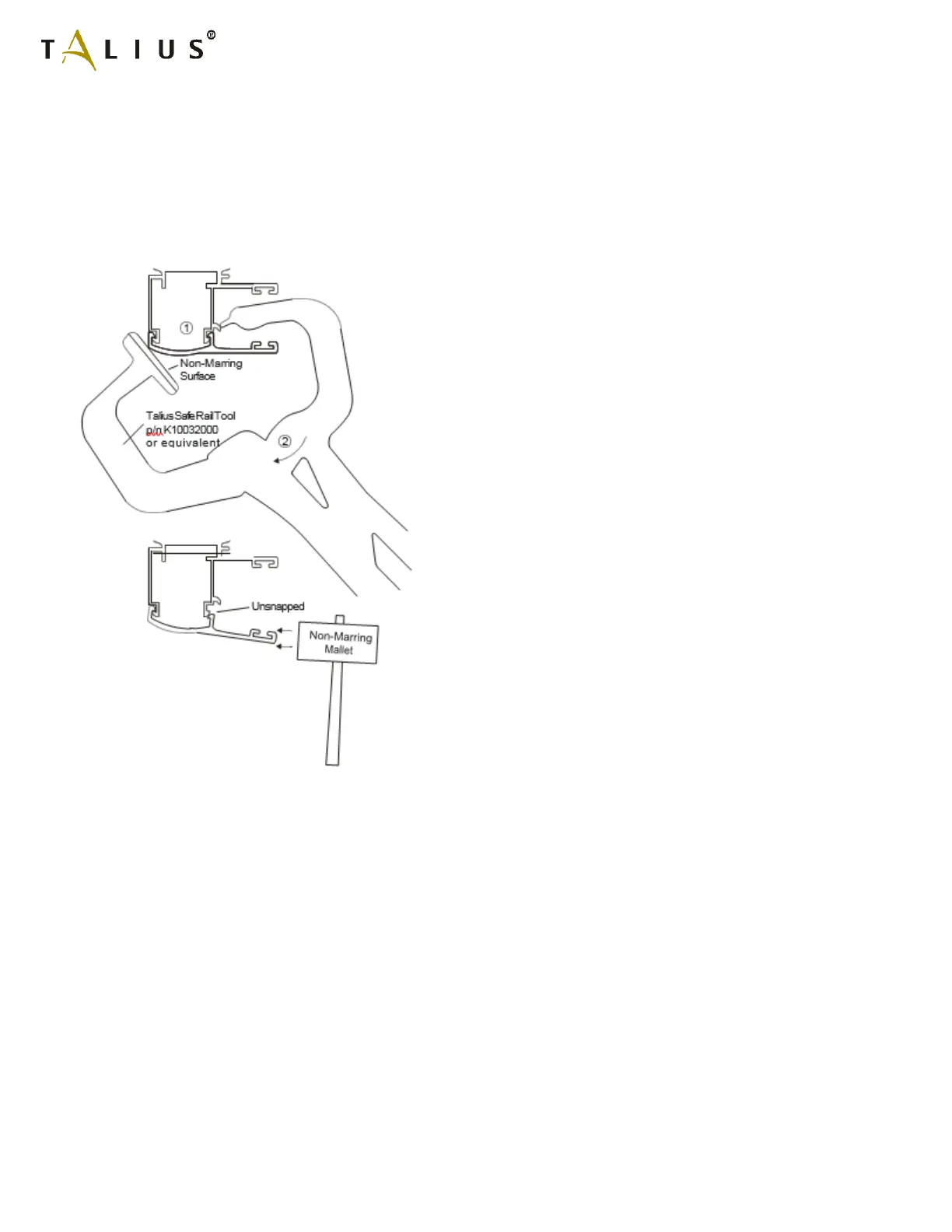

Start at the bottom of the guide rail. Using the safe rail tool, compress the safe rail mount (1) so that the safe rail cap
becomes disengaged. Use a twisting motion (2) to disengage the inner snap and begin pulling the cap off. Continue
working towards the top of the rail until the safe rail cap is completely unsnapped from the safe rail mount. Use a mallet
with a soft, non-marring head to finish disengaging the safe rail cap.
