Inserting the ribbon cassette User guide

22

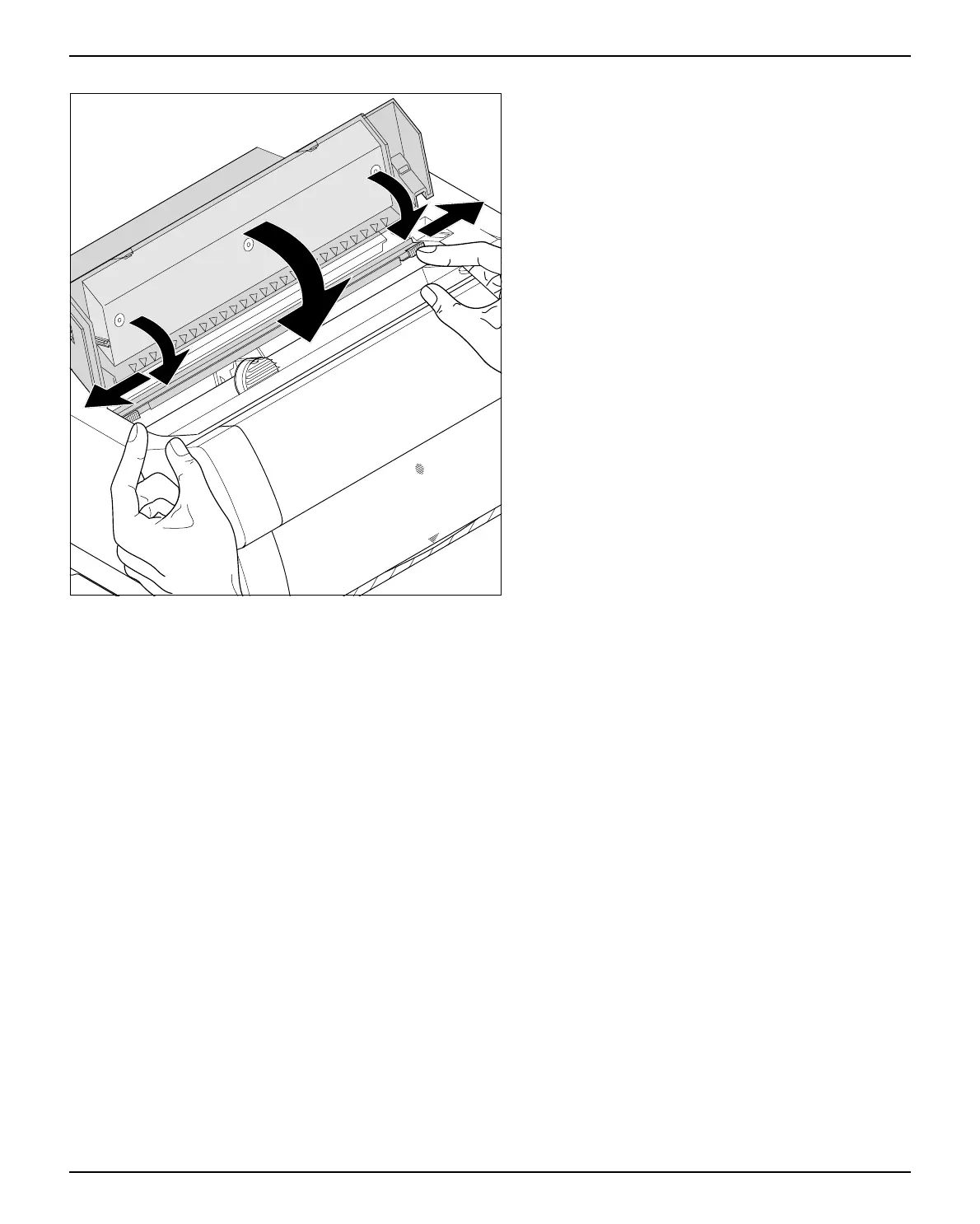

Press the friction mechanism down until it clicks

into place.

Close the top cover.
