Talsa F14s - 11 Labelled Diagram and Spare Parts List; Labelled Diagram of the Machine

HYDRAULIC PISTON FILLERS F14/25/35/50 INSTALLATION AND OPERATING MANUAL
© Talsabell s.a. All rights reserved. EN - 25 V-1.3 last revision: 07/2018
11. Labelled diagram and spare parts list

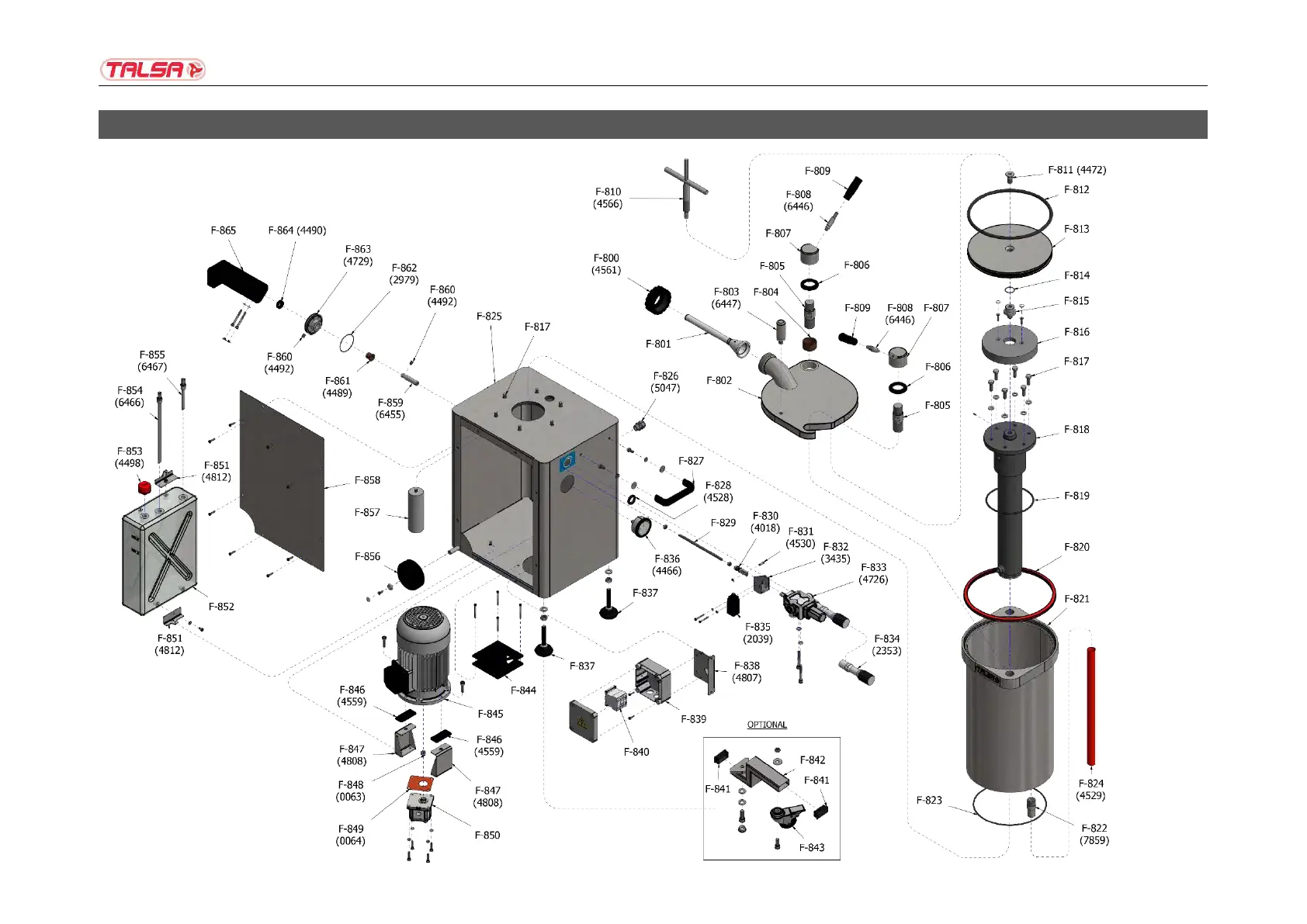

11.1 Labelled diagram of the machine
