- 33 -
Unlock the key and remove the cover
pull straight out to remove it.

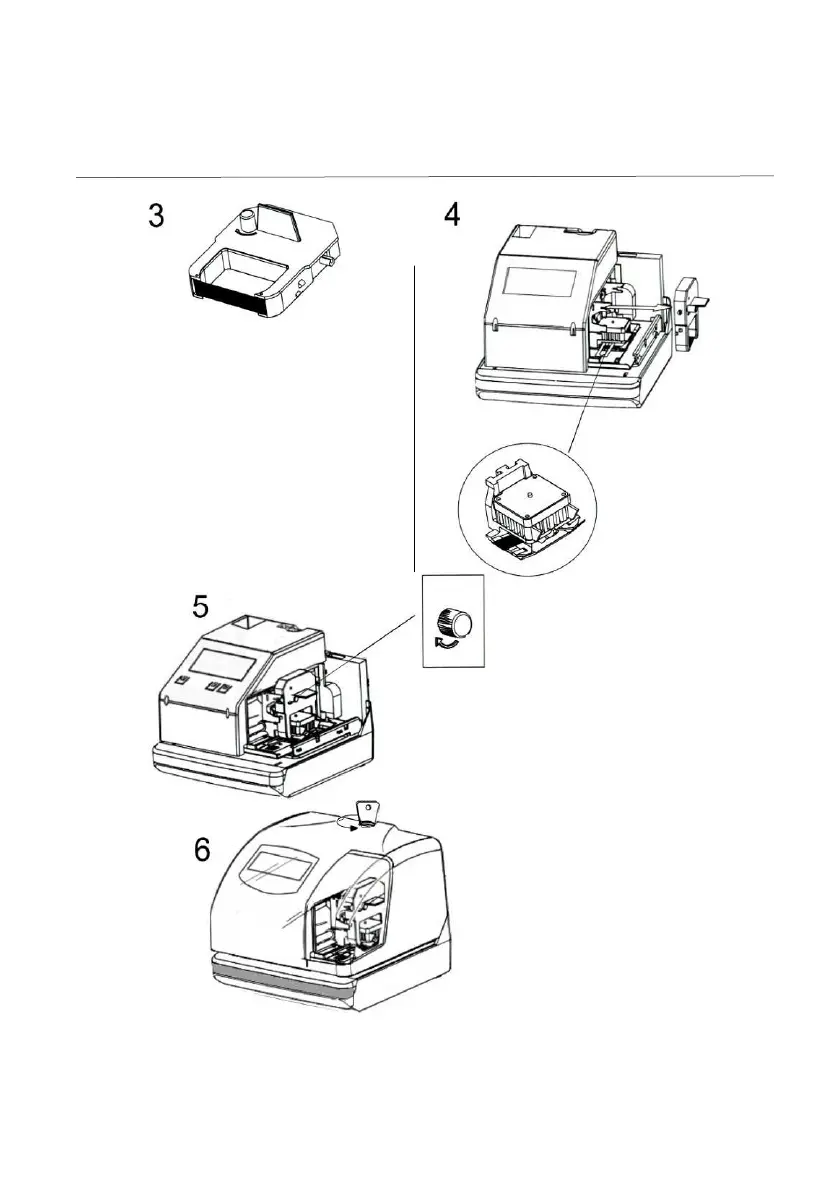

23. Replacing The Ribbon Cartridge (cont’d)
Turn the knob of the new cassette
in the direction of the arrow
(clockwise) to tighten the ribbon.
NOTICE: Install the cartridge so
that the ribbon is between the
print head and the ribbon mask.
Printing will not come out
properly is the ribbon is placed
behind the ribbon mask.
Place the cassette inside the
Time Stamp as shown in the
figure. Push the ribbon until it
snaps into position. Turning the
knob on the ribbon cartridge
may make installation easier.
Turn the knob of the cartridge
in the direction of the arrow to
tighten the ribbon
Replace the cover and lock
