@ STANDBY/ON button
When the power is in standby, press this button to
turn it ON. When ON, press and hold this button to put
the power into standby. (See “Startup & shutdown” on
page 32.)
# DC IN 12V jack
Connect the dedicated AC adaptor (PS-1225L).
$ PHONES jack (stereo mini jack)
Connect headphones. Use the PHONES LEVEL knob
on the top panel to adjust the volume.
% LINE OUT jacks (unbalanced RCA)
Use these to connect a monitoring system (powered
speakers or an amplifier with speakers).
^ INPUT B connector (balanced XLR)
This is an input source when the INPUT B switch on
the top panel is set to MIC/LINE.
This is an XLR-type mic/line input jack.
You can also connect a condenser microphone that
requires phantom power.
(1: GND, 2: HOT, 3: COLD)
NOTE
Do not input signals into both the XLR and standard jacks
at the same time.
& INPUT B jack (balanced TRS standard jack)
This is an input source when the INPUT B switch on
the top panel is set to MIC/LINE.
You can input a line-level signal (balanced/
unbalanced) or mic signal (balanced/unbalanced).
* INPUT A jack (balanced TRS standard jack)
This is an input source when the INPUT A switch on
the top panel is set to MIC/LINE or GUITAR.
You can input a guitar/line-level signal (balanced/
unbalanced) or mic signal (balanced/unbalanced).
( INPUT A connector (balanced XLR)
This is an input source when the INPUT A switch on
the top panel is set to MIC/LINE.
This is an XLR-type mic/line input jack.
You can also connect a condenser microphone that
requires phantom power.
(1: GND, 2: HOT, 3: COLD)
NOTE
Do not input signals into both the XLR and standard jacks
at the same time.
) REMOTE jack (2.5-mm TS jack)
Connect a TASCAM RC-3F foot switch (sold separately)
to allow a variety of remote control operations,
including punch in/out (start and stop recording).

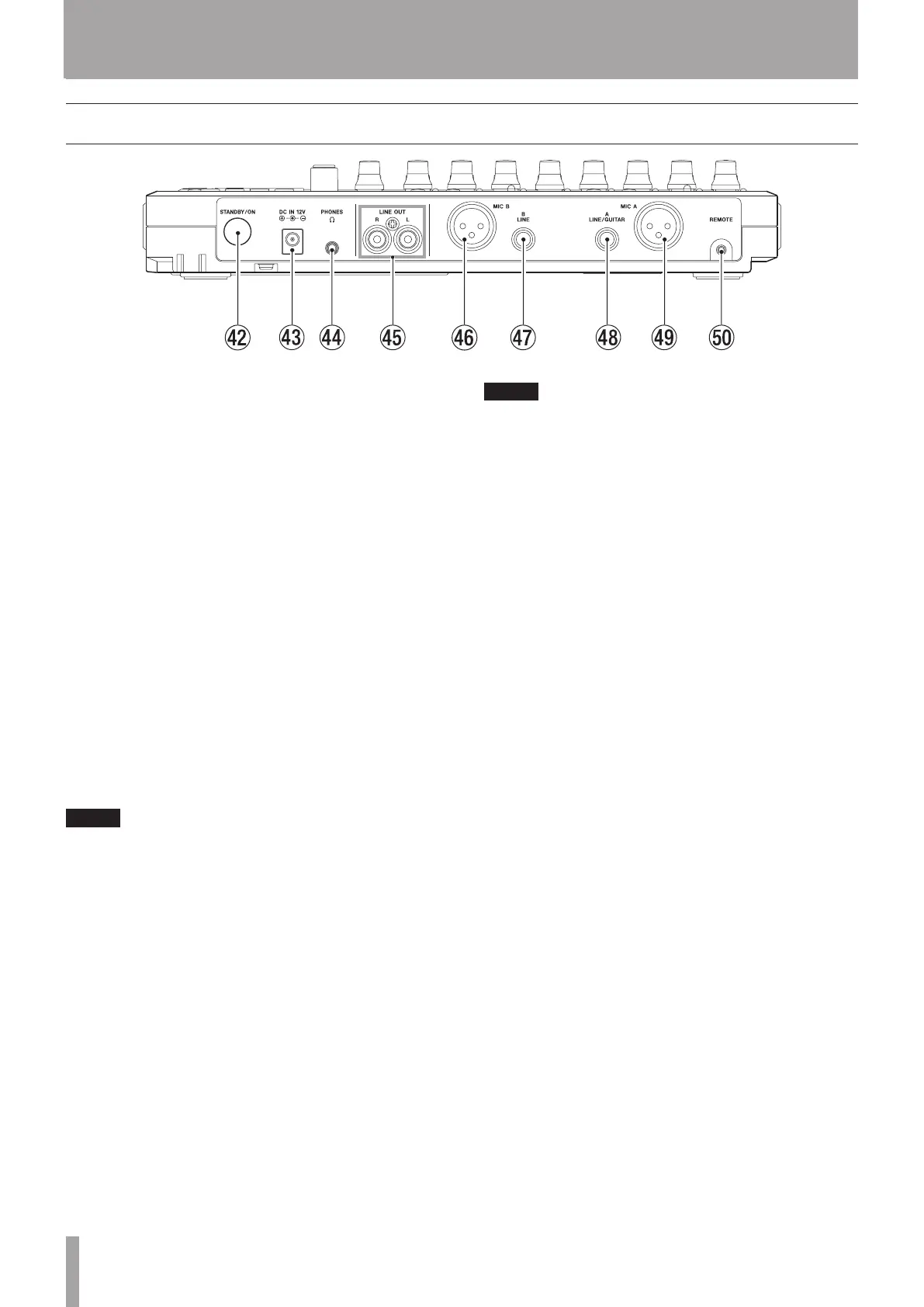

Rear panel
3 – Names and Functions of Parts
