Tascam Digital Portastudio DP-03 User Manual

28 TASCAM DP-03

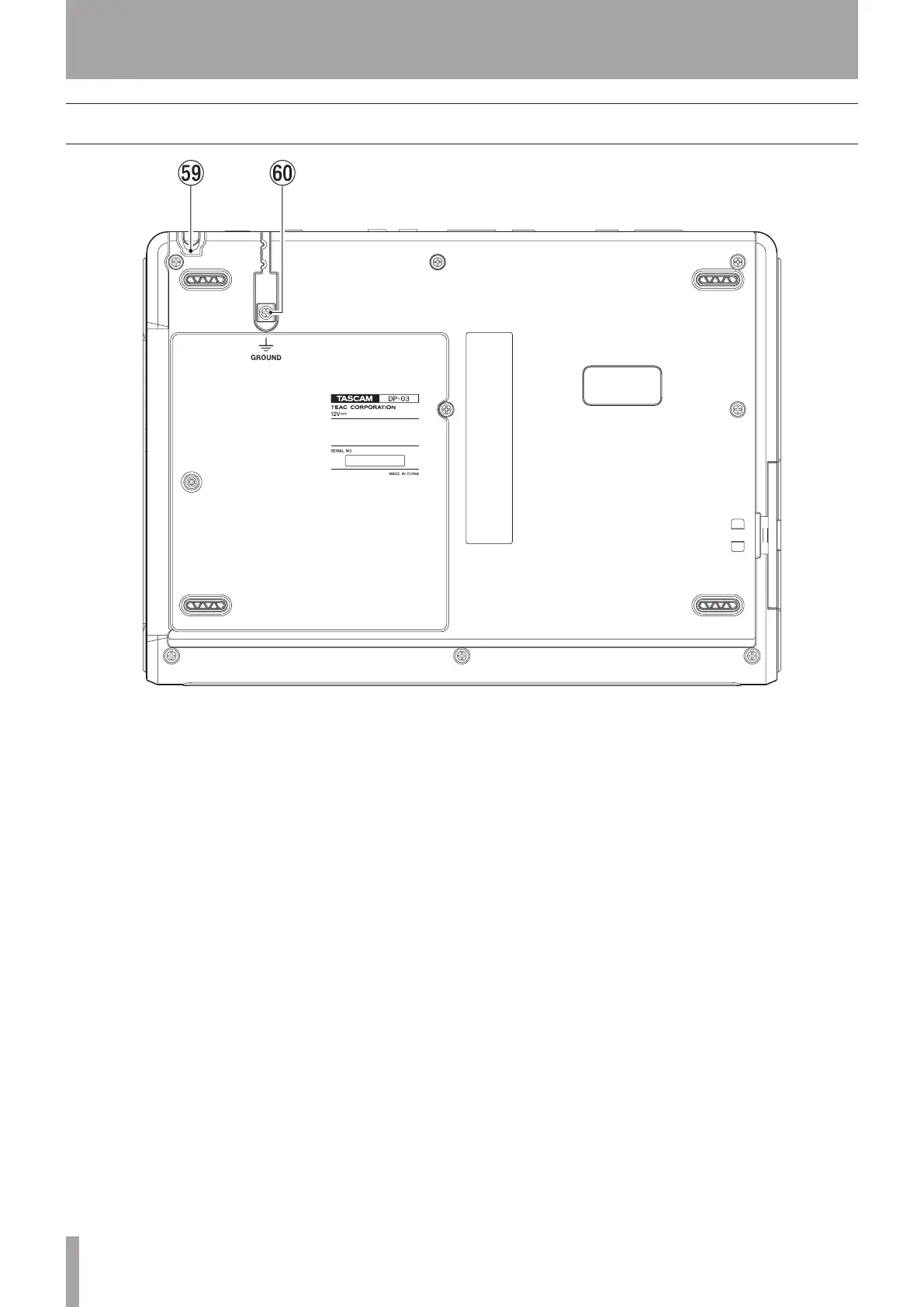

Bottom panel
O Cord holder
Wrap the cord of the included TASCAM PS-1225L
AC adaptor around this to prevent the plug from
becoming disconnected accidentally.
P GROUND connector
Depending on the use environment, you might
hear noise when monitoring. If this occurs, use this
connector to ground the unit. (Please prepare the
necessary wiring yourself.)
3 – Names and Functions of Parts

Tascam Digital Portastudio DP-03 Specifications

General

Tracks	8
Simultaneous Recording Tracks	2
Simultaneous Playback Tracks	8
Recording Media	SD/SDHC Card
A/D Resolution	16-bit
Sampling Rate	44.1kHz
Phantom Power	Yes
EQ	3-band EQ per track
Recording Format	WAV (16-bit/44.1kHz)
Inputs	2 x XLR/TRS Combo
Effects	Reverb
USB	Yes
Power Supply	AC Adapter (PS-P520)
Weight	1.4 kg
Display	LCD
Built-in Microphones	Stereo
