DM-3200 Release Notes
6 TASCAM DM-3200 Release Notes V1.50
When the separately sold IF-FW/DM MKII option card is
installed, you can now transfer up to 32 channels of I/O (at
44.1kHz/48kHz/88.2kHz/96kHz) between your computer
and the DM-3200.
For details on the IF-FW MKII, refer to the IF-FW MKII
operating manual.
TDIF Hi-Speed support
When operating at a high sampling rate (88.1k/96kHz),
the high speed mode of TDIF-1 connectors 1-3 and the
separately sold IF-TD/DM option card are now supported.
Even when operating at a high sampling rate, one TDIF-1
connector can transfer eight channels of digital audio I/O,
and when the IF-TD/DM is used in conjunction with the
X-48, a maximum of forty channels of digital audio I/O
can be transferred.
TDIF-1 1-3

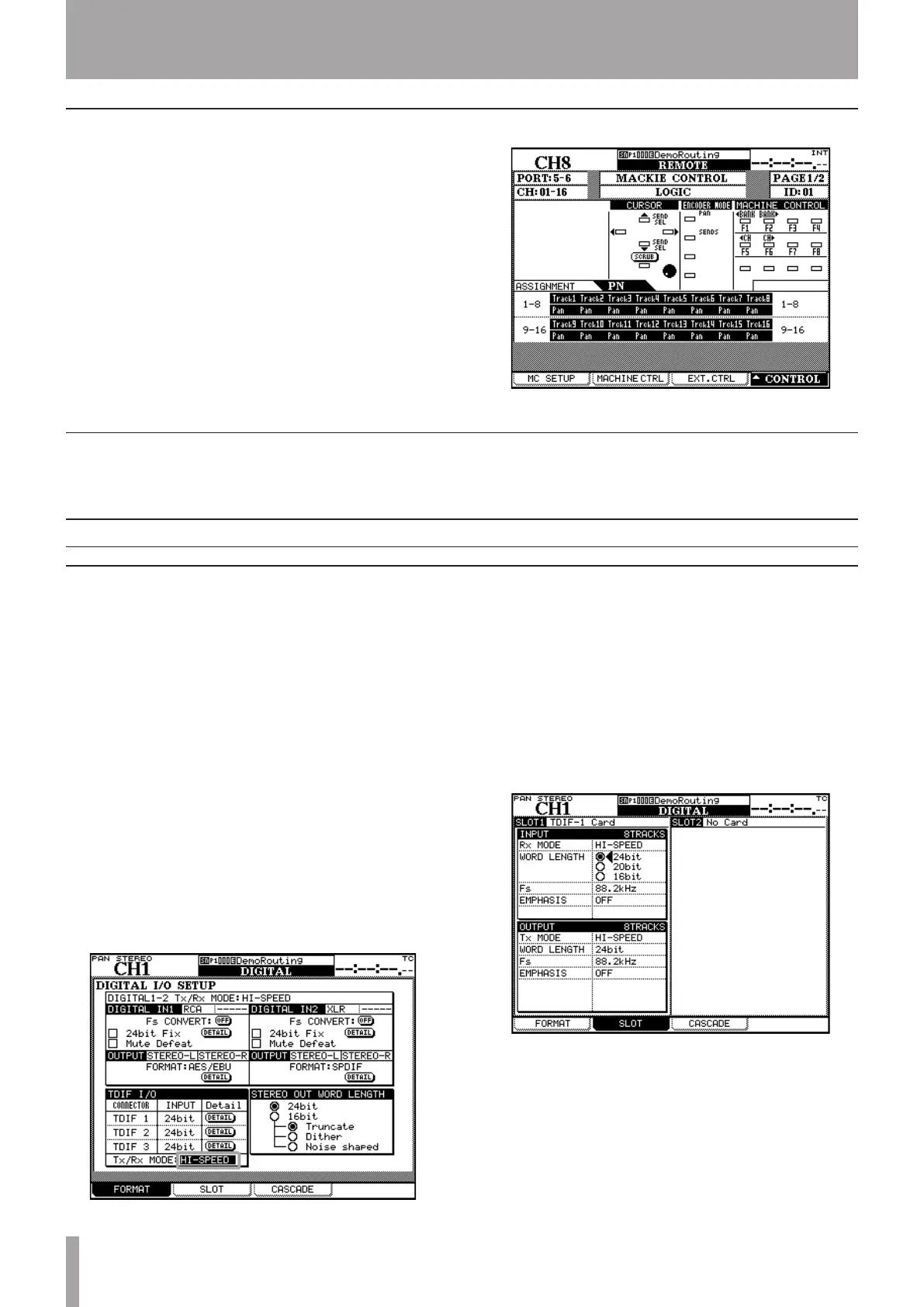

Figure 6 DIGITAL>FORMAT screen
ª
In the DIGITAL>FORMAT screen TDIF I/O Tx/Rx MODE
section, you can now switch between high speed and dual
line for TDIF-1 connectors 1-3. This selection will switch
all three of the TDIF-1 connectors.
When using high speed operation, the 8 I/O setting will
be available for TDIF input/output in the ROUTING screen;
when using dual line, only the 4 I/O setting will be available.
IF-TD/DM
Figure 7 DIGITAL>SLOT screen
An indication of HI-SPEED is shown in the TDIF-1 Card
screen of the DIGITAL>SLOT screen.
IF-TD/DM supports only high speed; it does not support
dual line.
New Features in V1.30
IF-FW MKII support
DAW control screen display of channels 1-16
In each DAW control screen, you can now view all sixteen
channels in a single screen.
The following illustration is an example screen for Logic
control.
Figure 5 Example screen for Logic control
This version of the DM-3200 is now fully supported by Windows Vista 32 bit and Vista 64 bit.
Windows Vista
