Taski swingo 350B User Manual

67

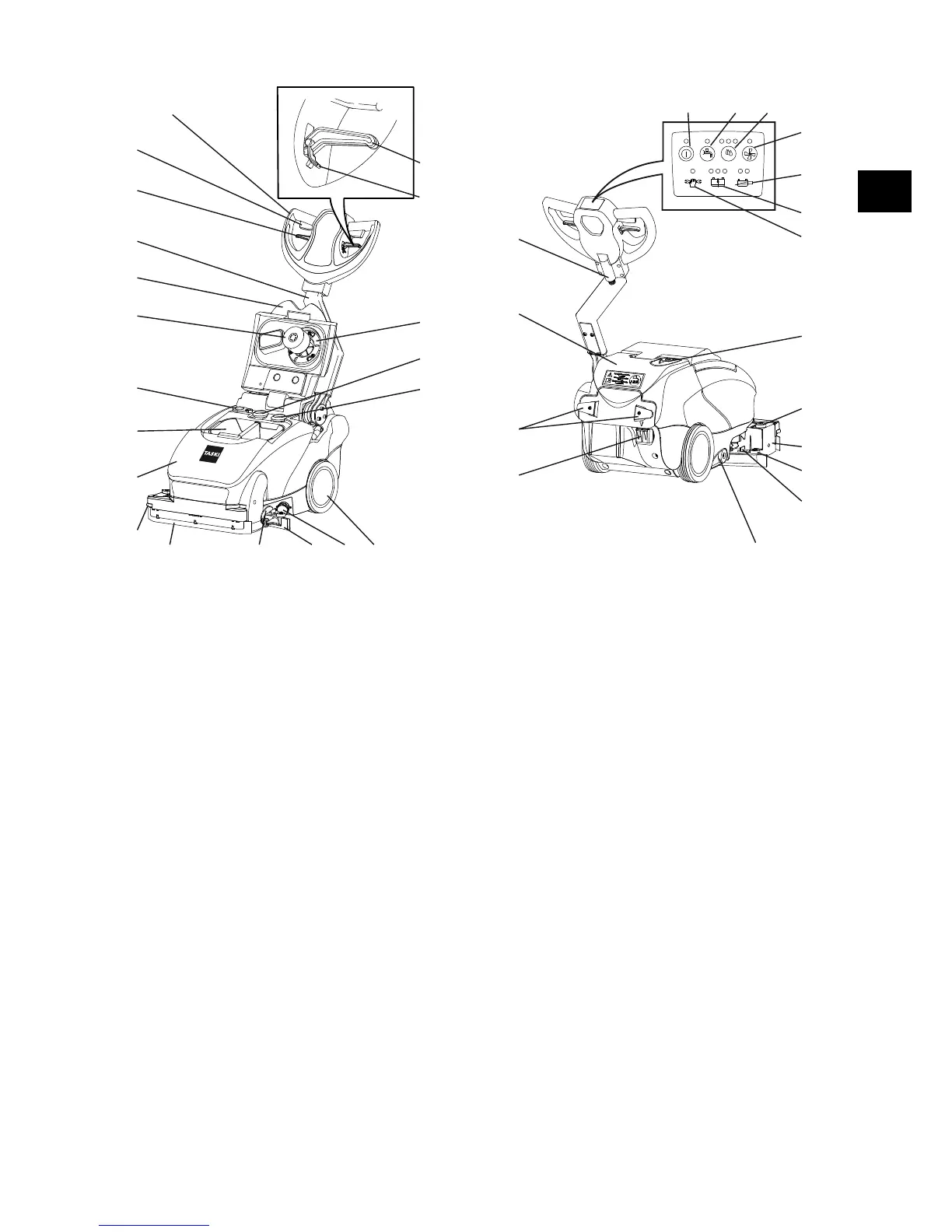

Structural layout
1 Driving handle
2 Operating lever (brush drive ON/OFF)
3 Scraper action lever
4 Guide bar
5 Tank lid
6 Float
7 Drain opening
8 Dirt sieve
9 Recovery tank
10 Side-mounted deflecting roller
11 Scraper
12 Parking support left
13 Suction nozzle
14 Fresh water tank filter
15 Transport wheels
16 Turbine hose
17 Suction hose
18 Suction filter
19 Adjusting lever (for free moving of the steel guide
bar)
20 Adjusting lever (for steel guide bar inclination)
21 Feed of the electronic lines for the controller
22 Fresh water tank
23 Toolstrap for cable from battery charger
24 Battery disconnection socket
25 Parking support right
26 Locking handle squeegee
27 Deflector roller
28 Brush holder
29 Triangular handle for unlocking the brush holder
30 Fresh water tank filling opening (rubber cap)
31 Service display
32 Battery charging level indicator (fault, charging,
charged)
33 Battery indicator
34 Suction unit button (ON/OFF)
35 Cleaning solution supply amount button (3 levels)
36 Cleaning solution supply button (ON/OFF)
37 Main switch button (ON/OFF)
6
5
7
9
18
4
11
12 151413
17
16
8
10
2
20
19
3
1
34
33
32
31
37 36 35
22
24
29
30
28
27
26
21
25
23
EN

Taski swingo 350B Specifications

General

Brand	Taski
Model	swingo 350B
Category	Scrubber
Language	English
