12. PROGRAMMING OF THE STROKE
Duringthisphasethecurrentabsorptioncurveisdetectedformanagementof
obstaclecontrol(ampere-stop).Inthisphaseisdeterminedthebehaviourthatwe
wanttheautomationhaswhenitwillbeinthestandardoperation.
P1
CLOSE
J6

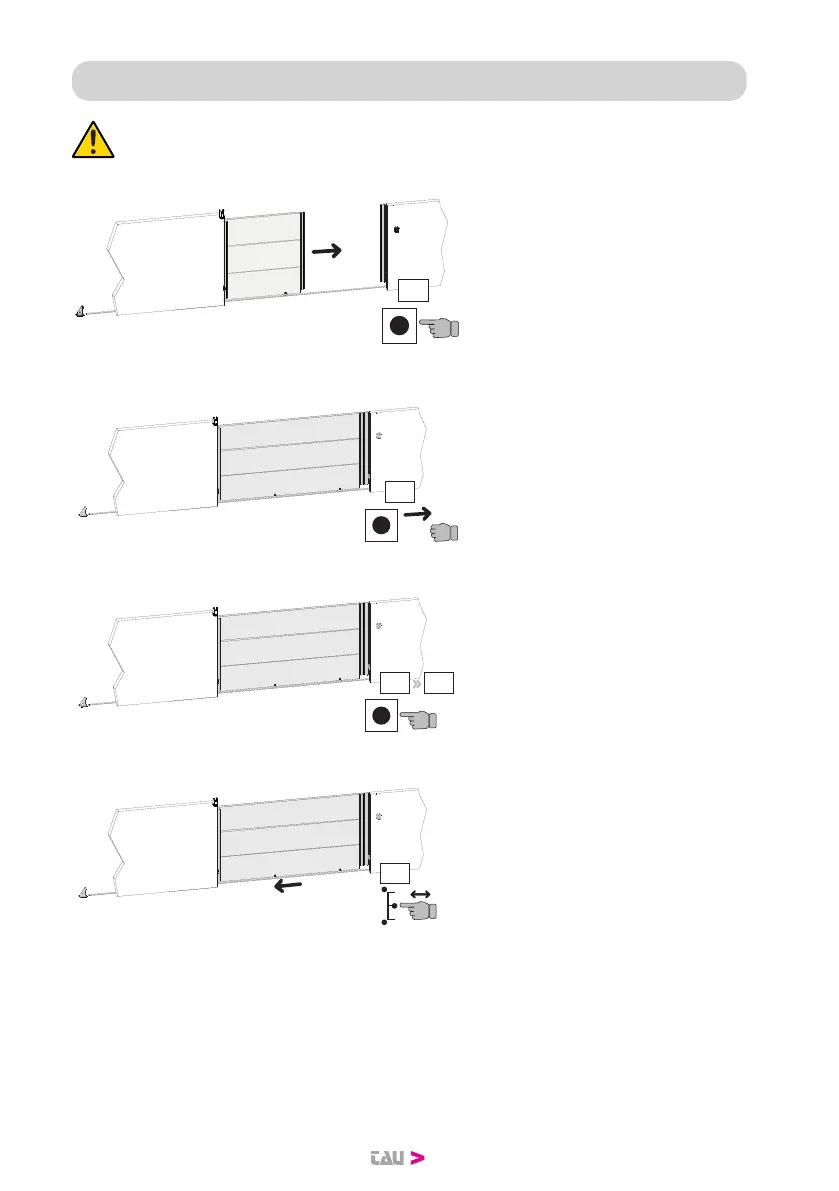

1. Check that:
- by pressing the P1 key, J6 ap-
pears on the display and the motor
begins to close
- the DL9 LED turns o when clos-
ing is complete.
If the gate opens, invert the cable
from terminal 13 - 15.
P1
CLOSE
CH
2. Make sure that the message
CH = Door closed is shown on the
display, and release the P1 key.
P3
CLOSE
CH tE
3. To reach the memorization of
the stroke, press the P3 key until
the message tE appears on the
display. Release the P3 key.
START
tE
OPEN
4. Press and release the START key.
The gate begins to open at cycle
speed.
