Taylor 104 - Beater Door Assembly Components

4-2
PARTS
Model 104
Parts
4

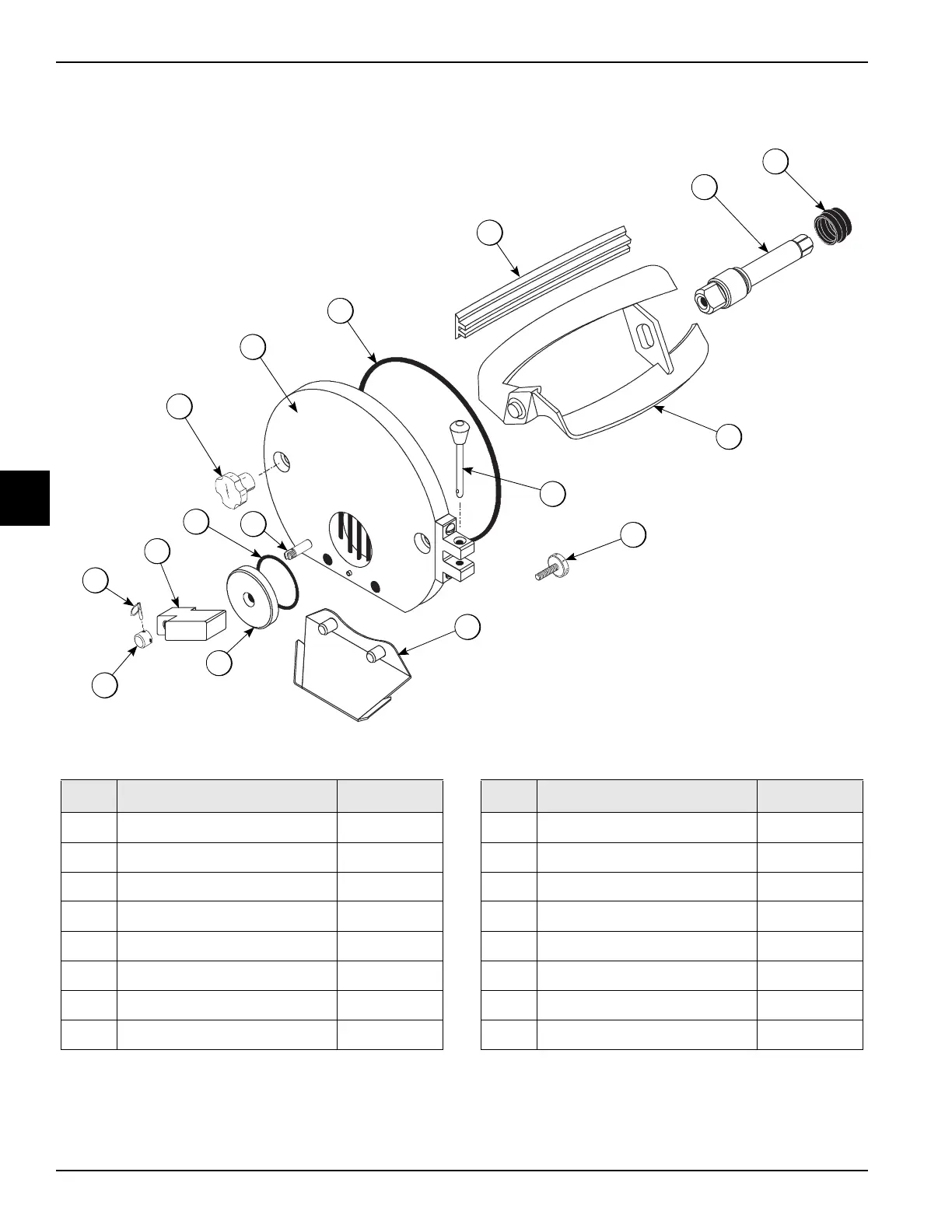

Beater Door Assembly
Figure 4-2
3
11
10
6
5
4
2
1
7
8
9
16
13
14
15
12
Item Description Part No.
1 Seal- Drive Shaft 032560
2 Shaft- Beater 033498
3 Beater Assembly X33417
4 Blade- Scraper 7- 1/4” L 033277
5 O-ring 5- 7/16 OD x 5- 1/4 033276
6 Door A.- Partial X37710
7 Pin A.- Pivot 1- 3/4 Grip X37705
8 Screw- Stem 034662
Item Description Part No.
9 Spout A.- Drip X33422
10 Nut- Stud 008614
11 O-ring 2- 1/4 OD x .139 W 030890
12 Plate- Draw 027811
13 Arm- Handle 030042
14 Pin- Quick Release 3/16 027813
15 Cap- Stem 027812
16 Stem- Freezer Cover 034661
