Taylor 430 Service Manual

31
Model 430
Parts
150204
Operator Parts Identification

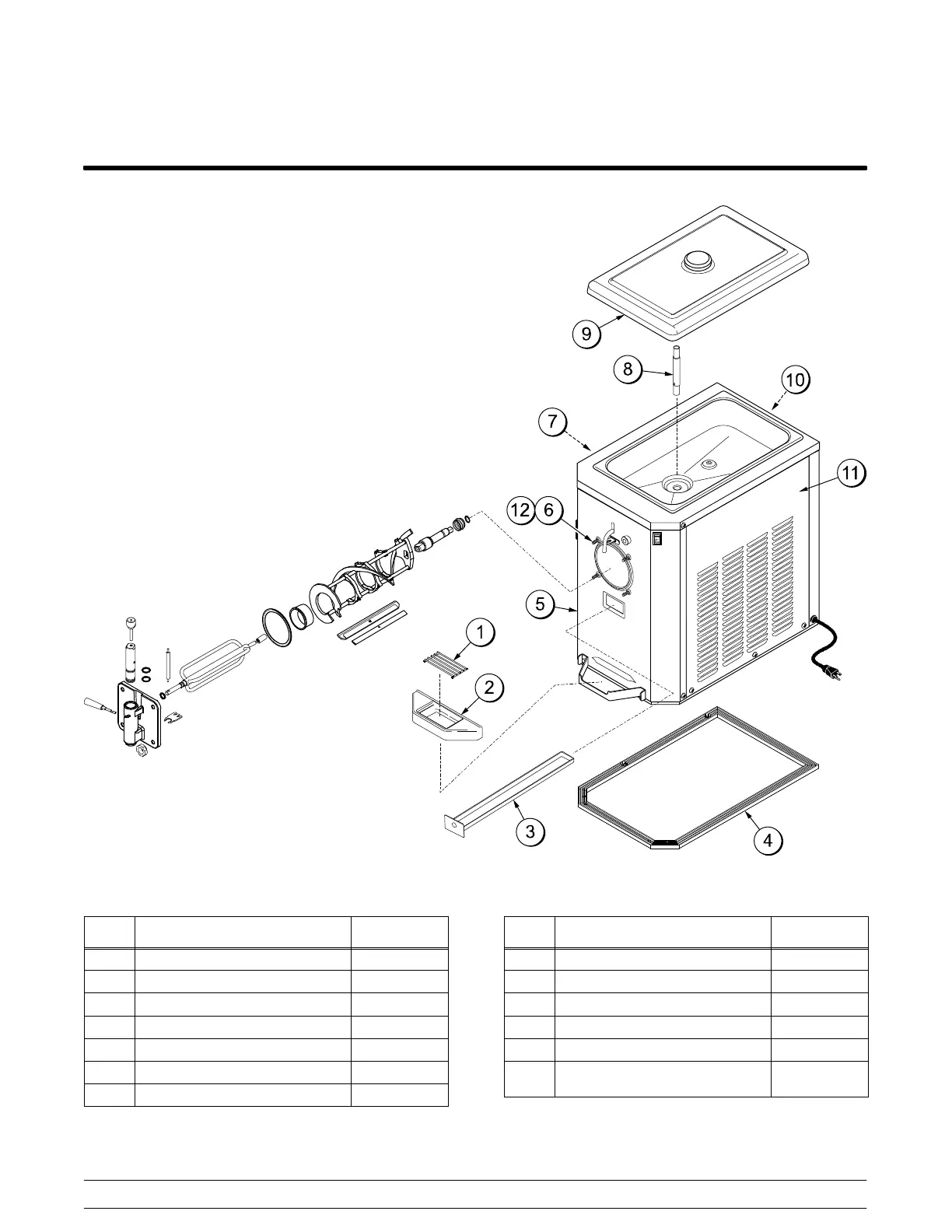

Figure 7
ITEM DESCRIPTION PART NO.
1 SHIELD−SPLASH 049320
2 TRAY−DRIP 049319
3 PAN−DRIP 17−1/4”LONG 027504
4 GASKET−BASE PAN 049420
5 PANEL−A.−FRONT X50678
6 STUD−NOSE CONE 013496
7 PANEL−SIDE L 049639
ITEM DESCRIPTION PART NO.
8 TUBE−FEED−13/32 HOLE 025663−10
9 COVER A.−BLACK INS X49679−BLA
10 PANEL−REAR 049325
11 PANEL−SIDE R 049640
12 WASHER−FREEZER STUD 049032
*13 SCREW−10X7/16
(BASE PAN GASKET)
066234
*NOT SHOWN

Taylor 430 Specifications

General

Weight	Unknown
Freezing Capacity	Unknown
Production Capacity	Unknown
Mix Hopper Capacity	Unknown
Dimensions	Unknown
Electrical	Unknown
Capacity	Unknown
Temperature Range	Unknown
Defrost Type	Unknown
Power Source	Unknown
Dimensions (H x W x D)	59.5" (1511 mm) x 21" (534 mm) x 31.5" (800 mm)
