Pump Operation
The pump operates under the following conditions:
Pump Key
When the PUMP key is pressed, the pump is active by itself
or with the WASH mode of operation.
Soft Serve Mix Pumps
The soft serve mix pump will be active for 30 seconds
whenever the AUTO mode is entered. If a MIX OUT
condition forces a side of the machine into the STANDBY
mode of operation, the mix pump will not be active.
Mix Pump Draw Timer
During the AUTO mode, the mix pump will operate for 10
seconds after every draw of soft serve product.

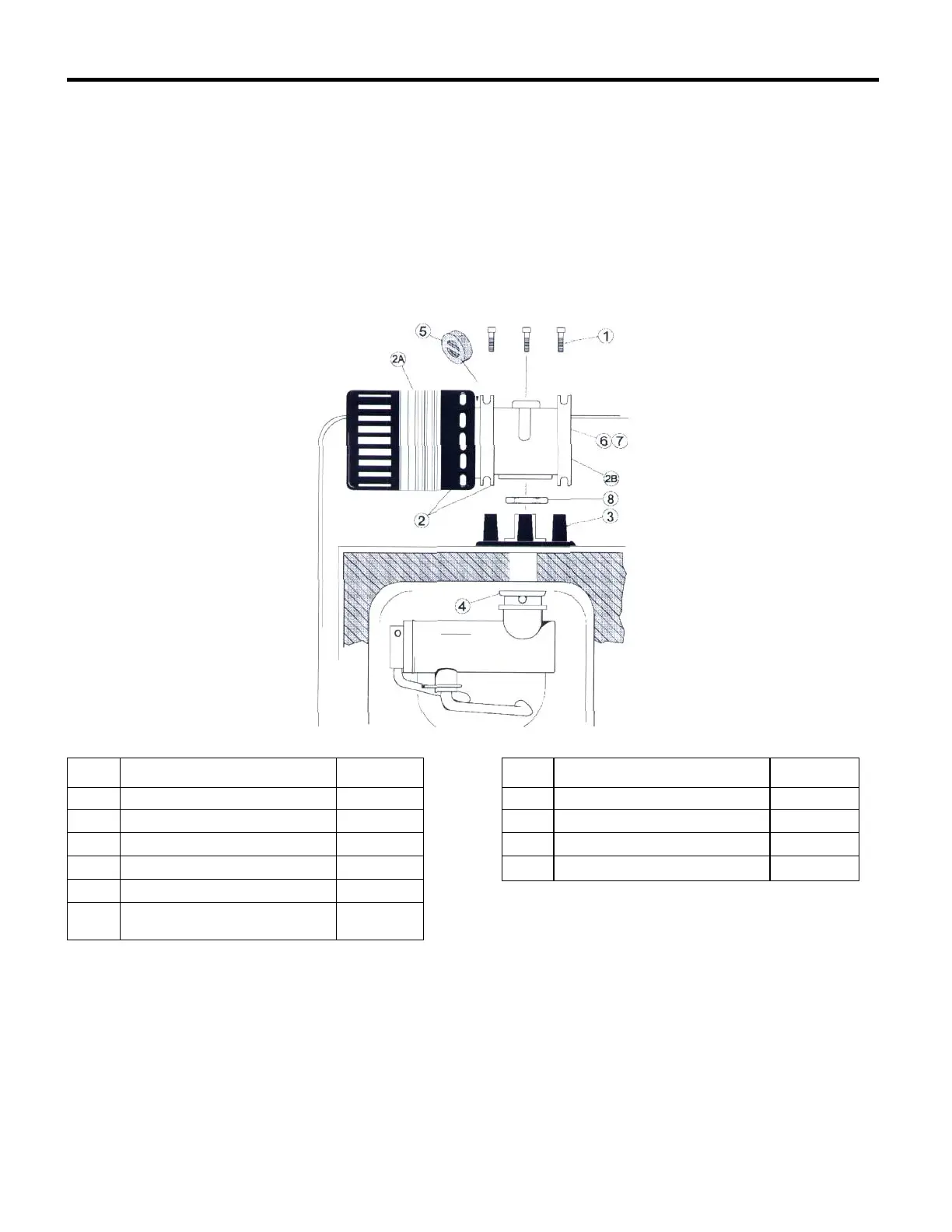

ITEM DESCRIPTION PART NO.
1 SCREW-1/4-20x 3/4 020128-2
2 MOTOR-REDUCER (50/60) 036955-34
2A MOTOR 049246-34
2B GEAR (50/60 HZ) 049247-34
3 MOUNT-MOTOR 036934
SLEEVE A.-MIX PUMP- PH71
4
8751,8754
X45012
ITEM DESCRIPTION PART NO.
5 COUPLING-MOTOR-FLEXIBLE 047936
6* SEAL-INPUT 048836
7* SEAL-OUTPUT 048837
8 NUT-PUMP SLEEVE 036933
*NOT SHOWN
