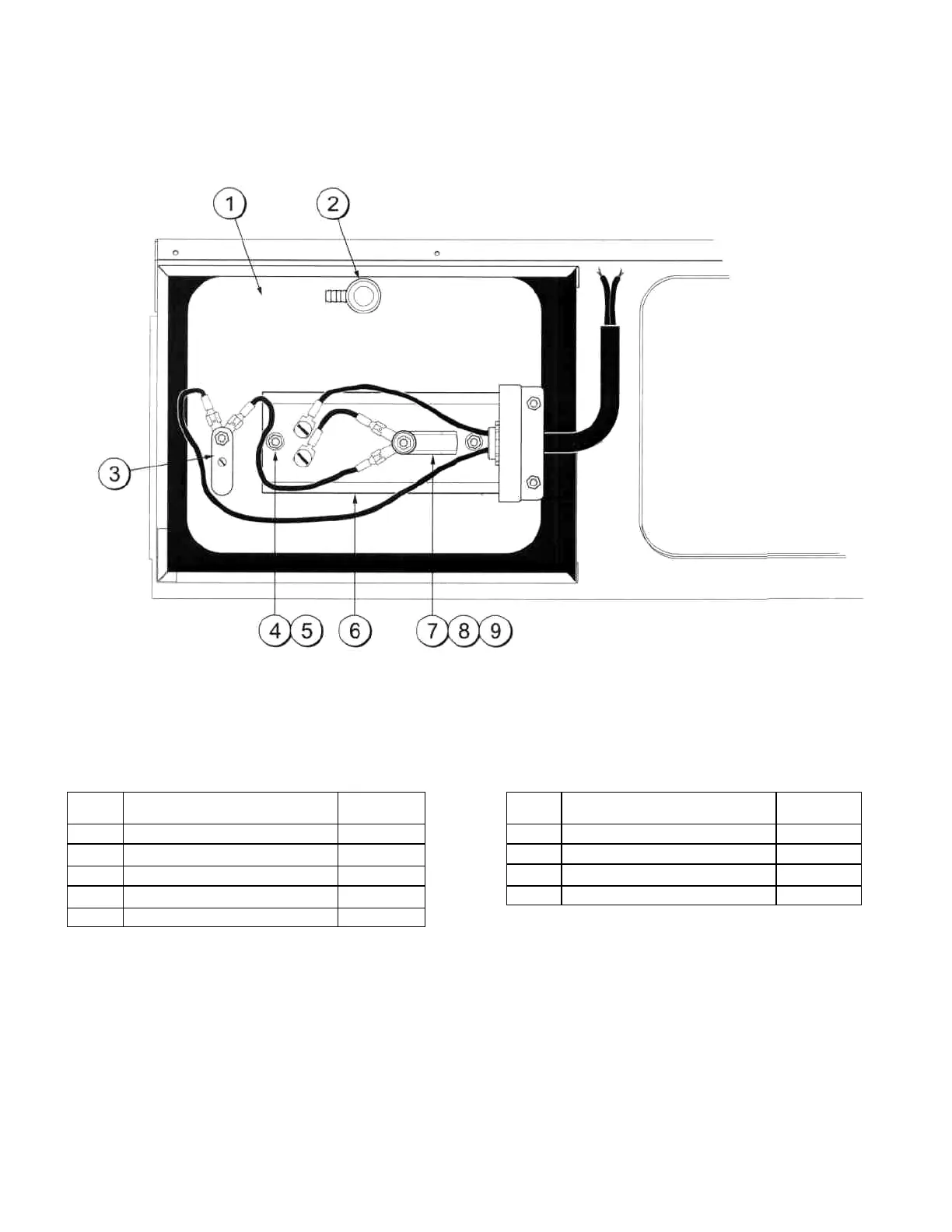

Rail A.-Syrup X42541
ITEM DESCRIPTION
PART
NO.
1
COVER A.-TANK
X42545
2
PLUG-DRAIN-WYOTT
023
953-5
3
THERMOSTAT-ADJ-SNAP
049993
4
WASHER-3/16 FLAT STEEL
005194
5
NUT-10-32 HEX
005598
ITEM DESCRIPTION
PART
NO.
6
H EATE R-STRIP-350W-240V
023953-4
7
THERMOSTAT-HI LIMIT-SNAP
049992
8
WASHER-#8 LOCK
007
543
9
NUT-8-32 HEX
000
969
56
58
Table of Contents
Table of Contents
2
Safety
4
Refrigerant
4
Model 336 Specifications
5
Model 338 Specifications
6
Model 339 Specifications
7
Model 750 Specifications
8
Models 751/8751 Specifications
9
Model 774 Specifications
11
Model 794 Specifications
12
Installation Instructions
13
Running Specifications
14
Generation II Control Logic Board
15
Service Tips for Generation II Boards
20
Control Overview
23
Pump Operation
24
General Troubleshooting Guide
25
Troubleshooting Pump Style Freezers
28
Electrical Trou Leshooting B
29
Section 4: Parts
30
Warranty Explanation
30
Model 336 Exploded View
31
Model 336 Panel Identification
33
Model 338 Exploded View
35
Model 338 Panel Identification
37
Model 339 Exploded View
39
Model 339 Panel Identification
41
Model 750 Exploded View
43
Model 750 Panel Identification
45
Model 751 Exploded View
47
Model 751 Panel Identification
49
Model 754 Exploded View
51
Model 754 Panel Identification
53
Model 774 Exploded View
55
Rail A-Syrup X42541
57
Model 774 Panel Identification
58
Model 794 Exploded View
60
Model 794 Panel Identification
62
Control a - X38324-27A (Model 336)
64
Control a - X42865-27 (Model 338)
65
Control a - X32963-27A (Models 339 & 754)
66
Control a - X52614-27 (Model 750)
68
Control a - X47194-27A (Models 751/8751)
69
Control a - X42603-27A (Model 774)
70
Control a - X48236-27A (Model 794)
71
Control a - X48237-27 (Model 794)
72
Box A-Cap & Relay - X48535-27
73
Box A-Cap & Relay - X51593-27 (Model 338)
74
Box A-Cap & Relay - X52665-27 (Model 339)
75
Box A-Cap & Relay - X50317-27 (Model 751)
76
Box A-Cap & Relay - X50297-27 (Model 754)
77
Box A-Cap & Relay - X50373-27 (Model 774)
78
Blower a X47833-27
79
Switch A-Draw X38547 (Models 338, 339, 754, 774, 794)
81
Switch A-Draw X33322-SP (Models 750, 751)
82
Air/MIX Pump-Soft Serve X45316-B
83
Models 336/338/339 Three-Spout Door a
84
Models 750/751 One-Spout Beater Door a
85
Models 754/774/794 Three-Spout Beater Door a
86
Pump A-Syrup 036623
87
Accessories
88
