OPERATING PROCEDURES
6-5
Model 8756
Operating Procedures
6
2. Lubricate the inside of the freezer door spouts, top
and bottom, and insert the draw valves from the
bottom of the door until the slot in the draw valves
comes into view.

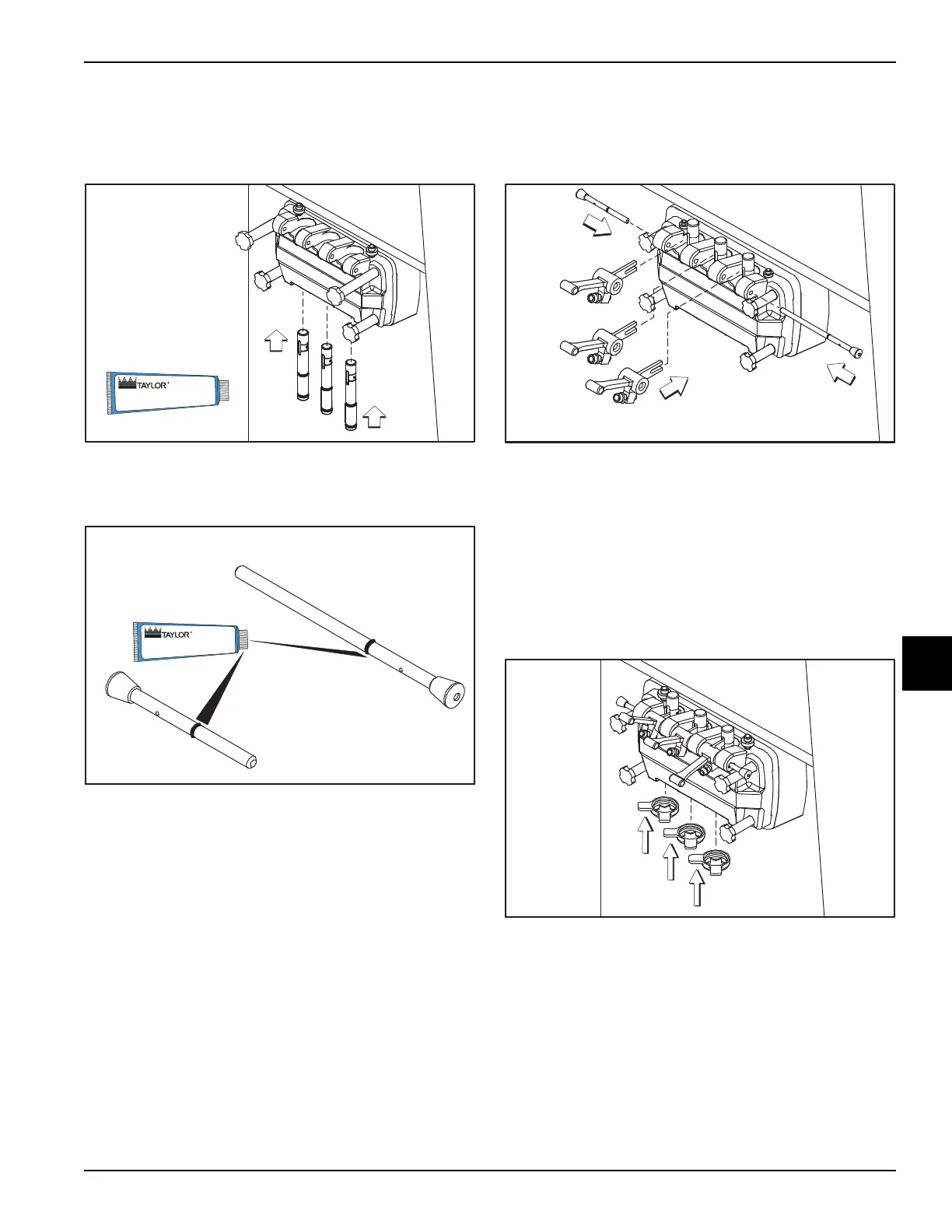

Figure 6-15
3. Lubricate and install the O-rings into the grooves on
the pivot pins.
Figure 6-16
4. Install the fork of each draw handle into the slot of the
draw valves, starting from the right. Insert the long
pivot pin through the right and middle draw handles.
Secure the left draw handle with the short pivot pin.
Figure 6-17
Note: This machine features adjustable draw handles
to provide the best portion control, giving a better
consistency quality to your product and controlling costs.
The draw handles can be adjusted for different flow rates.
See
Adjustable Draw Handle on page 5-3 for more
information on adjusting these handles.
5. Snap the design caps over the bottom of each door
spout.
Figure 6-18
11429
Apply the appropriate
Taylor approved food safe lubricant.
Apply the appropriate
Taylor approved food safe lubricant.
