Model C300Operating Procedures
Step 6
Align the flats on the end of the beater assembly
with the drive shaft. Make sure the beater assembly
locating pin is in position in the locating hole of the
drive shaft. Turn the beater slightly to be certain that
the beater is properly seated. When in position, the
beater will be approximately 3/8” inside the front of
the freezing cylinder.
Important: Failure to properly seat the beater
may cause damage to the beater and the door.

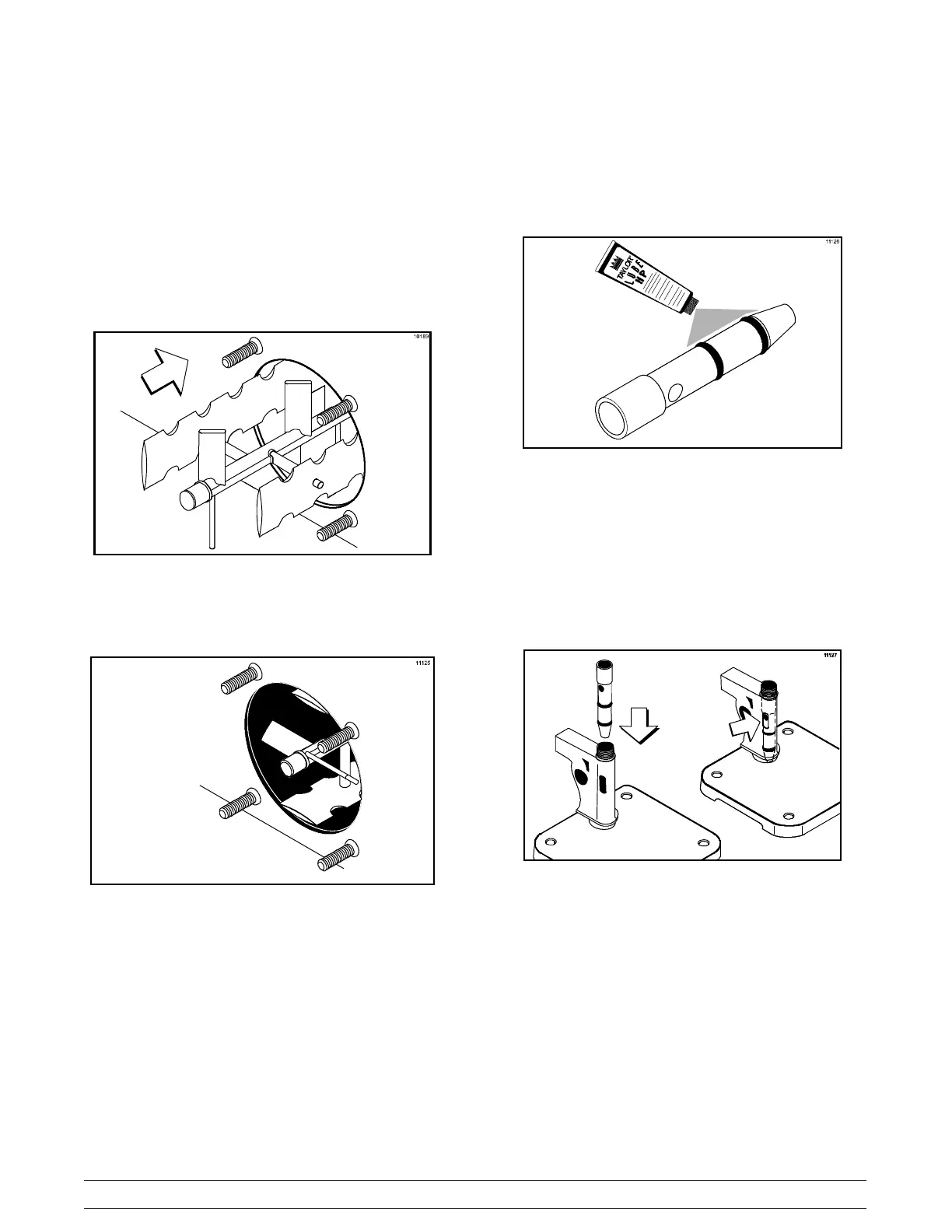

Figure 11
Note: The scraper blades on the beater assembly
should be in the 6 and 12 o’clock positions. This will
enable freezer door installation.
Figure 12
Step 7
Install the draw valve. Slide the two o--rings into the
grooves on the draw valve. Lubricate the o--rings
and the valve as illustrated below .
Figure 13
Step 8
Insert the draw valve into the freezer door spout
from the front of the unit. The valve is properly
installed when the hole in the draw valve is visible in
the slot of the freezer door spout.
Figure 14
