Taylor C300 User Manual

21
Model C300 Operating Procedures

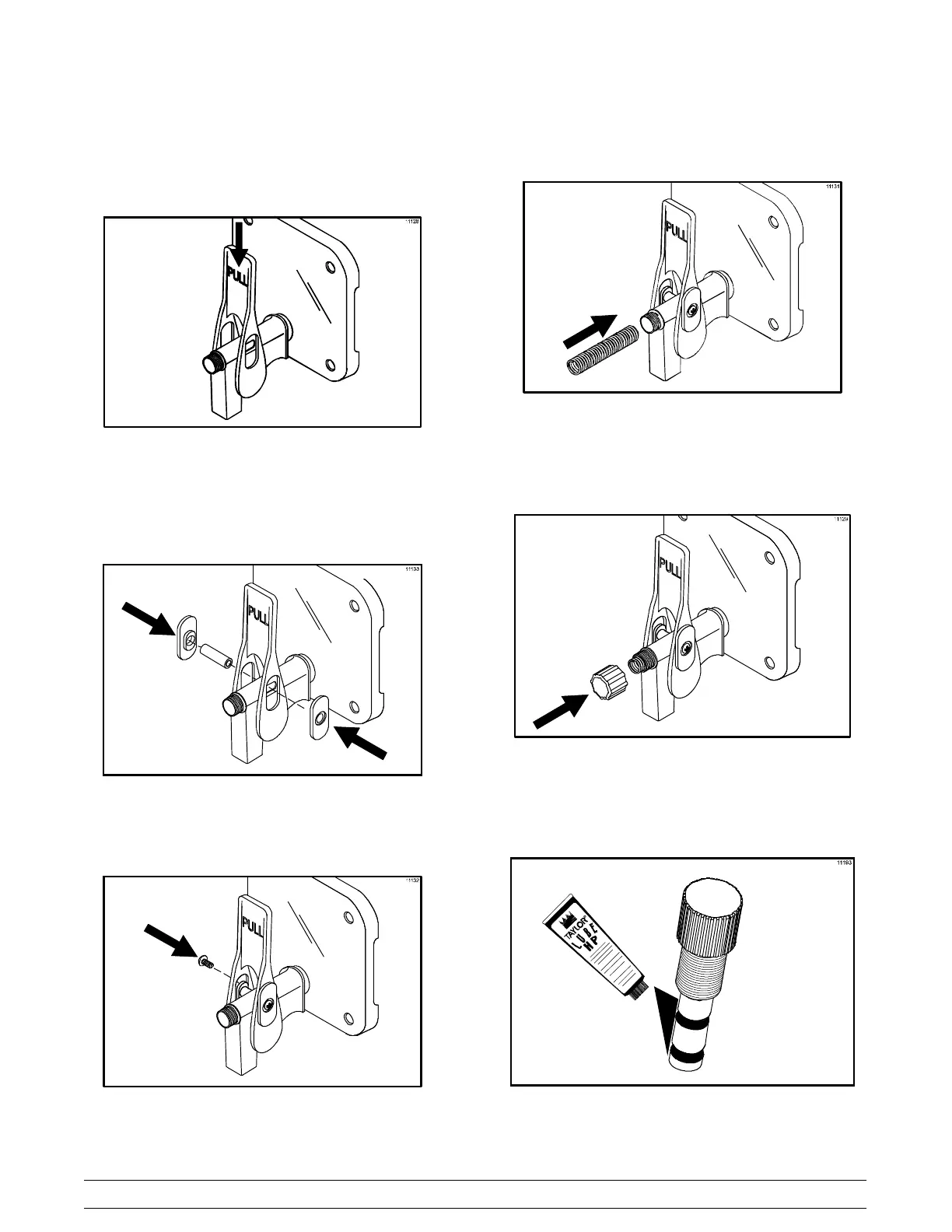

Step 9
Snap the draw valve handle onto the door spout.
Align the hole in the draw valve with the slot in the
draw handle.
Figure 15
Step 10
Slide the pivot pin through the draw handle and into
the draw valve. Place the draw handle slide over the
opening in the draw handle and the pivot pin.
Figure 16
Step 11
Secure the assembly with screws.
Figure 17
Step 12
Insert the spring into the front of the door spout.
Figure 18
Step 13
Place the threaded cap on the end of the draw valve
cavity. Tur n the cap clockwise until it is secure.
Figure 19
Step 14
Place the two o--rings on the prime plug and lightly
lubricate.
Figure 20
