Models C708 & C716Operator Parts Identification

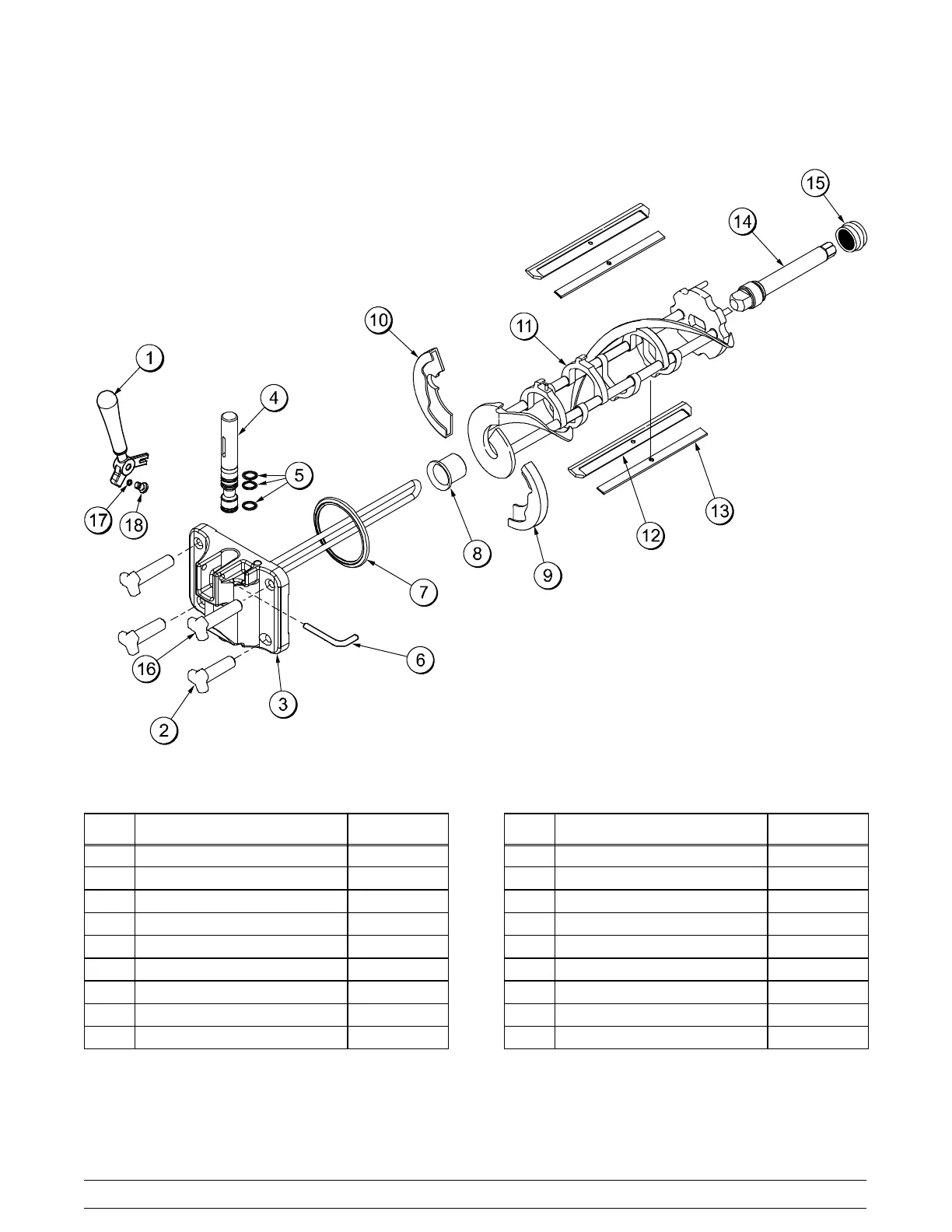

Model C708 Single Spout Door and Beater Assembly
Figure 3
ITEM DESCRIPTION PART NO.
1 HANDLE A.-DRAW-WELDED X56246
2 NUT-STUD-BLACK 2.563“ 058764
3 DOOR A.-W/BAFFLE X57332-SER
4 VALVE A.-DRAW X55820
5 O-RING-DRAW VALVE-S.S. 014402
6 PIN-HANDLE-SS 055819
7 GASKET-DOOR HT 4”-DBL 048926
8 BEARING-FRONT-SHOE 050348
9 SHOE-FRONT HELIX *REAR* 050346
ITEM DESCRIPTION PART NO.
10 SHOE-FRONT HELIX *FRONT* 050347
11 BEATER A.-3.4QT-1 PIN X46231
12 BLADE-SCRAPER-PLASTIC 046235
13 CLIP-SCRAPER BLADE 7.00 046236
14 SHAFT-BEATER 056078
15 SEAL-DRIVE SHAFT 032560
16 NUT-STUD-BLACK 3.250” 058765
17 O-RING-1/4 OD X .070W 50 015872
18 SCREW-ADJUSTMT-5/16-24 056332
