Models C708 & C716 Operating Procedures
150421

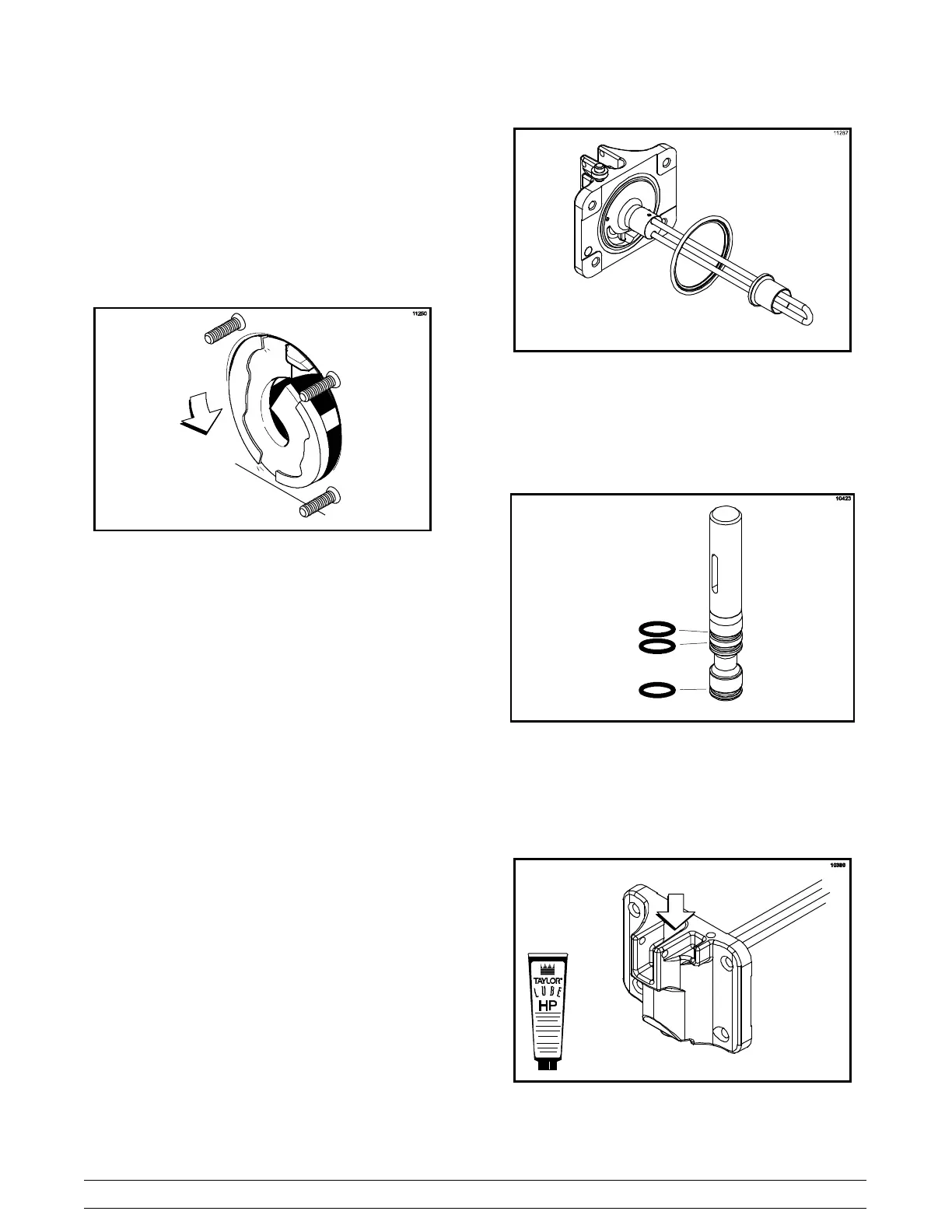

Step 10
Slide the beater assembly the rest of the way into
the freezing cylinder.
Make sure the beater assembly is in position over
the drive shaft by turning the beater slightly until the
beater is properly seated. When in position, the
beater will not protrude beyond the front of the
freezing cylinder. (See Figure 18.)
Figure 18
Repeat these steps for the other side of the
Model C716.
Freezer Door Assembly
The assembly of the C708 freezer door is different
from the C716 freezer door. Please follow the
appropriate instructions for your machine.
Model C708 Freezer Door Assembly
Step 1
Before assembling the freezer door, check the
following for any nicks, cracks, or signs of wear:
door bearing, door gasket, draw valve, o-rings, and
all sides of the door assembly, including the inside of
the draw valve bore. Replace any damaged parts.
Step 2
Place the door gasket into the groove on the back of
the freezer door. Slide the front bearing over the
baffle rod so the flanged edge is against the door.
DO NOT lubricate the gasket or bearing.
(See Figure 19.)
Figure 19
Step 3
Slide the three o-rings into the grooves on the draw
valve and lubricate. (See Figure 20.)
Figure 20
Step 4
Lightly lubricate the inside of the top of the freezer
door valve cavity. (See Figure 21.)
Figure 21

Taylor C716 Specifications

General

Hopper Capacity	20 quarts (18.9 liters)
Separate Hopper Refrigeration (SHR)	Yes
Air Cooled	Yes
Freezing Cylinder	One
Mix Hopper	One
Electrical	208-230/60/1
Motor	1.5 HP
Indicator Lights	Mix Low
Refrigeration System	Air Cooled
