Taylor C716 User Manual

34
Models C708 & C716Operating Procedures
150421
USE EXTREME CAUTION when handling
the beater assembly. The scraper blades are very
sharp and may cause injury.

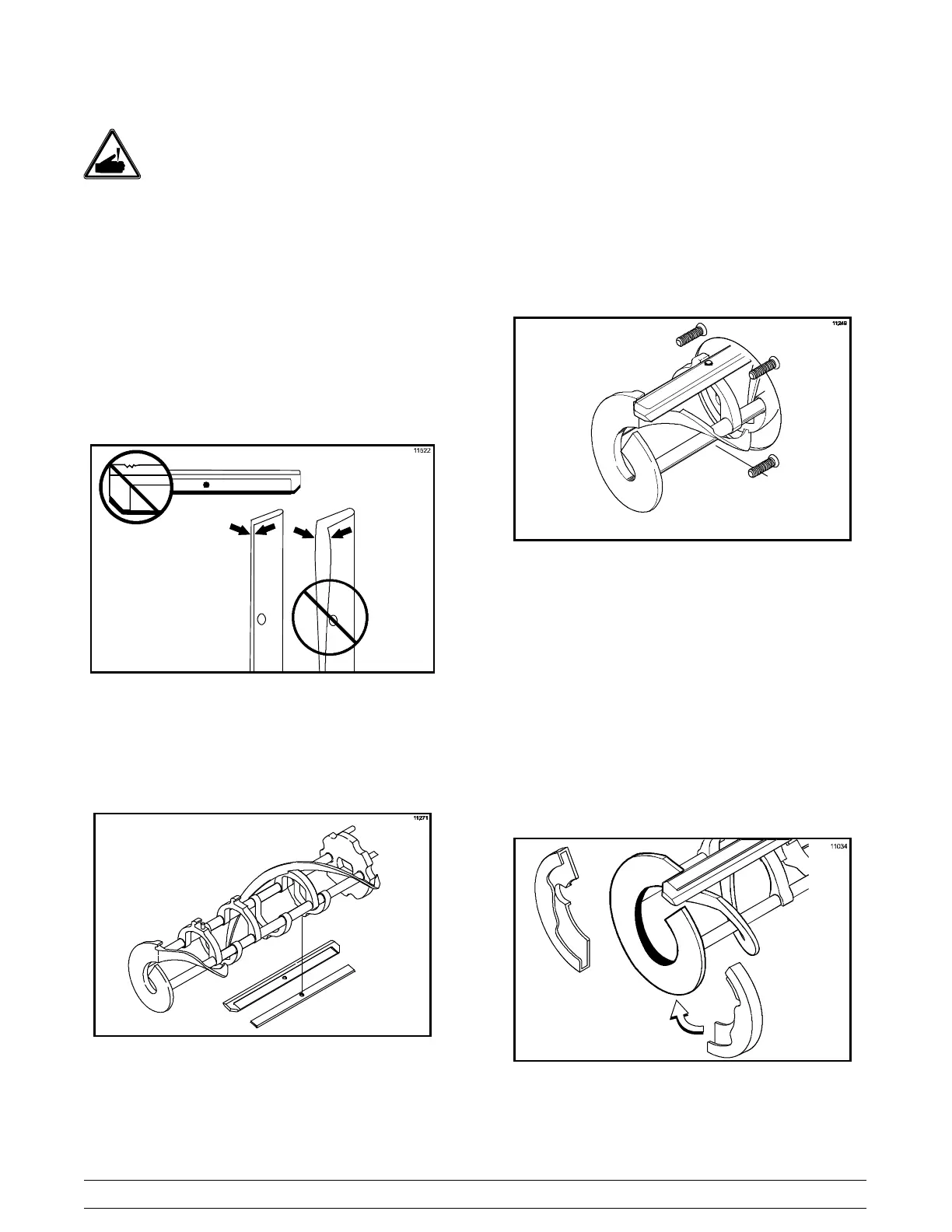

Step 6
Before installing the beater assembly, check the
scraper blades and clips.
Check the scraper blades for any signs of wear or
damage. If a scraper blade is nicked or worn,
replace both blades.
Check the scraper blade clips to make sure they are
not bent and the slot is even for the entire length of
the clip. Replace any damaged clips.
Figure 14
If the blades and clips are in good condition, install
the scraper blade clips over the scraper blades.
Place the rear scraper blade over the rear holding
pin on the beater. (See Figure 15.)
Figure 15
Note: Scraper blades should be replaced every 3
months.
Note: The hole on the scraper blade must fit
securely over the pin to prevent costly damage.
Step 7
Holding the rear blade on the beater, slide it into the
freezing cylinder halfway. Install the front scraper
blade over the front holding pin. (See Figure 16.)
Figure 16
Step 8
Before installing the beater shoes, check the shoes
for any nicks, cracks, or signs of wear. If any defects
are present, replace the beater shoes.
Step 9
If the beater shoes are in good condition, install the
beater shoes. (See Figure 17.)
Figure 17

Taylor C716 Specifications

General

Hopper Capacity	20 quarts (18.9 liters)
Separate Hopper Refrigeration (SHR)	Yes
Air Cooled	Yes
Freezing Cylinder	One
Mix Hopper	One
Electrical	208-230/60/1
Motor	1.5 HP
Indicator Lights	Mix Low
Refrigeration System	Air Cooled
