Models C708 & C716Operator Parts Identification

140312

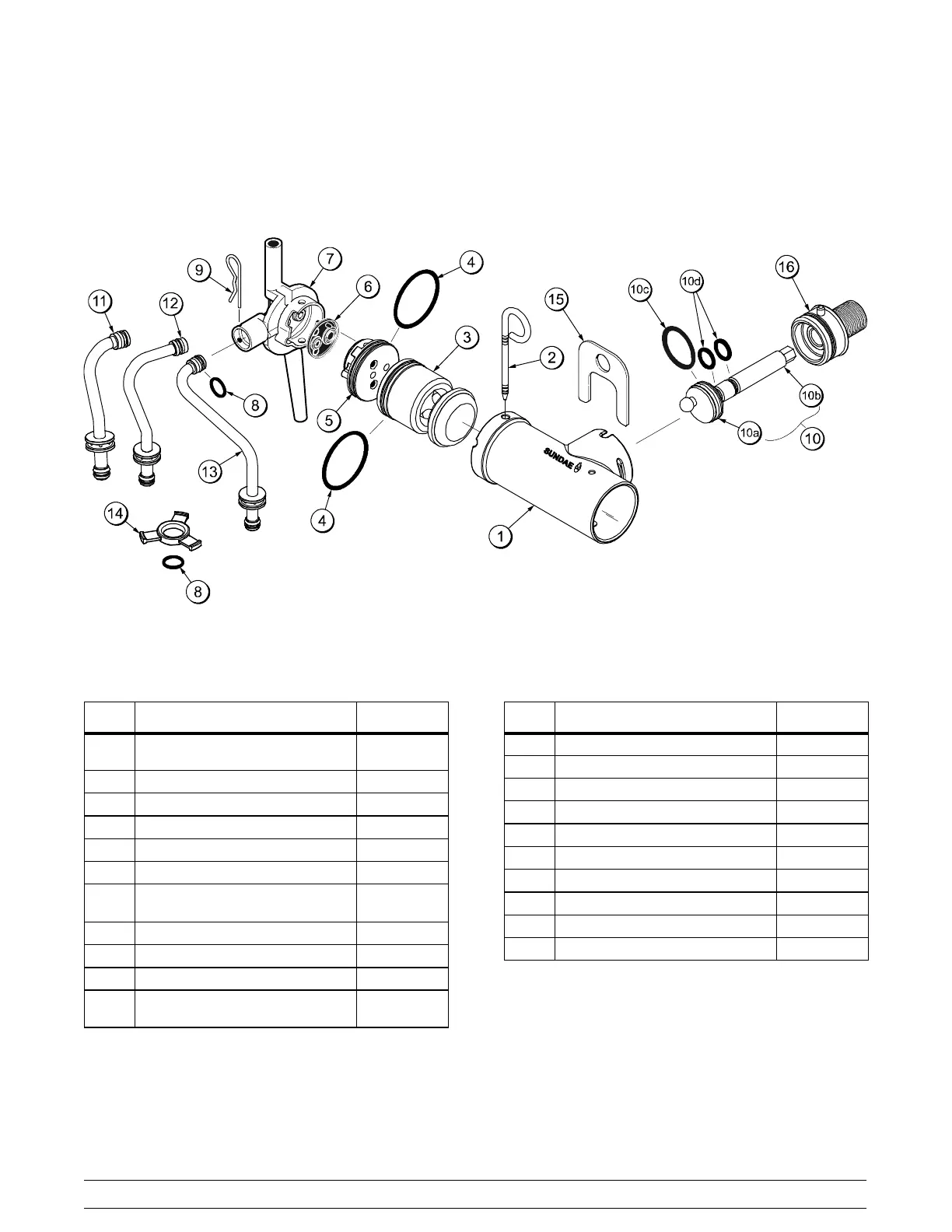

X57029-XX Pump A. - Mix Simplified (Models C708 & C716)

Figure 5

ITEM DESCRIPTION PART NO.

1-7 PUMP ASSEMBLY - MIX

SIMPLIFIED SOFT SERVE

X57029-XX*

1 CYLINDER-PUMP-HOPPER-SS 057943

2 PIN-RETAINING X55450

3 PISTON-PUMP-SIMPLIFIED 053526

4 O-RING 2-1/8” OD - RED 020051

5 CAP-VALVE BODY SS 056874-XX

6 GASKET-SIMPLIFIED PUMP

VALVE

053527

7 ADAPTOR - MIX INLET SS RED 054825

8 O-RING - 11/16 OD - RED 016132

9 PIN - COTTER 044731

10 SHAFT A.-DRIVE-MIX PUMP-

HOPPER

X41947

ITEM DESCRIPTION PART NO.

10a CRANK-DRIVE 039235

10b SHAFT-DRIVE 041948

10c O-RING 1-3/4 OD X .139W 008904

10d O-RING 1/2 ID X .139W 048632

11 TUBE A.-FEED HOPPER (C708) X56521

12 TUBE A.-FEED RIGHT (C716) X59809

13 TUBE A.-FEED LEFT (C716) X59808

14 RING-CHECK .120 OD 056524

15 CLIP-MIX PUMP RETAINER 044641

16 SLEEVE A.- MIX PUMP *HT X44761

*NOTE: THE STANDARD PUMP X57029-XX IS -14.

OVERRUN CAN BE CHANGED HIGHER OR LOWER

BY SUBSTITUTING THE CAP (056874-XX) WITH

CAPS AVAILABLE -1 THROUGH -20. THE HIGHER

THE DASH (-) NUMBER, THE HIGHER THE

OVERRUN.
